1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
full color
-
Panel Size:
-
960mm*960mm(3.15ft*3.15ft)
-
Place of Origin:
-
China,Shenzhen
-
Model Number:
-
out-960-P5.7
-
Pixel Pitch:
-
5.7
-
Lifespan (hours):
-
100000hrs
-
HS Code:
-
8528591090
-
Product name:
-
Led Display
-
LED Type::
-
SMD1921
-
Viewing Angle::
-
≥160(H)/≥160(V)
-
warranty::
-
2years
-
IP rate::
-
IP65
-
Certificate::
-
CE ROHS FCC ISO9001 CCC
-
Cabinet Material::
-
Die-casting Alumimum
-
Brightness::
-
6500MCD
-
Refresh rate::
-
1920/3840
-
Life::
-
>100000hrs
Quick Details
-
Application:
-
Indoor, outdoor
-
Type:
-
LED
-
Brand Name:
-
Abxled
-
Color:
-
full color
-
Panel Size:
-
960mm*960mm(3.15ft*3.15ft)
-
Place of Origin:
-
China,Shenzhen
-
Model Number:
-
out-960-P5.7
-
Pixel Pitch:
-
5.7
-
Lifespan (hours):
-
100000hrs
-
HS Code:
-
8528591090
-
Product name:
-
Led Display
-
LED Type::
-
SMD1921
-
Viewing Angle::
-
≥160(H)/≥160(V)
-
warranty::
-
2years
-
IP rate::
-
IP65
-
Certificate::
-
CE ROHS FCC ISO9001 CCC
-
Cabinet Material::
-
Die-casting Alumimum
-
Brightness::
-
6500MCD
-
Refresh rate::
-
1920/3840
-
Life::
-
>100000hrs
Products Description
ABXLED outdoor Series Features & Advantages
◆3 times aging process.
◆Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test.
◆Long service time and low attenuation by applying dual channels for heat dissipation.
◆High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function.
◆No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
Product Paramenters
|
ITEM
|
UNIT
|
F960-5
|
F960-6
|
F960-8
|
F960-10
|
|||
|
Pixel Pitch
|
mm
|
5.7
|
6.667
|
8
|
10
|
|||
|
Pixel Matrix Per
|
Pixel/sqm
|
30,625
|
22500
|
15625
|
10000
|
|||
|
Pixel Configuration
|
N/A
|
SMD1921
|
SMD2727
|
SMD3535
|
SMD3535
|
|||
|
Brightness
|
nits
|
≥6500
|
≥6500
|
≥6500
|
≥6500
|
|||
|
Scan
|
N/A
|
1/8
|
1/6
|
1/4
|
1/2
|
|||
|
Cabinet Resolution
|
Pixel
|
168X168
|
144×144
|
120×120
|
96×96
|
|||
|
Power Con.(Max / Avg)
|
W/sqm
|
800/320
|
800/320
|
800/320
|
800/320
|
|||
|
Module Dimension
|
mm
|
480*320
|
480*320
|
480*320
|
480*320
|
|||
|
Cabinet Dimension
|
mm
|
960*960
|
960*960
|
960*960
|
960*960
|
|||
|
Cabinet Weight
|
KG
|
32KG
|
32KG
|
32KG
|
32KG
|
|||
|
Service Access
|
N/A
|
Front
|
Front
|
Front
|
Front
|
|||
|
Refresh Rate
|
Hz
|
1920/3840
|
1920/3840
|
1920/3840
|
1920/3840
|
|||
|
Grey Scale (bit)
|
bit
|
14
|
14
|
14
|
14
|
|||
|
IP Rate
|
IP
|
IP65
|
IP65
|
IP65
|
IP65
|
|||
|
Life span
|
hrs
|
100000 hrs
|
100000 hrs
|
100000 hrs
|
100000 hrs
|
|||
|
Working Temperature
|
℃
|
-20-60 ℃
|
-20-60 ℃
|
-20-60 ℃
|
-20-60 ℃
|
|||
|
Storage Temperature
|
℃
|
-20-60 ℃
|
-20-60 ℃
|
-20-60 ℃
|
-20-60 ℃
|
|||
|
Power Supply
|
V
|
AC100-240V(50-60Hz)
|
|
|
|
|||
|
Color temperature
|
N/A
|
3000-10000K(adjustable)
|
|
|
|
|||
Products Show
Installation Instructions
Where is LED display installed?
Pillar / Pole LED display
Wall mounted installation
Ultra High / Low Temperature
ABXLED outdoor series designed for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
High Temperature
Low Temperature
SMD Performance and View Angle
Better contrast ratio and viewing performance. Wide viewing angle increasing its value by covering more viewing.
Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball.
ABXLED supply more design and more solutions.
How can we make Energy Saving LED display 30%?

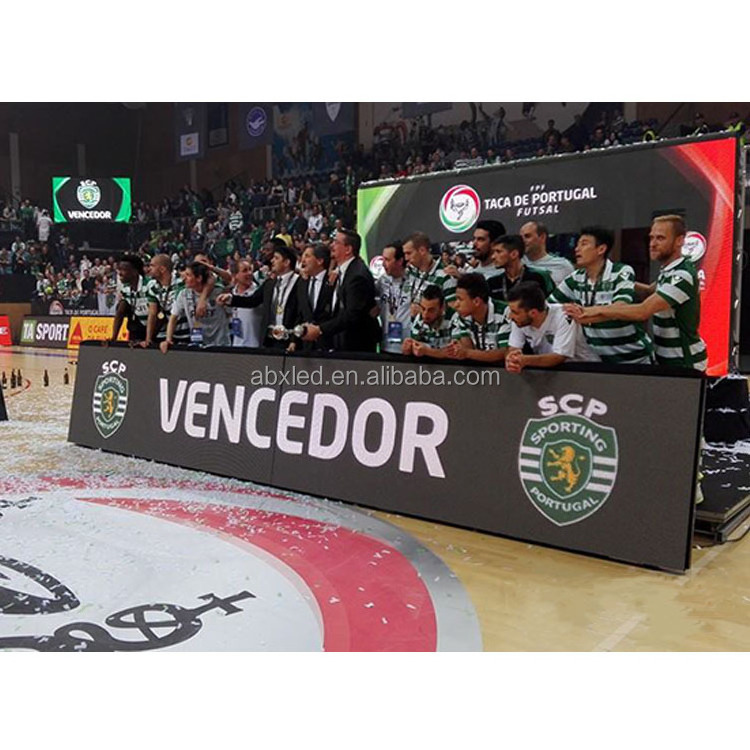

LED display case
