Quick Details
-
Brand Name:
-
Huadong
-
Model Number:
-
Control cable
-
Product name:
-
Control Cable
-
Voltage:
-
450/750V,0.6/1KV
-
Type:
-
KVV/KVVP/KVVP22/KVVP32/KVVRP
-
Standard:
-
IEC 60227,GB9330,BS,VDE ect
-
Conductor:
-
Copper
-
Insulation/Jacket:
-
PVC
-
MOQ:
-
100Meter
-
Sample:
-
Availabe
-
Warranty:
-
1 Year
Quick Details
-
Conductor Material:
-
Copper
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong
-
Model Number:
-
Control cable
-
Product name:
-
Control Cable
-
Voltage:
-
450/750V,0.6/1KV
-
Type:
-
KVV/KVVP/KVVP22/KVVP32/KVVRP
-
Standard:
-
IEC 60227,GB9330,BS,VDE ect
-
Conductor:
-
Copper
-
Insulation/Jacket:
-
PVC
-
MOQ:
-
100Meter
-
Sample:
-
Availabe
-
Warranty:
-
1 Year
Product Description

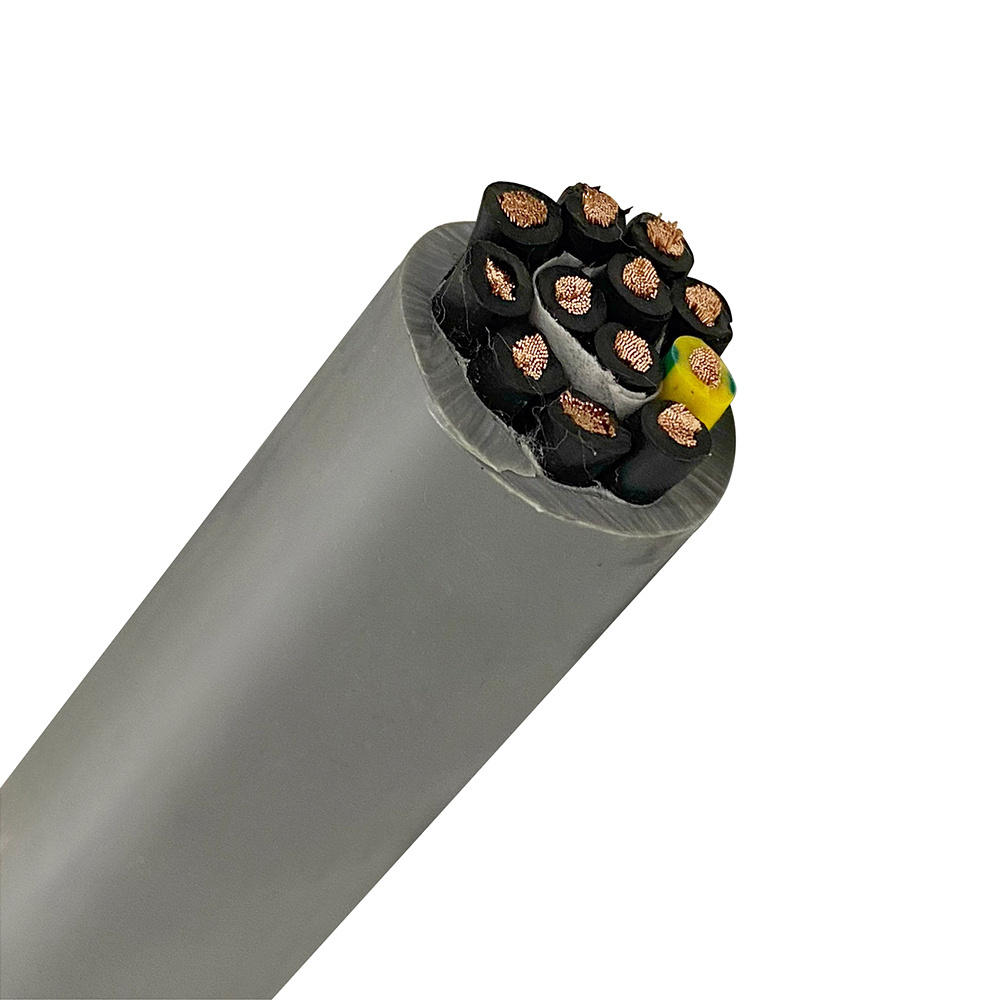

Copper Conductor 4 5 8 9 10 12 16 19 24 37 Multi Core YY Kvv Kvvp Kvvrp Shield Armored PVC Control Cable Wire
Rated Voltage : 450/750V,0.6/1KV
Model Type : KVV/KVVP/KVVP22/KVVP32/KVVRP
Conductor Material : Copper
Insulation Material : PVC/XLPE
Working Temperature : 0 °C to 70 °C
Standard : IEC 60227,GB9330,BS,VDE or other standards
Rated Voltage : 450/750V,0.6/1KV
Model Type : KVV/KVVP/KVVP22/KVVP32/KVVRP
Conductor Material : Copper
Insulation Material : PVC/XLPE
Working Temperature : 0 °C to 70 °C
Standard : IEC 60227,GB9330,BS,VDE or other standards
Application : For interior electrical installation in a dry or wet environment, particularly for fixed and installation in the
industrial use of the environment without the stress of sustained-release or forcibly guided free on the continuous
reciprocating motion
industrial use of the environment without the stress of sustained-release or forcibly guided free on the continuous
reciprocating motion
Specification
|
Type
|
Name
|
Application Site
|
|
KVV
|
Copper conductor PVC insulated and sheathed control cable
|
For laying indoors, in trenches, and in ducts for the fixed installation
|
|
KVVP
|
Copper conductor PVC insulated & sheathed copper wire braiding screened control cable
|
For laying indoors, in trenches, and in ducts for the fixed installation
|
|
KVVP2
|
Copper conductor PVC insulated and sheathed control cable with steel tape shied
|
For laying indoors, in trenches, and in ducts for the fixed installation
|
|
KVV22
|
Copper conductor PVC insulated and sheathed control cable with steel tape armoured
|
For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation
|
|
KVVR
|
Copper conductor PVC insulated flexible control cable
|
For laying indoors, movable and flexible
|
|
ZR-KVVP
|
Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable
|
Fixed laying indoors with capability of moving and screening
|
|
ZR-KVV
|
Copper conductor PVC insulated and sheathed flame retardant control cable
|
For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
|
|
ZR-KVVP2
|
Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield
|
For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
|
|
ZR-KVV22
|
Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured
|
For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear
beavier extermal mechanical force and for fixed installation |
|
ZR-KVVR
|
Copper conductor PVC insulated and sheathed flame retardant flexible control cable
|
For laying indoors, and the cable should be flame-retardant flexible and movable
|
