Quick Details
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
sanjing
-
Model Number:
-
1
-
Product name:
-
self-adhesive low haze pdlc film smart tint pdlc switchable film
-
Color:
-
clear and tinted
-
Keywords:
-
self-adhesive low haze pdlc film smart tint pdlc switchable film
-
Size:
-
300mm*300mm-2440mm*3660mm
-
Packing:
-
plywood packing
-
Certificate:
-
CCC/ISO9001/CE/SGS
-
Sample:
-
Free
-
Edge:
-
Polished
Quick Details
-
Application:
-
Courtyard, Leisure Facilities, Supermarket, Farmhouse, Laundry, Workshop, Kitchen, School, Bathroom, Babies and kids, Bedroom, Exterior, Dining, Warehouse, Home Office, Staircase, Outdoor, Living Room, Park, Wine Cellar, Office Building, Storage & Closet, Gym, Mall, Entry, Apartment, Sports Venues, Basement, Hospital, Villa, Hotel, Home Bar, Hall, Garage & Shed
-
Usage:
-
Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Lighting, Instrument
-
Thickness:
-
3mm-19mm
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
sanjing
-
Model Number:
-
1
-
Product name:
-
self-adhesive low haze pdlc film smart tint pdlc switchable film
-
Color:
-
clear and tinted
-
Keywords:
-
self-adhesive low haze pdlc film smart tint pdlc switchable film
-
Size:
-
300mm*300mm-2440mm*3660mm
-
Packing:
-
plywood packing
-
Certificate:
-
CCC/ISO9001/CE/SGS
-
Sample:
-
Free
-
Edge:
-
Polished
High Transparency self-adhesive low haze pdlc film smart tint pdlc switchable film
Switchable Glass
-- is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal
pdlc switchable film
between two layers of glass and two layers of conductive interlayers. This
pdlc switchable film

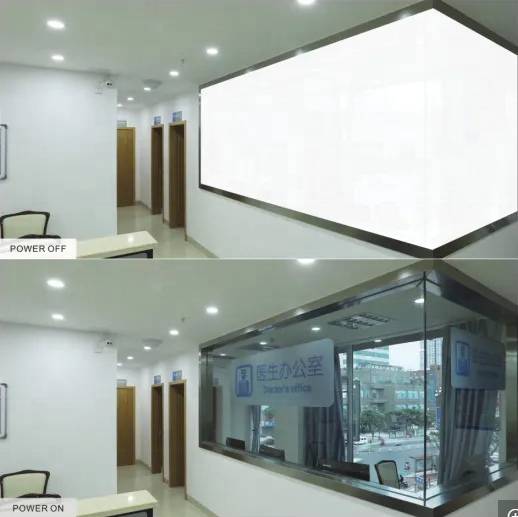

is what allows you to change the visual appearance of the glass from opaque (translucent) to clear (transparent).
When electricity is applied to the
pdlc switchable film
the liquid crystals line up, changing the
pdlc switchable film
from opaque to clear. Conversely when electricity is removed, the liquid crystals return to their normal scattered positions changing the glass back to opaque.
San Jing Smart Glass Feature
1) Transparent switchable smart glass
2) Anti-UV: smart glass can block over 90% ultraviolet radiation
3) Soundproof: Smart glass can decrease the noise level reach 35dB
4) Security: Smart glass will not hurt people if it were broken, because the broken glass shards still stick on the PDLC film.
5) Customized smart glass is available.
Technical Specifications
| Optical Properties | Parallel Light Transmission | ON | >81% |
| OFF | <10% | ||
| Visible Light Transmission | ON | >80% | |
| OFF | < 5% | ||
| Visual Angle | ON | 150 degree | |
| UV Blocking | ON/OFF | >97% | |
| Electrical Properties | Operating Voltage | ON | 48 volts A.C. |
| Frequency | ON | 50~60HZ | |
| Current | ON | 2 mA/sqm | |
| Power Consumption | ON | 8 W/sqm | |
| Switching Time | ON==>OFF | Tr.2ms | |
| OFF==>ON | Td.10ms | ||
| Specification | Glass Type | Clear glass/ultra clear glass/low-e glass/tinted glass/patterned glass/ar glass | |
| Thickness | 3-10mm | ||
| Max Size | 1600mm x 3660mm | ||
| Color | White/yellow/brown/gray/Blue,etc | ||
| Other index | Working Temperature | -30~80 °C | |
| Life time | > 50000 hr | ||
How it Works
San Jing Glass provides complete pdlc switchable film already with bus bar, customers just directly install to where they wanted. Pdlc switchable film has longer life than Self-adhesive smart film, since the pdlc switchable film is well protected by glass on both sides. Our pdlc switchable film is laminated with tempered glass, finished product more security and safety.
