50 inch big poultry farm tunnel ventilation exhaust fan ventilation fans for mining greenhouse square type

50 inch big poultry farm tunnel ventilation exhaust fan ventilation fans for mining greenhouse square type

FOB Reference Price: Get Latest Price

≥1 Sets

US $199

≥100 Sets

US $197

≥300 Sets

US $195

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Online support

Place of Origin:: Shandong, China

Brand Name:: Honglian

Model Number:: HL-1380

Product name:: Ventilation Exhaust Fan

Material:: Stainlesss Steel

Bearing Type:: Two Ball Bearing

Fan type:: Industrial Cooling Fan

Brand:: Honglian

MOQ:: 1 Set

Blade:: STAINLESS STEEL 6PCS

Feature:: Large Air Flow

Motor Brand:: China Customized

Installation:: Wall Mount Ventilation Fan

Quick Details

Applicable Industries:: Farms, industy workshop, Factory, Poultry farm, Poultry house, Chicken house

Electric Current Type:: AC

Mounting:: Wall Fan

After-sales Service Provided:: Online support

Place of Origin:: Shandong, China

Brand Name:: Honglian

Model Number:: HL-1380

Product name:: Ventilation Exhaust Fan

Material:: Stainlesss Steel

Bearing Type:: Two Ball Bearing

Fan type:: Industrial Cooling Fan

Brand:: Honglian

MOQ:: 1 Set

Blade:: STAINLESS STEEL 6PCS

Feature:: Large Air Flow

Motor Brand:: China Customized

Installation:: Wall Mount Ventilation Fan

304 stainless steel 50 inch big poultry farm tunnel ventilation exhaust fan ventilation fans for mining greenhouse square type , greenhouse fan agricultural greenhouse axial flow exhaust fan

Products Description

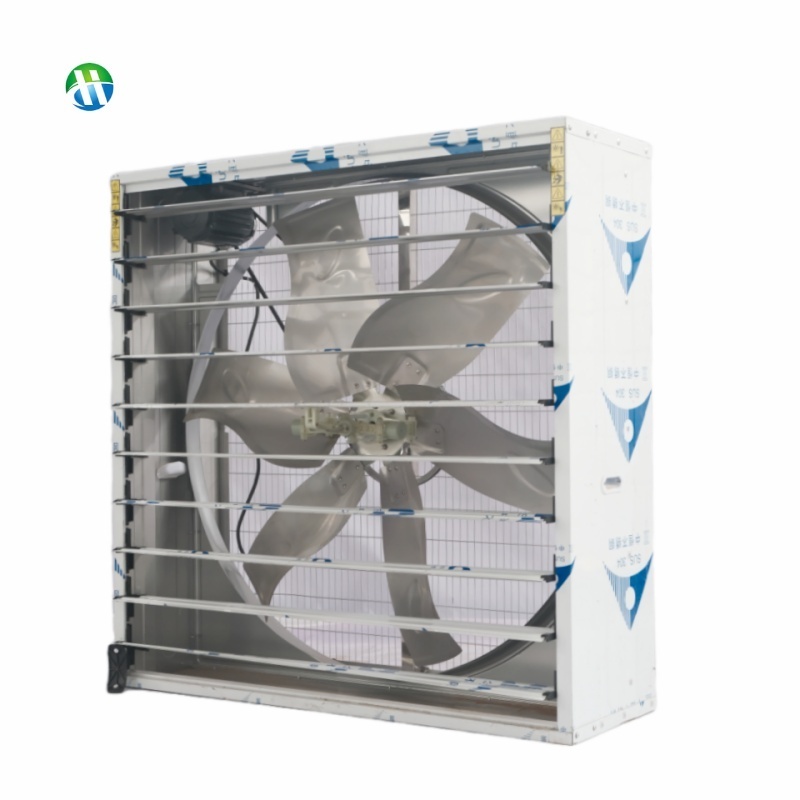

Honglian 304 stainless steel exhaust fan

Honglian Exhaust fan is the use of air convection, negative pressure ventilation cooling principle, is a natural inhalation of fresh air from the installation site - the door or window, the indoor hot air quickly forced out of the outdoor, any poor ventilation can be improved.Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Model	Drive	Blades Diameter(mm)	Blades Rotational Speed(rpm)	Motor Rotational Speed(rpm)	Air flow m³/hr	Input power(W)	Size（mm）
HL-480	Direct	380	1400	1400	3000	180	480480370
HL-600	Direct	500/20‘’	1400	1400	5600	370	600600370
HL-800	Belt	710/28‘’	660	1400	18000	370	800800400
HL-900	Belt	750/30‘’	630	1400	20000	550	900900400
HL-1000	Belt	900/36‘’	610	1400	25000	750	10001000400
HL-1100	Belt	1000/40‘’	600	1400	32000	750	11001100400
HL-1220	Belt	1100/44‘’	460	1400	38000	750	12201220400
HL-1380	Belt	1270/50‘’	457	1400	42000	1100	13801380400
HL-1530	Belt	1400/56‘’	320	1400	55000	1500	15301530400

Main Feature:
1) 304 stainless steel never rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

1. Adjust the horizontal and vertical , keeping the fan blade running smoothly.
2. After fixing the fan, the remaining gap need to be sealed.
3. The Expansion screws and Self tapping screw can be used to fix.

Case Display

Our exhaust fan are widely used in agriculture and industry's ventilation and cooling system. For example, animal husbandry , poultryhouse , greenhouse ,factory workshop, textile, chemical and so on. Greenhouse hammer fan Exhaust Fan Ventilation Cooling Fan For Agriculture Greenhouse poultry farm. 1380mm 304 stainless steel industrial workshop exhaust fan / poultry farm air cooling fans / greenhouse wall mounted hot air extrotar

Details Images

Frame: Thicken 304 stainless steel

Greenhouse hammer fan Exhaust Fan Ventilation Cooling Fan For Agriculture Greenhouse poultry farm
We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 304 stainless steel
Advantage:
High strength,Strong corrosion resistance

Fan blade

Greenhouse hammer fan Exhaust Fan Ventilation Cooling Fan For Agriculture Greenhouse poultry farm The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust, attractive and durable.

Note: Blade material also have galvanized sheet, aluminum alloy for option.

Heavy Hammer Drop

The heavy hammey material are High strength Nylon PA66 Guide Rod: 304 stainless steel with special material outside, high strength, no rust.
Rivet: 304 stainless steel , wear-resisting

Advantage:It can keep the shutters open at complete 90 degree and closed completely

Bearing

We are used import good quality famous brand bearing, which have high strength ,low noise ,maintenance free and dustproof and waterproof, have long service life.

Safety net

The fan protective safety net is made by hot-dip galvanized wire with electrostatic plastic spraying. Not easy to get rust,beautiful and durable.

Motor

Greenhouse hammer fan Exhaust Fan Ventilation Cooling Fan For Agriculture Greenhouse poultry farm 100% pure copper wire, high efficiency and energy saving .Motor Protection Grade: IP55 Insulation Class: F grade. Motor voltage and frequency can be customized.Both Chinese famous motor and Siemens motor are available.
