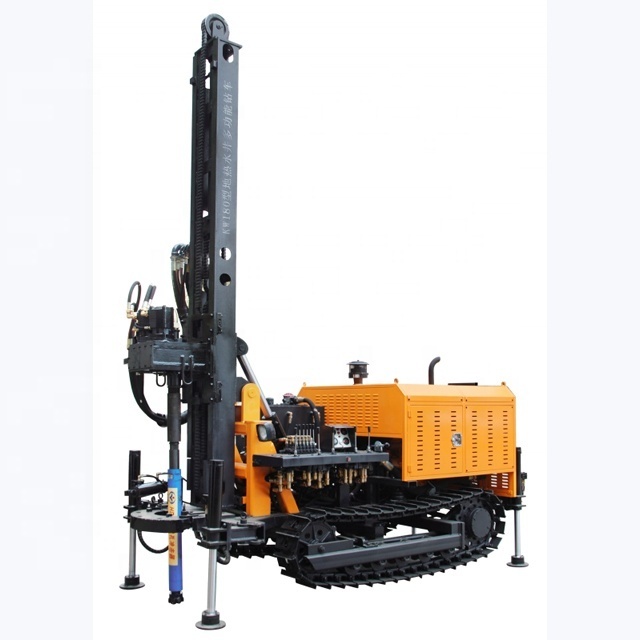

KW180 Crawler Hydraulic Drilling Rig/Deep Borehole Water Well Driller for hard rock or soil

KW180 Crawler Hydraulic Drilling Rig/Deep Borehole Water Well Driller for hard rock or soil

FOB Reference Price: Get Latest Price

≥1 Sets

US $22000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 2700*1550*2350mm

Weight:: 4500 KG

Drilling Diameter:: 110-202mm

Drilling Depth:: 180m

Mobility:: yes

After-sales Service Provided:: Engineers available to service machinery overseas

Dia. Of hole:: 110-202mm

Depth of hole:: 180m

Push length:: diameter 76 or 89*2000mm

Working pressure:: 10.5-24.6bar

Air comsumption:: 16-30m3/min

Max lifting capacity:: 70KN

Remark:: Water well drilling rig

Guarantee:: One year

customized:: yes,we can make as truck mounted type

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: KAISHAN

Voltage:: Diesel engine

Dimension(L*W*H):: 2700*1550*2350mm

Weight:: 4500 KG

Drilling Diameter:: 110-202mm

Drilling Depth:: 180m

Mobility:: yes

After-sales Service Provided:: Engineers available to service machinery overseas

Dia. Of hole:: 110-202mm

Depth of hole:: 180m

Push length:: diameter 76 or 89*2000mm

Working pressure:: 10.5-24.6bar

Air comsumption:: 16-30m3/min

Max lifting capacity:: 70KN

Remark:: Water well drilling rig

Guarantee:: One year

customized:: yes,we can make as truck mounted type

KW180 Crawler Hydraulic Drilling Rig/Deep Borehole Water Well Driller for hard rock or soil

Product Description

Application of water drilling rig

KW180 is punctured equipment for light, efficient, versatile,

It is a lightweight, efficient, multi-function device of surface drill rig, which is mainly applied to drill wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole,

especially for the water well of the mountains and rock terrian project.

It is with competitive price and high efficiency,popular sold wordwide.

1.Advantage of water hole drilling machines for sale

2.introduction of water hole drilling machines for sale

The rig can create jobs in different formations, the max. hole depth of up to 200 meters The rig using a new type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor air inlet design, prolong the service life of dieselengine. Convenient pump group design unique repair, reduce repair cost.

Hydraulic centralcontrol console, convenient operation. The rig adopts a special crawler chassis of engineering machinery strong crosscountry performance. Module design independently, can make the rig mounted on trucks, increase its mobility.

Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing the positioning disk, to ensure the positioning accuracy, reliable centering.

Technical Parameter
