Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAJIANG
-
Dimension(L*W*H):
-
560*425*360
-
Weight:
-
68 KG
-
Product name:
-
Food Packaging Machine
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Wood
-
Voltage:
-
110/220/240
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAJIANG
-
Dimension(L*W*H):
-
560*425*360
-
Weight:
-
68 KG
-
Product name:
-
Food Packaging Machine
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Technology Specifications
1. Modle: DZ-350MD MEAT PACKING MACHINE
2.Machine Dimension: 560*425*360 mm
3.Chamber Dimension: 450*370*120(70)mm
4.Sealer Dimension: 350*8 mm
5.Pump Capacity: 20 m3/h
6.Pwer Consumption: 0.75/0.9kw
7.oltage:100/220/240 V
8.Frequency:50/60 Hz
9.Produciton Cycle (times/min): 1-2
10.GW: 68KG
11.NW: 65KG
12.Shipping Dimensions: 670*490*540 mm
|
Product Name
|
Table Top Vacuum Packing Machine
|
|
Material
|
304 stainless steel,which ensures its elegant appearance as well as the anticorrosion in harsh caustic environment.
|
|
Control System
|
Microcomputer control system.Which is used for precise and stable setting vacuuming and sealing time according to different packing material and packing requirement, easily for operation.
|
|
Vacuum Pump
|
Machine equipped with high efficiency vacuum pump, lower noise, big capacity and working stablely.(Different brand vacuum pumps are available for customers' option
|
|
"V" type lid gasket
|
The "V" shaped chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the sealing tape and reduces change frequency.
|
|
LiD
|
The lid is made of high-quality acrylic material which is solid and transparent for observing the packing situation within the vacuum chamber at any time.The space of vacuum chamber is bright, clean, spacious and easy to clean.
|
|
Dynamic shock Absorption
|
The unique suspension system of the vacuum pump motor guarantees the low noise during operating of the machine..The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work so that they handle it with ease.
|
|
Used
|
Our vacuum packaging machines are widely used for food vacuum packaging of fish,meat,vegetable,fruit,pickle as well as medicine,electrinic and chemical product vacuum packaging.
|

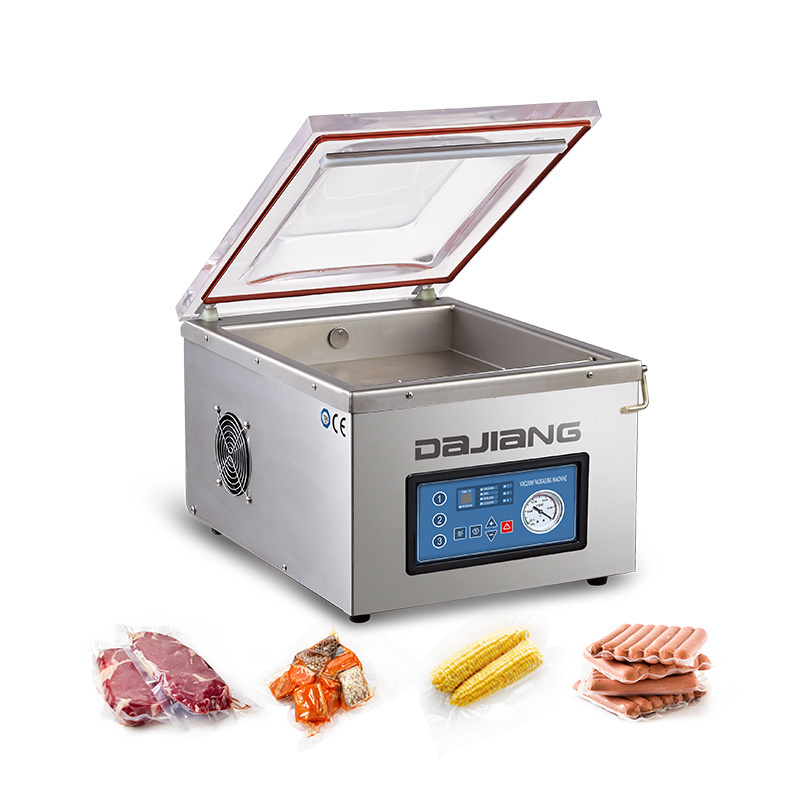

DZ-350MD Table Top Vacuum Packaging Machine is using microcomputer control system which is used for precise and stable setting vacuuming, sealing parameters.
It's widely applicable to vacuum packaging of food, medican, electrical product and chemical product.
