coal washing and separation heavy dense media separation system cyclone applied in coal beneficiation factories

coal washing and separation heavy dense media separation system cyclone applied in coal beneficiation factories

FOB Reference Price: Get Latest Price

≥1 Sets

US $1199

≥5 Sets

US $1188

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 950 KG

Material:: ceramic lining

Application:: Coal washing plant

After sale service:: Provided

Certification:: ISO9001/14001/18001/CE

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Haiwang

Dimension(L*W*H):: customized

Weight:: 950 KG

Material:: ceramic lining

Application:: Coal washing plant

After sale service:: Provided

Certification:: ISO9001/14001/18001/CE

Product Description

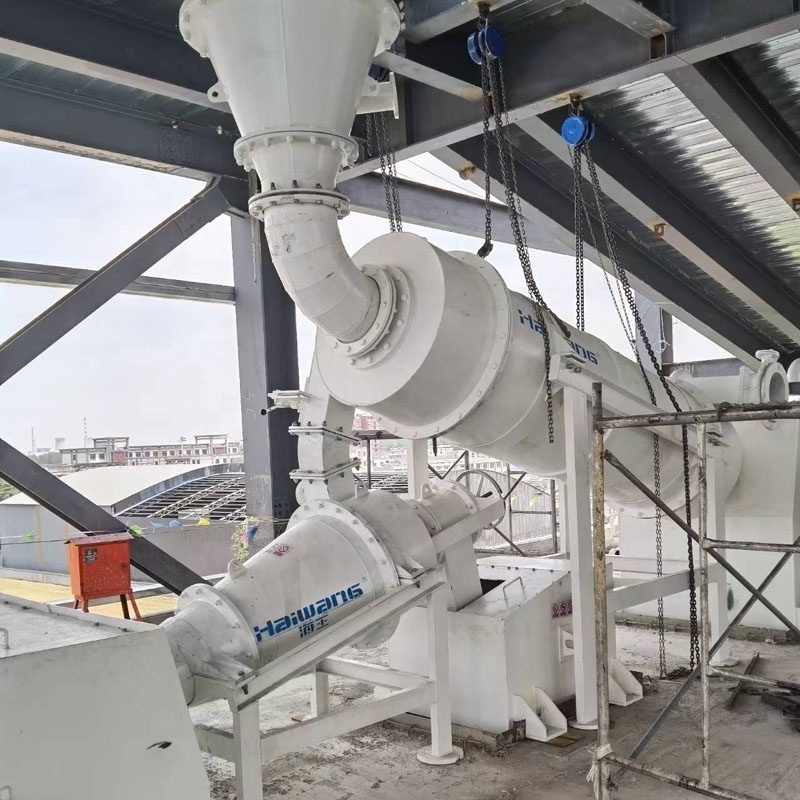

coal washing and separation heavy dense media separation system cyclone applied in coal beneficiation factories

Two products HM cyclone with pressured feeding

Maximum size of 1600 with capacity of 750-850t/h

Maximum feeding size 120mm

Ep≤0.05

Separation efficiency ≥95%

High-alumina ceramic lining

Specification	Diameter (mm)	Feeding size (mm)	Pressure (MPa)	Capacity (t/h)	Medium Circulation (m ³ /h)
FZJ600	600	≤30	0.06-0.12	40-80	250-350
FZJ660	660	≤30	0.06-0.14	60-100	300-400
FZJ710	710	≤40	0.08-0.14	80-140	400-600
FZJ800	800	≤40	0.08-0.14	120-180	600-800
FZJ850	850	≤50	0.08-0.14	160-240	700-900
FZJ900	900	≤50	0.10-0.16	200-320	800-1100
FZJ1000	1000	≤60	0.10-0.16	260-360	1000-1200
FZJ1100	1100	≤60	0.10-0.16	320-420	1100-1300
FZJ1150	1150	≤60	0.10-0.16	360-460	1200-1400
FZJ1200	1200	≤80	0.12-0.18	400-500	1300-1600
FZJ1300	1300	≤80	0.12-0.18	450-550	1500-1800
FZJ1400	1400	≤90	0.12-0.18	500-600	1600-2000
FZJ1450	1450	≤90	0.12-0.18	550-650	1900-2200
FZJ1500	1500	≤100	0.14-0.20	650-750	2000-2400
FZJ1600	1600	≤120	0.14-0.20	750-850	2200-2600

Why we choose Haiwang Hydrocyclone?

1. We own multifarious patent structure and advanced technology at abroad and domestic:
①According to the feeding method, feed structure could be divided into the involute feeding, the volute pre-classifying feeding,
spiral feeding etc.
②According to cone structure, it could be divided into flat bottom structure, multi-cone structure, the cone angle gradient
structure, etc.
③According to the overflow way, it could be divided into the air conditioning and energy saving overflow cap, thick wall overflow
pipe and other design.

2. Personalized structure design is available. We can produce suitable hydrocyclone according to client’s demand or working
condition. Various wear-resisting material: High alumina ceramic, rubber, polyurethane, ceramic composite materials.

Company Introduction

The largest and leading supplier of cyclone separation equipment and technical service in the Asia-Pacific region
- Established in 1989
- Manufacturing bases more than 150,000 square meters
- The product meets the European, the American and the other international fabrication standards.
- Haiwang has passed the EU CE certification, ISO9001, ISO14001, OHSAS18001
- The annual capacity is over 20,000 sets of different sizes of cyclones, more than 5,000 sets of vibrating screens and separators etc.
- Haiwang products take the leading market share in the field of separation industry, and exported to more than 50 countries & regions.
