Quick Details
-
Product name:
-

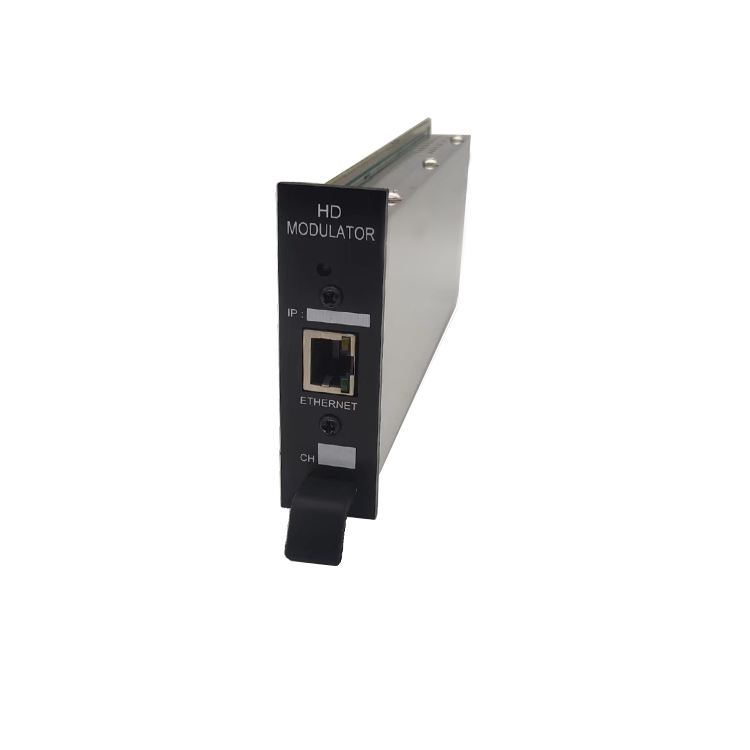

QAM/ATSC HD Modulator
-
Power supply:
-
12VDC 1.0A
-
Operation Temperature:
-
5°C - 40°C
-
Relative Humidity:
-
20% ~ 80%
-
USB Power Load:
-
5VDC 0.5A
-
Ethernet port:
-
RJ45,100M
-
Remote management:
-
Web Management
-
RF Frequency:
-
57 -861MHz
-
QAM:
-
64QAM, 256QAM
-
Encoding:
-
MPEG-2
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GME,ODM/OEM
-
Model Number:
-
GDM-021-3(GBAM-860-RACK)
-
Product name:
-
QAM/ATSC HD Modulator
-
Power supply:
-
12VDC 1.0A
-
Operation Temperature:
-
5°C - 40°C
-
Relative Humidity:
-
20% ~ 80%
-
USB Power Load:
-
5VDC 0.5A
-
Ethernet port:
-
RJ45,100M
-
Remote management:
-
Web Management
-
RF Frequency:
-
57 -861MHz
-
QAM:
-
64QAM, 256QAM
-
Encoding:
-
MPEG-2
Products Description
Specification
|
Place of Origin:Guangdong,China
|
|
|
|
|||
|
Model Number:GDM-021-3(GBAM-860-RACK)
|
|
|
|
|||
|
ITEM
|
TYPICAL
|
Q.C LIMIT
|
TEST CONDITIONS
|
|||
|
1. Encoding Section
|
|
|
|
|||
|
Video
|
|
|
|
|||
|
Encoding
|
MPEG-2
|
|
HD:MPEG-2/MP@ML
|
|||
|
Bit Rate
|
|
256QAM:7.6Mbps
|
|
|||
|
|
|
64QAM:4.8Mbps
|
|
|||
|
Average Encoding
|
|
256QAM:8Mbps
|
|
|||
|
|
|
64QAM:5Mbps
|
|
|||
|
Resolution
|
|
HD 1080p 25/30 Max
|
|
|||
|
Audio
|
|
|
|
|||
|
Encoding
|
MPEG-1 Layer 2, AAC-LC, AC3
|
|
|
|||
|
Sample Rate
|
|
48KHz
|
|
|||
|
Bit Rate
|
|
384kbps
|
|
|||
|
2. Input
|
|
|
|
|||
|
Video Input
|
|
HDMI:1080p 25/30, 1080i 50/60 Max,
|
|
|||
|
|
|
|
|
|||
|
Input Connectors
|
|
Closed Caption (RCA) / HDMI
|
|
|||
|
3. QAM Modulator
|
|
|
|
|||
|
Modulation Types
|
|
ITU-T J83 Annex B
|
|
|||
|
Cable Standard
|
|
STD
|
|
|||
|
QAM
|
|
64QAM, 256QAM
|
|
|||
|
MER
|
|
≥35dB
|
|
|||
|
RF Frequency
|
|
57 – 861MHz
|
|
|||
|
RF Output Level
|
100dBμV
|
100dBμV ±5dBμV
|
|
|||
|
RF Level Adj
|
|
0dB ~ -36dB
|
|
|||
|
Attenuation step
|
|
1dB per step
|
|
|||
|
4. System
|
|
|
|
|||
|
Remote management
|
|
Web Management
|
|
|||
|
Ethernet port
|
|
RJ45,100M
|
|
|||
|
USB Power Load
|
|
5VDC 0.5A
|
|
|||
|
5. General
|
|
|
|
|||
|
Power supply
|
|
12VDC 1.0A
|
|
|||
|
Operation Temperature
|
|
5°C - 40°C
|
|
|||
|
Relative Humidity
|
|
20% ~ 80%
|
|
|||
|
Dimensions
|
|
204*80* 24 mm
|
|
|||
|
Weight
|
|
0.375 Kg
|
|
|||
