Quick Details
-
Brand Name:
-
ALLRAISE
-
Model Number:
-
OR-DCB-360
-
Product name:
-
wire o Binding Machine
-
Name:
-
Double loop Wire Binding Machine
-
Speed:
-
Up to 1000 Volume/Hour
-
Wire diameter:
-
0.7-1.5mm
-
Max binding thickness(mm):
-
4.8-31.8mm
-
Function:
-
Double wire book binding
-
Binding Material:
-
book PVC
-
Motor:
-
step-servo motor
-
The max width of binding:
-
360mm(14.2'')
Quick Details
-
Type:
-
Wire Binding Machine
-
Power:
-
Electricity
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ALLRAISE
-
Model Number:
-
OR-DCB-360
-
Product name:
-
wire o Binding Machine
-
Name:
-
Double loop Wire Binding Machine
-
Speed:
-
Up to 1000 Volume/Hour
-
Wire diameter:
-
0.7-1.5mm
-
Max binding thickness(mm):
-
4.8-31.8mm
-
Function:
-
Double wire book binding
-
Binding Material:
-
book PVC
-
Motor:
-
step-servo motor
-
The max width of binding:
-
360mm(14.2'')
Products Description
|
Model No.
|
OR-DCB360
|
|
The max width of binding
|
360mm(14.2'')
|
|
Speed
|
Up to 1000 Volume/Hour
|
|
Air Pressure
|
5-8Kgf
|
|
Wire Diameter
|
1/4'' -1 1/4'' (no need to change binding tools)
|
|
Electric power
|
1PH 220V 50/60HZ (other voltage on request)
|
|
Main machine
|
2020*950*1250mm
|
|
Feeding reel
|
780*560*1200mm
|
|
Conveyor
|
2160*370*700mm
|
|
Net weight
|
300Kg
|
|
Item
|
Specification
|
|
|
|
|
|
|||||
|
|
inch
|
Wire diameter
|
Pitch
|
Max binding
thickness(mm)
|
coil/big coil
|
coil/small coil
|
|||||
|
YO
|
1/4"
|
0.70mm
|
3:1
|
4.8
|
99000
|
81000
|
|||||
|
|
5/16"
|
0.80mm
|
|
6.4
|
71700
|
58000
|
|||||
|
|
3/8"
|
0.80mm
|
|
7.9
|
53400
|
40000
|
|||||
|
|
7/16"
|
0.90mm
|
|
9.5
|
38600
|
32000
|
|||||
|
|
1/2"
|
0.90mm
|
|
11.1
|
30000
|
24000
|
|||||
|
|
9/16"
|
1.00mm
|
|
12.7
|
21500
|
19300
|
|||||
|
|
5/8"
|
1.00mm
|
|
14.3
|
17200
|
14200
|
|||||
|
|
5/8"
|
1.10mm
|
2:1
|
14.3
|
12300
|
10500
|
|||||
|
|
3/4"
|
1.20mm
|
|
17.5
|
8500
|
7000
|
|||||
|
|
7/8"
|
1.20mm
|
|
20.6
|
6100
|
5000
|
|||||
|
|
1"
|
1.25mm
|
|
23.8
|
4400
|
3600
|
|||||
|
|
1-1/8"
|
1.50mm
|
|
25.4
|
3900
|
3000
|
|||||
|
|
1-1/4"
|
1.50mm
|
|
28.6
|
2900
|
2100
|
|||||
|
|
1-3/8"
|
1.50mm
|
|
29.5
|
2700
|
2000
|
|||||
|
|
1-1/2"
|
1.50mm
|
|
31.8
|
2000
|
1300
|
|||||
Main Feature

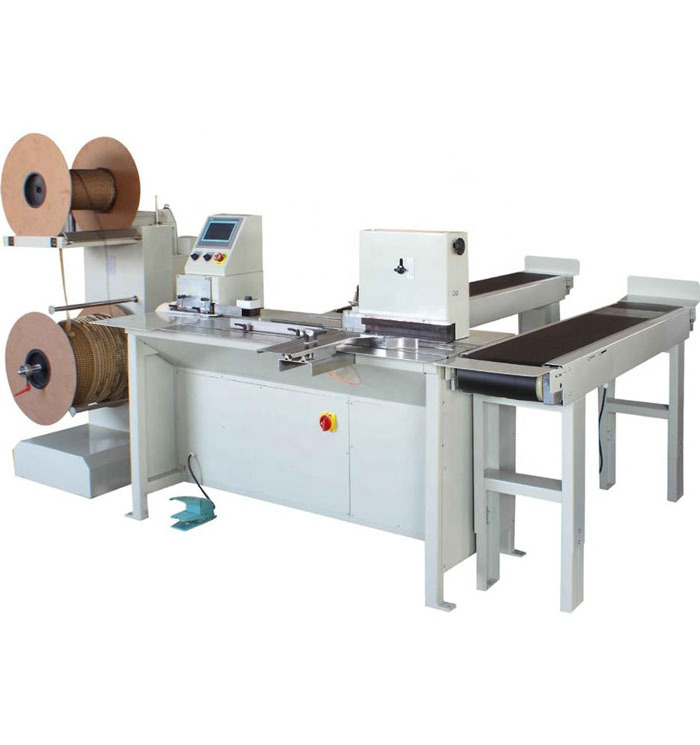

The machine is used for binding double wire books, notebooks, wall calendars, etc.
It can bind 1/4" -1 1/4" without changing binding tools.
With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
It can bind 1/4" -1 1/4" without changing binding tools.
With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
1.Controlled by PLC. Easy to set and adjust.
2.There are no tools to change as the closing press is adjustable for all the diameters.
3.Especially suitable for binding the notebooks which the cover is bigger than inner sheet
2.There are no tools to change as the closing press is adjustable for all the diameters.
3.Especially suitable for binding the notebooks which the cover is bigger than inner sheet
