Quick Details
-
Fuel:
-
Gas / Diesel
-
Engine Type:
-
2-Stroke
-
Power:
-
200 - 350W
-
Voltage:
-
36V
-
Condition:
-
New
-
Product Name:
-
70 CC Motorcycle
-
Color:
-
Optional
-
Displacement::
-
80cc
-
Compression Ratio::
-
9.1:1
-
Hot key word:
-
70 CC Motorcycle
-
Max. Torque (N.m/r/min)::
-
7.2/5000
-
Max. Speed (Km/h)::
-
≥80
-
Name:
-
70 CC Motorcycle
-
Ignition::
-
CDI
-
Starting System::
-
Electric/Kick start
-
Certification:
-
CCC
-
Type:
-
70 CC Motorcycle
-
Brake(F/R):
-
Drum/Drum
Quick Details
-
Max. Speed:
-
> 80km/h
-
Motor:
-
Brushless
-
Place of Origin:
-
Chongqing, China
-
Fuel:
-
Gas / Diesel
-
Engine Type:
-
2-Stroke
-
Power:
-
200 - 350W
-
Voltage:
-
36V
-
Condition:
-
New
-
Product Name:
-
70 CC Motorcycle
-
Color:
-
Optional
-
Displacement::
-
80cc
-
Compression Ratio::
-
9.1:1
-
Hot key word:
-
70 CC Motorcycle
-
Max. Torque (N.m/r/min)::
-
7.2/5000
-
Max. Speed (Km/h)::
-
≥80
-
Name:
-
70 CC Motorcycle
-
Ignition::
-
CDI
-
Starting System::
-
Electric/Kick start
-
Certification:
-
CCC
-
Type:
-
70 CC Motorcycle
-
Brake(F/R):
-
Drum/Drum

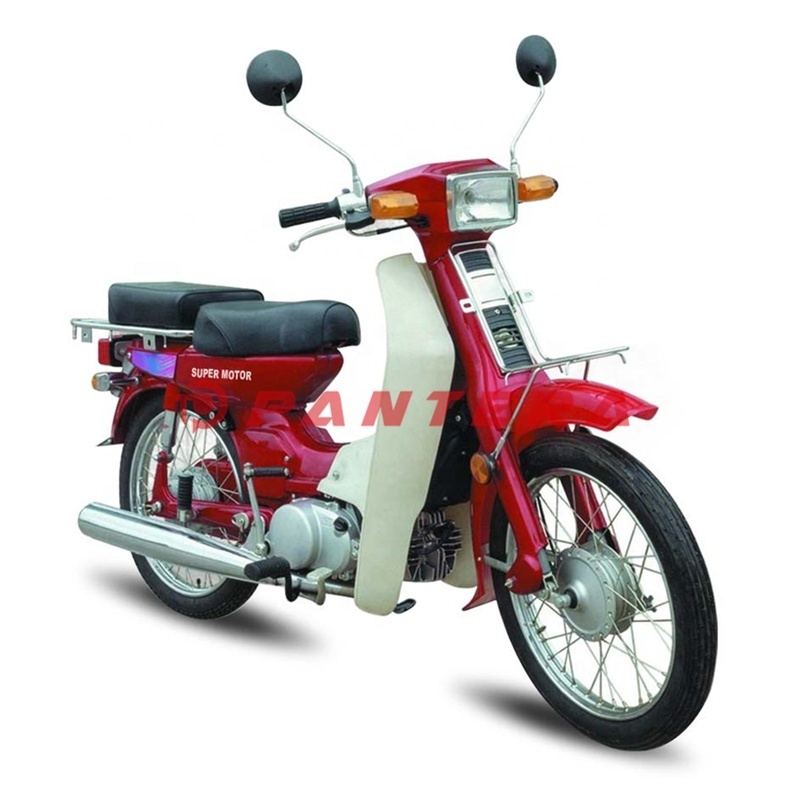

Retro Chongqing CY80 2 Stroke 70 CC Motorcycle
| Engine | |
| Engine Type: | Single cylinder,air-cooled, two stroke, 70 CC Motorcycle |
| Displacement: | 80cc |
| Bore X Stroke (mm): | 52.4 x49.5 70 CC Motorcycle |
| Compression Ratio: | 9.1:1 |
| Max. Power (kw/r/min) | 5.2/8000 70 CC Motorcycle |
| Max. Torque (N.m/r/min): | 7.2/5000 |
| Max. Speed (Km/h): | ≥80 70 CC Motorcycle |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Automatic |
| Ignition: | CDI |
| Starting System: | Electric/Kick start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | Drum Brake |
| Rear Brake: | Drum Brake |
| Front Tire: | 2.50-17 |
| Rear Tire: | 2.75-17 |
| DIMENSIONS | |
| L X W X H (mm): | 1885mmx 670mm x1050mm |
| Seat Height (mm): | 790 |
| Wheelbase (mm): | 1215 70 CC Motorcycle |
| Min. Ground Clearance (mm): | 150 |
| Max. Permissionable Weight : | 150 kg 70 CC Motorcycle |
| Rider Capacity: | 1 Person |
| Battery | 12V/5Ah |
| OTHERS | |
| Packing Size (mm): | 1650*450*860mm |
| Container Loading(40HQ): |
32pcs/20'GP, 105pcs/40'HQ CBU; 70pcs/20'GP , 160pcs/40'HQ CKD |
Personal Customization:
1.Front brake:drum brake/disc brake
2.Wheel:spoke wheel/alloy wheel
3.Speedmeter:normal speedmeter/digital speedmeter
4.Displacement can be changed from 50cc to 125cc
5.Color is optional too
Warranty:
We can offer one year warranty or engine 6000kms. And 1% easy-damaging spare parts are provided for free
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor 70 CC Motorcycle |
| 2 | electric parts |
| 3 | headlight assy 70 CC Motorcycle |
| 4 | meter assy |
| 5 | L. front turning light 70 CC Motorcycle |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
|
Note: the above spare parts packaged separately, carton packaging, standard mark |
|
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
SKD means semiknocked down and CKD means complete knocked down. They are the different package ways. Both of them will take less import tariffs and frieight than finished product.
