Quick Details
-
type:
-
combine type
-
weight:
-
2600kg
-
dimension:
-
4850*1950*2270mm
-
efficiency:
-
0.1-0.2ha./h
-
Product name:
-
Combine peanutt Harvester
-
Function:
-
Combined Grain Harvester
-
row number:
-
2 row
-
dig depth:
-
100-200mm
-
grain unloading:
-
hydraulic dump
-
After-sales Service Provided:
-
Online support
Quick Details
-
Number of Rows:
-
2
-
Place of Origin:
-
Hubei, China
-
Dimension(L*W*H):
-
4850*1950*2270mm
-
type:
-
combine type
-
weight:
-
2600kg
-
dimension:
-
4850*1950*2270mm
-
efficiency:
-
0.1-0.2ha./h
-
Product name:
-
Combine peanutt Harvester
-
Function:
-
Combined Grain Harvester
-
row number:
-
2 row
-
dig depth:
-
100-200mm
-
grain unloading:
-
hydraulic dump
-
After-sales Service Provided:
-
Online support

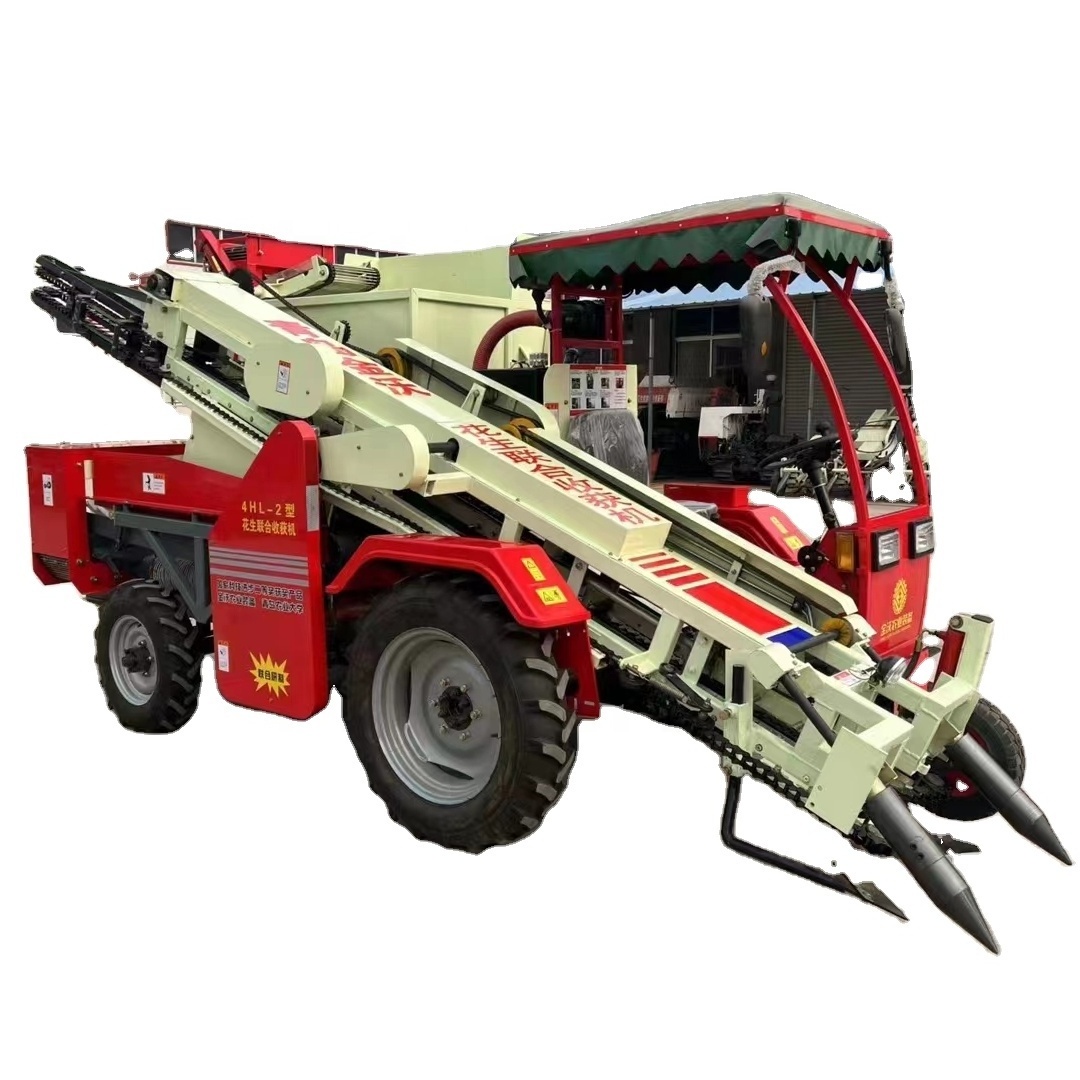

Agriculture groundnut picking machine combine peanut harvester
Main optimization:
1.Increase the length of the picking roller, reduce the speed of the picking roller,
picking cleaner, lower crushing rate
2. Lengthen and widen the vibrating screen, cleaning large area, better effect
3. Hydraulic deep limiting wheel, easier operation
4. Adopt prefiltration + air filtration, the air filtration effect is better
5. Large aperture low temperature radiator, better heat dissipation effect
6. power is bigger, rised to 40hp
| model | 4HL-2 |
| item name | peanut groundnut combine harvester |
| suitable seeds | peanut, groundnut |
| function | with digging, separation, fruit picking, collecting functions in one machine |
| overall size | 4850*1950*2270mm |
| weight | 2600kg |
| Efficiency | 0.1-0.2ha./h |
| Fuel Oil Consumption | ≤249g/kw.h |
| dig depth | 100-200mm |
| Rated Power | 29.5kw/40hp |
| fuel consumption | 25.8kg/ha. |
| work width | 600mm |
| row number | 2 |
| suitable peanut | riding planting type peanut,one ridge 2 rows |
| ridge height | 10±5cm |
| ridge to ridge space | 80±5cm |
| ridge width/row space | 25±5cm |
| structure type | wheel type self propelled half-feed |
| container load qty | 1unit/20GP, 3units/40HQ |
| grain unloading | Hydraulic dump |
| picking rate | >98% |
| loss rate | <1.5% |
| dirt rate | <4% |
| damage rate | <0.5% |
