Quick Details
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
220v/380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Welldone
-
Model Number:
-
WD691
Quick Details
-
Motor Power:
-
1.5kw/1.8kw
-
Max. Rim Diameter:
-
1600mm
-
Max. Rim Width:
-
780mm
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
220v/380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Welldone
-
Model Number:
-
WD691
|
Model |

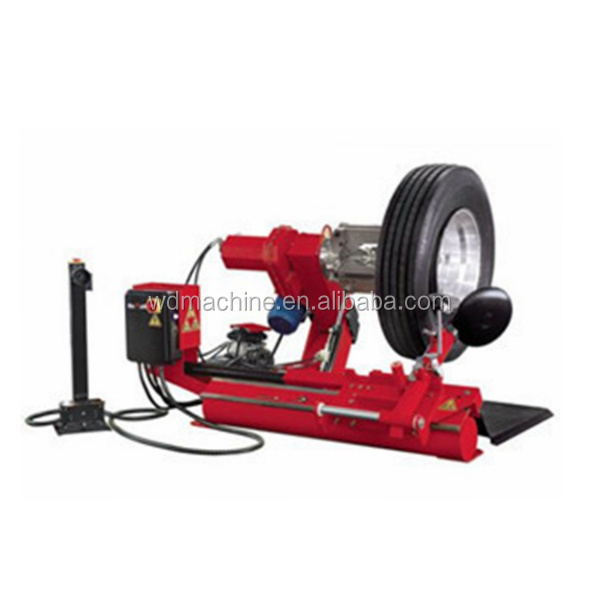

WD 69 1(Truck tyre changer ) |
|
Specification |
Electrohydraulic operation special for truck,bus and pa ss enger car wheels |
|
Power supply |
220V/380V 3Phase 1.5+1.8kw |
|
Max.wheel diameter |
Design 1600mm (demount easily below1200mm,above this,it can work and need big power ) |
|
Max.wheel width |
780mm |
|
Clamping capacity |
14 ” ~26 ” |
|
Weight |
647KGS/590KGS |
|
Packing size |
2030mm*1600mm*1000mm |
Features:
1. Electrohydraulic operation.
2. Clockwise and anticlockwise rotation of chuck.
3. Rim capacity 14''-26''
4.Movable controlling unit.
5.Adjustable clamping force.
