Quick Details
-
Model Number:
-
AFTL
-
medium temperature range::
-
-20 ° C to 220 ° C
-
ambient temperature::
-
-20 ° C to 80 ° C
-
measured medium::
-
liquid, powder or granular solid
-
measured solid particle size::
-
≤ 10mm
-
measured medium repose angle::
-
≥ 200
-
pressure range::
-
≤ 1MPa
-
shell material::
-
die-casting aluminum alloy
-
fork mater ial::
-
1Cr18Ni9Ti
-
connection::
-
1 "NPT thread / flange
-
shell protection::
-
IP65
Quick Details
-
Warranty:
-
12 MONTHS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AUTO
-
Model Number:
-
AFTL
-
medium temperature range::
-
-20 ° C to 220 ° C
-
ambient temperature::
-
-20 ° C to 80 ° C
-
measured medium::
-
liquid, powder or granular solid
-
measured solid particle size::
-
≤ 10mm
-
measured medium repose angle::
-
≥ 200
-
pressure range::
-
≤ 1MPa
-
shell material::
-
die-casting aluminum alloy
-
fork mater ial::
-
1Cr18Ni9Ti
-
connection::
-
1 "NPT thread / flange
-
shell protection::
-
IP65

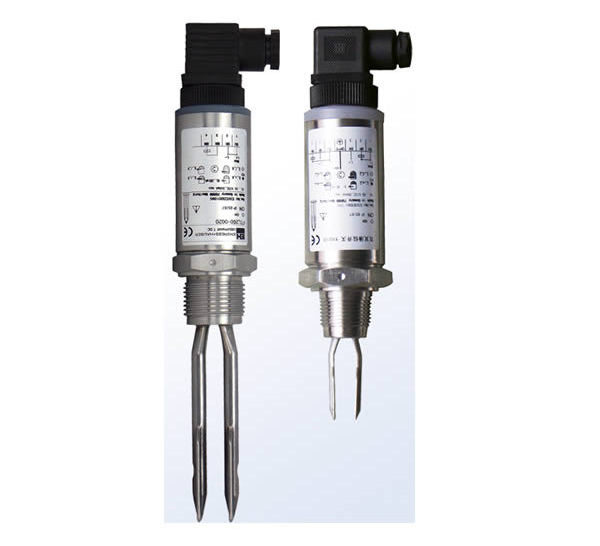

AFTL Tuning Fork Switch /Water Level Sensor Switch With Low Price
GENERAL
The vibrating fork type level switch working principle is simple and effective. This makes vibrating
fork type level switches reliable, cost effective and very popular for use in detecting the presence or
absence of liquids and bulk solid materials. The vibrating fork type level switch working principle is ba
sed upon detecting the change in harmonic vibration frequency of the sensing element as a re sult of
the presence of the target media.
FEATURES
Power consumption: ≤ 2W
Vibration frequency:300±50HZ
Switch signal operating time: 1-60s
DETAILS
STANDARD SPECIFICATION
|
medium temperature range |
-20 ° C to 120 ° C |
|
ambient temperature |
-20 ° C to 80 ° C |
|
ambient humidity |
≤ 95% RH |
|
measured medium |
liquid, powder or granular solid |
|
measured medium density |
solid ≥ 0.1g/cm3, liquid ≥ 0.7g/cm3 |
|
measured solid particle size |
≤ 10mm |
|
maximum liquid viscosity |
<1000mm2 / s |
|
measured medium repose angle |
≥ 200 |
|
pressure range |
≤ 1MPa |
|
shell material |
die-casting aluminum alloy |
|
fork mate rial |
1Cr18Ni9Ti |
|
shell protection |
IP65 |
|
connection |
1 "NPT thread / flange (two ways) |
|
electrical parameters |
1: supply voltage: 24 V DC; 220V AC 50Hz 2: output signal: relay output double-pole double- throw (DPDT) contact capacity: 8A 220V AC 4A 24V DC 3: power consumption: ≤ 2W |
|
tuning fork vibration frequency |
300 ± 500HZ |
Order sheet
Installation
