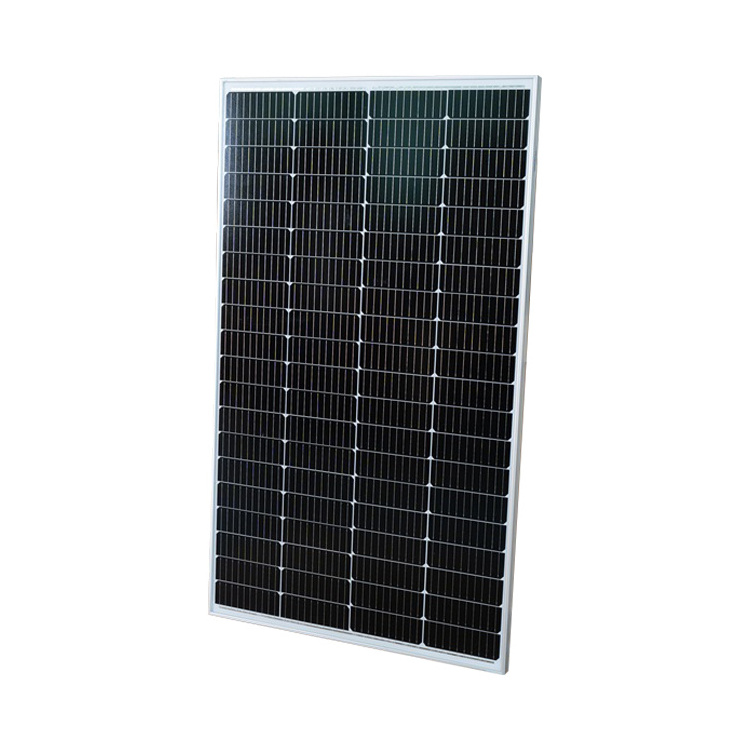

Quick Details
-
Brand Name:
-
GUBANG
-
Model Number:
-
HD-50WP
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
678*549*30mm
-
Dimension (L*W*H/mm):
-
678*549*30mm
-
Installation holes distance (L*W/mm):
-
643 x 305mm
-
Weight (kgs):
-
2
-
Solar Cells:
-
Polycrystalline 156.75 x 52.25mm (4BB)
-
No. of Cells:
-
36 (4x9)
-
Glass:
-
3.2mm Low-iron tempered glass
-
Frame:
-
Anodized Aluminium alloy (Black)
-
Junction Box:
-
IP 65 above, 2 bypass diodes
-
Cables:
-
2 * 2.5mm , L=900mm
-
Connectors:
-
IP67, MC4 compatible
Quick Details
-
Cell size:
-
156.75mmx52.25mm(4BB)
-
Type:
-
PERC
-
Warranty:
-
10YEARS
-
Brand Name:
-
GUBANG
-
Model Number:
-
HD-50WP
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
678*549*30mm
-
Dimension (L*W*H/mm):
-
678*549*30mm
-
Installation holes distance (L*W/mm):
-
643 x 305mm
-
Weight (kgs):
-
2
-
Solar Cells:
-
Polycrystalline 156.75 x 52.25mm (4BB)
-
No. of Cells:
-
36 (4x9)
-
Glass:
-
3.2mm Low-iron tempered glass
-
Frame:
-
Anodized Aluminium alloy (Black)
-
Junction Box:
-
IP 65 above, 2 bypass diodes
-
Cables:
-
2 * 2.5mm , L=900mm
-
Connectors:
-
IP67, MC4 compatible
|
ELECTRICAL PERFORMANCE
|
|
|
|
Module Type
|
HD-50WP
|
|
|
Maximum Power(Pmax/W)
|
50
|
|
|
Power Tolerance
|
1%~3%
|
|
|
Maximum Power Voltage(Vmp)
|
17.6
|
|
|
Maximum Power Current(Imp)
|
2.84
|
|
|
Open-Circuit Voltage Voc(V)
|
21.8
|
|
|
Short-Circuit Current Isc(A)
|
3.11
|
|
|
Maximum System Voltage(VDC)
|
1000（IEC）
|
|
|
Maximum series Fuse Rating(A)
|
15
|
|
|
Operating Module Temperature（°C）
|
-40 to +85
|
|
|
Normal Operating Cell Temperature（°C）
|
45±2°C
|
|
|
Application Class
|
A
|
|
|
NOTES
|
|
|
||
|
Item
|
Name
|
SPECIFICATION
|
||
|
4
|
Logo MightyMax
|
10-15mm*40~60mm
|
||
|
3
|
Barcode （by Sky）
|
10-15mm*40~60mm
|
||
|
2
|
Junction Box
|
1 Diodes，IP65
|
||
|
1
|
Label Name
|
80mm*100mm
|
||
