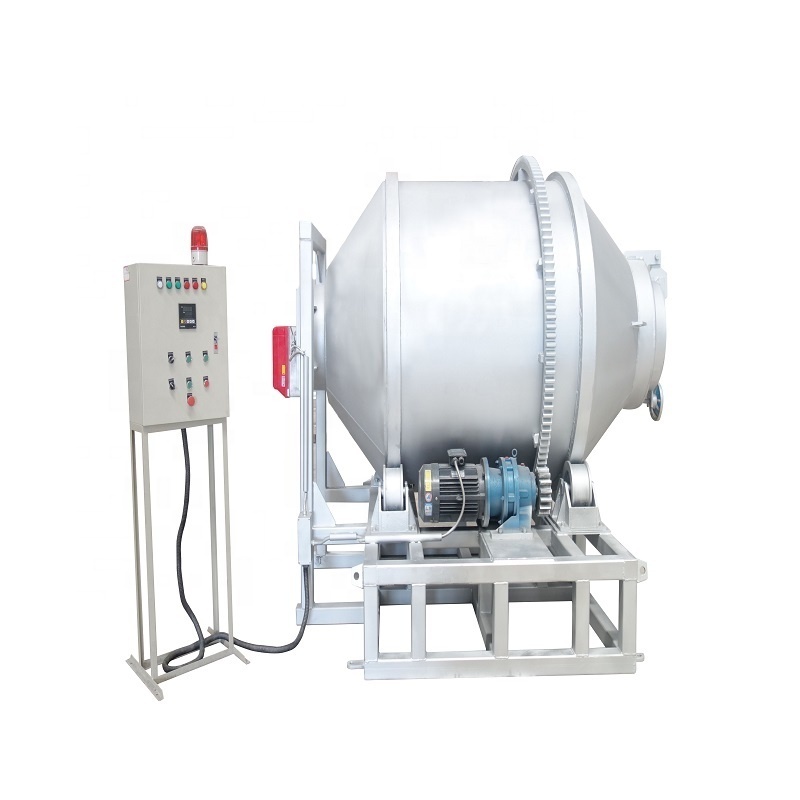

Name: High Quality Lead Powder Rotary Melting Furnace
Brand: Wondery
Original: China
The hearth are built with once-forming casting material with a high strength. The life of casting material can be more than 5 years.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
customized, customized
-
Dimension(L*W*H):
-
2620*2110*2170mm
-
Weight (T):
-
12 T
-
Power (kW):
-
11
-
fuel:
-
gas
-
type:
-
rotary furnace
-
capacity:
-
3500kgs
-
refractory material:
-
casting material used
-
refractory lining life:
-
5 years on average
-
Max temperature:
-
1200 degree celcius
-
burner brand:
-
Riello brand, Italy
-
Color:
-
Customzied
-
Weight:
-
12T
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
WONDERY
-
Voltage:
-
customized, customized
-
Dimension(L*W*H):
-
2620*2110*2170mm
-
Weight (T):
-
12 T
-
Power (kW):
-
11
-
fuel:
-
gas
-
type:
-
rotary furnace
-
capacity:
-
3500kgs
-
refractory material:
-
casting material used
-
refractory lining life:
-
5 years on average
-
Max temperature:
-
1200 degree celcius
-
burner brand:
-
Riello brand, Italy
-
Color:
-
Customzied
-
Weight:
-
12T
Product Description
Product Application
The rotary melting furnace is used to melt the Lead powder& Aluminum Power
The furnace body is of an oval shape. The two sides of the hearth are built with once-forming refractory material with a high strength. The furnace lining is comprised of refractory layer, heat preservation layer, and heat insulation layer. The hearth is built with high strength once-forming casting material. The hearth is equipped with one fire blocking ring which could prolong the flame stay period, increase melting speed and reduce energy consumption. The furnace has the features of high performance, air tightness, high strength, and long service life. The heat preservation layer and insulation layer are both of ceramic fiber material. The furnace has a fast temperature rising speed, a good heat preservation, and a low energy consumption.
The burning system is comprised of the fan, the solenoid valve, the igniter, and the flame monitor. Connect the burner with power, and the burner will work.
The furnace body is of an oval shape. The two sides of the hearth are built with once-forming refractory material with a high strength. The furnace lining is comprised of refractory layer, heat preservation layer, and heat insulation layer. The hearth is built with high strength once-forming casting material. The hearth is equipped with one fire blocking ring which could prolong the flame stay period, increase melting speed and reduce energy consumption. The furnace has the features of high performance, air tightness, high strength, and long service life. The heat preservation layer and insulation layer are both of ceramic fiber material. The furnace has a fast temperature rising speed, a good heat preservation, and a low energy consumption.
The burning system is comprised of the fan, the solenoid valve, the igniter, and the flame monitor. Connect the burner with power, and the burner will work.
rotary melting furnace rotary melting furnace rotary melting furnace rotary melting furnace rotary melting furnace
|
High Quality Lead Powder Rotary Melting Furnace
|
|
|
|
|||
|
Burning System
|
Gas consumption
|
m3/ton lead
|
40-50
|
|||
|
|
Gas supply pressure
|
Mpa
|
≤0.1
|
|||
|
|
Gas burner power
|
Kcal
|
400,000
|
|||
|
Main performance parameters
|
Melting pool capacity
|
kg lead power
|
3500
|
|||
|
|
Fan motor
|
KW
|
3
|
|||
|
|
Rotary motor
|
KW
|
7.5
|
|||
|
Furnace body
|
Melting cycle
|
hour
|
2 (including charging and discharging time)
|
|||
|
|
Overall Dimensions
|
mm
|
2620*2110*2170
|
|||
|
|
Furnace weight
|
kg
|
12000
|
|||
Detailed Images
Machine Parts
Company Introduction
Wuxi Wondery Industry Equipment Co., Ltd
is a professional supplier of metal melting furnaces.
We can supply the following products: electric resistance aluminum crucible melting furnace (300-1000KG), gas or oil fired crucible aluminum melting furnace (300-1000KG), gas or oil fired reverberatory aluminum melting furnace (max 25000KG), continuous gas or oil fired aluminum melting furnace,gas or oil fired aluminum rotary melting furnace (max 10000kg), electric aluminum holding furnaces, gas fired aluminum holding furnaces,gas or oil fired crucible copper melting furnace, zinc ash rotary melting furnace, lead battery rotary melting furnace. Our melting furnaces are mainly used for melting metal with low melting point, and the max working temperature of our furnace is 1350 degree celcius. Our furnaces are widely used in the field of aluminum ingot production, high and low pressure die casting, copper industry, zinc ingot production, and lead battery recycling.
We can supply the following products: electric resistance aluminum crucible melting furnace (300-1000KG), gas or oil fired crucible aluminum melting furnace (300-1000KG), gas or oil fired reverberatory aluminum melting furnace (max 25000KG), continuous gas or oil fired aluminum melting furnace,gas or oil fired aluminum rotary melting furnace (max 10000kg), electric aluminum holding furnaces, gas fired aluminum holding furnaces,gas or oil fired crucible copper melting furnace, zinc ash rotary melting furnace, lead battery rotary melting furnace. Our melting furnaces are mainly used for melting metal with low melting point, and the max working temperature of our furnace is 1350 degree celcius. Our furnaces are widely used in the field of aluminum ingot production, high and low pressure die casting, copper industry, zinc ingot production, and lead battery recycling.
Our furnaces have been exported to Qatar, Saudi Arabia, Mexico, Philippine, Kenya, Pakistan, Canada, Egypt,Tanzania, etc.It is our company philosophy to serve every customer with our sincerity, professionalism and full effort. We warmly welcome every customer to come to China, visit us, and build a bright future through our mutual cooperation.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
Varying with furnace capacity
|
|
|
Weight
|
Varying with furnace capacity
|
|
|
Packaging Details
|
The normal package is plywood box. Fumigating is not needed.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
