Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUWEI
-
Model Number:
-
3TG-6YP SERIES
-
Weight:
-
195KG
-
Dimension(L*W*H):
-
1.66*0.65*1.155M
-
Certification:
-
ISO9001
-
start way:
-
recoil and electric
-
power:
-
diesel and gasoline
-
horse power:
-
6-13HP
-
packing detail:
-
plywood,iron frame or negotiation
-
brand:
-
LUWEI
-
usage:
-

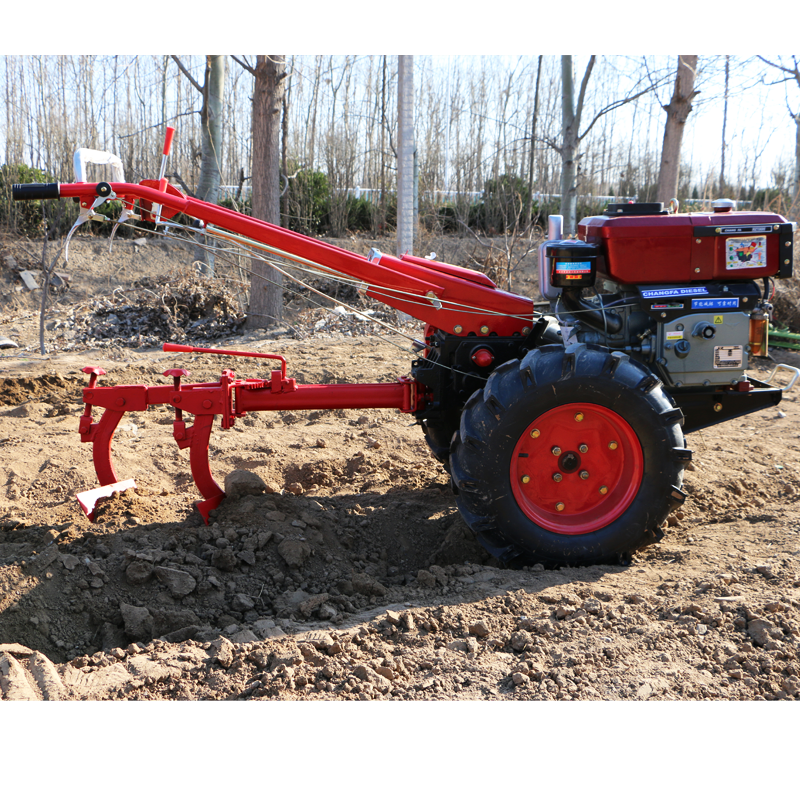

suitable ditching operation in hill land, small field or garden use
-
Dimension:
-
1.66*0.65*1.155m
-
drive type:
-
gear drive
-
delivery:
-
storage is available
Quick Details
-
Power:
-
6.6kw
-
Warranty:
-
12 months
-
Use:
-
used to ditch and ridge
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUWEI
-
Model Number:
-
3TG-6YP SERIES
-
Weight:
-
195KG
-
Dimension(L*W*H):
-
1.66*0.65*1.155M
-
Certification:
-
ISO9001
-
start way:
-
recoil and electric
-
power:
-
diesel and gasoline
-
horse power:
-
6-13HP
-
packing detail:
-
plywood,iron frame or negotiation
-
brand:
-
LUWEI
-
usage:
-
suitable ditching operation in hill land, small field or garden use
-
Dimension:
-
1.66*0.65*1.155m
-
drive type:
-
gear drive
-
delivery:
-
storage is available
All Of Product We Can Provide:
|
Description
|
Unit |
Walking Tractor Chassis for Choice(101<121<151) |
||
|
LK-101 |
LK-121 |
LK-151 |
||
|
Suitable for 8hp-13hp |
Suitable for15hp-18hp |
Suitable for18hp |
||
|
Structural Weight |
kgs |
320 |
353 |
363 |
|
Overall dimension |
mm |
2130*970*1250 |
2680*960*1250 |
|
|
Turing speed of rototilling shaft |
rpm |
188 |
188/300 |
188/300 |
|
Blads qty |
20 |
20 |
20 |
|
|
Rototilling width |
900 |
900 |
900 |
|
|
Type of tractor |
Single axle ,dual-purpose for both traction &drive |
|||
|
Forward travelling speed |
km/h |
2.11,3.28,5.29,8.53,13.27, 21.45 |
1.4,2.5,4.1,5.3,9.4,15.3 |
|
|
Reverse travelling speed |
km/h |
1.62;6.56 |
1.1;3.8 |
|
|
Wheel track |
mm |
580-700 |
800,740,640,580(normally 800) |
|
|
Min ground clearance |
mm |
182 |
185 |
|
|
Min turning radius |
m |
0.9 (no implement) |
||
