1
Tighten the valve clockwise to ensure that the oil return valve can not be turned as far as it will go.
2
According to the height of the car body,select the height of screw out.
3
Insert the handle without groove into the end.
4
Place the jack near the tire of the car chassis ,and pull the handle up and down to reach the desired height.
5
After completion,loosen the valve one or two turns times anticlockwise,and press by gravity.This jack does not have the function of automatic lowering.Remember that the oil return valve cannot be loosened too much,or the jack leaks oil.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 Years, 12 Months
-
Color:
-
Customized Color Acceptable
-
Packing:
-
Color Box
-
MOQ:
-
300PCS
-
Application:
-
Lifting Tools
-
Material:
-
Steel
-
Lift Height(mm):
-
125MM
-
N.W:
-
3.3KG
-
Model:
-
TBJ0501
-
Product name:
-

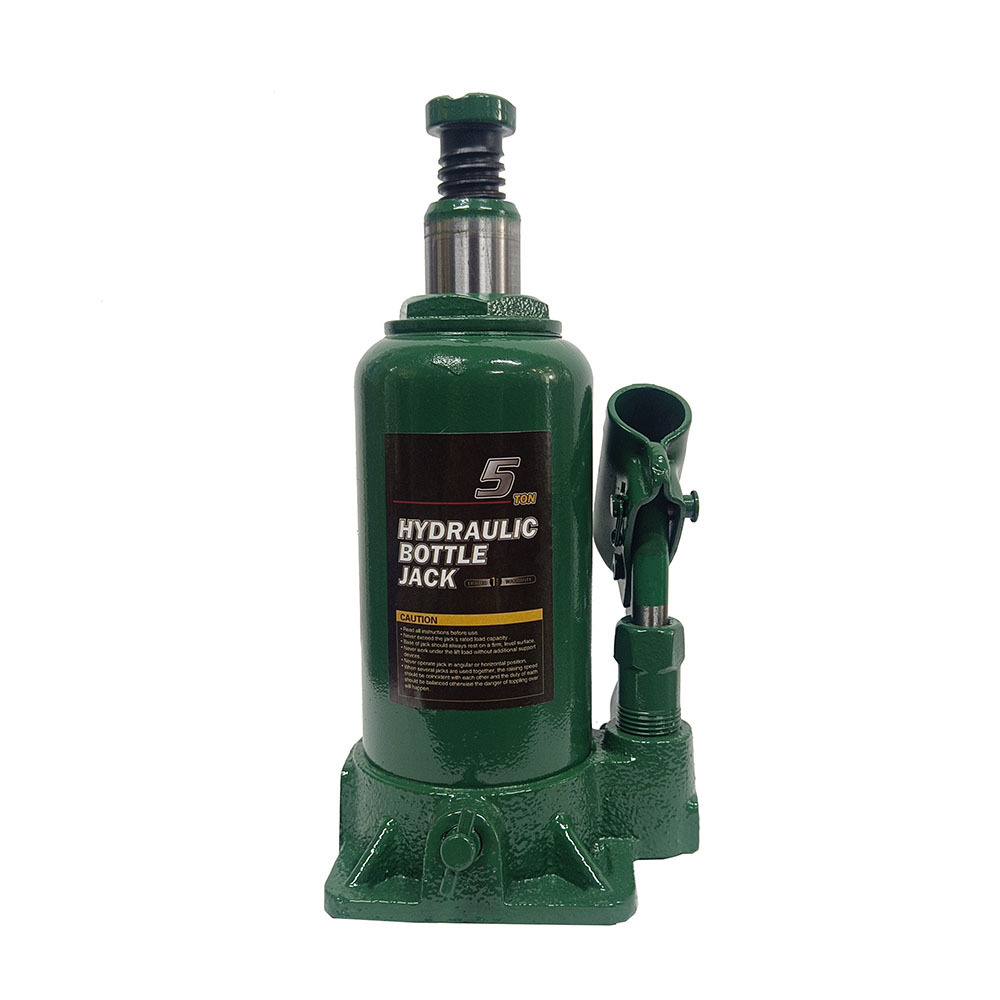

5ton hydraulic bottle jack
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
TBJ0501
-
Warranty:
-
1 Years, 12 Months
-
Color:
-
Customized Color Acceptable
-
Packing:
-
Color Box
-
MOQ:
-
300PCS
-
Application:
-
Lifting Tools
-
Material:
-
Steel
-
Lift Height(mm):
-
125MM
-
N.W:
-
3.3KG
-
Model:
-
TBJ0501
-
Product name:
-
5ton hydraulic bottle jack
Product Description
|
Model
|
TBJ0501
|
|
Capacity
|
5ton
|
|
Min.H
|
195mm
|
|
Lifting.H
|
125mm
|
|
Adjust.H
|
60mm
|
|
Max.H
|
380mm
|
|
N.W
|
3.3kg
|
|
Qty/Ctn
|
5
|
|
Package Size
|
64.5*14*23cm
|
Direction for use
Caution
Read all instructions before use
Never exceed the jack's rated load capacity
Base of jack should always rest on a firm, level surface
Never work under the lift load without additional support devices
Never operate jack in angular or horizontal position
Read all instructions before use
Never exceed the jack's rated load capacity
Base of jack should always rest on a firm, level surface
Never work under the lift load without additional support devices
Never operate jack in angular or horizontal position
