Quick Details
-
Frequency:
-
50/60HZ
-
Welding Area:
-
spot welding
-
Dimensions:
-
carton 400mm*150mm*150mm
-
Use:
-
Plastic Welding
-
Weight (KG):
-
1.4 KG
-
Application:
-
plastic wedling
-
Product name:
-
hot air welding gun
-
Certificate:
-
CE, RoHS
-
Hot Air Pressure:
-
3000Pa
-
For Application Range:
-
PE/PVC/PP/HDPE
-
Heat temperature:
-
20-700℃
-
Noise:
-
≤65db
-
Color:
-
green/black
-
Packing:
-
Carton/ Plastic box
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Jointer
-
Voltage:
-
110V/220V
-
Frequency:
-
50/60HZ
-
Welding Area:
-
spot welding
-
Dimensions:
-
carton 400mm*150mm*150mm
-
Use:
-
Plastic Welding
-
Weight (KG):
-
1.4 KG
-
Application:
-
plastic wedling
-
Product name:
-
hot air welding gun
-
Certificate:
-
CE, RoHS
-
Hot Air Pressure:
-
3000Pa
-
For Application Range:
-
PE/PVC/PP/HDPE
-
Heat temperature:
-
20-700℃
-
Noise:
-
≤65db
-
Color:
-
green/black
-
Packing:
-
Carton/ Plastic box
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None

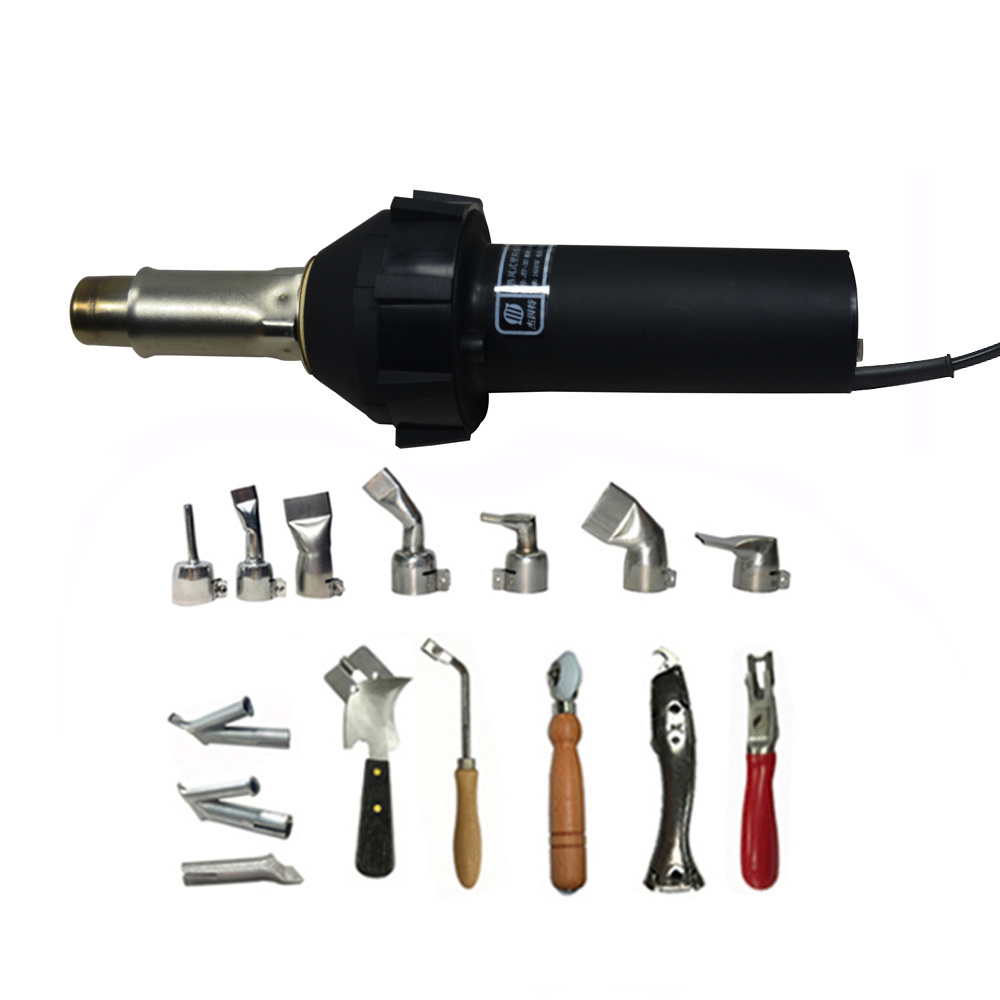

1600W 110V Hot Melting Plastic Heat Welding Gun for PVC Floor Repairing
JIT-310 hot air welding gun is double insulated, constant temperature system make you safely to adjust and control the temp, and used in welding hot melt plastic material such as PE,PVC,HDPE,EVA,PP,TPO ect. Also JIT-310 used in other works like hot forming, heat shrinking, drying and igniting.
Tips:
1. A ccessories INCLUDED in packing:
a. welding nozzle:2pcs (20mm, 40mm nozzle) d. Brush :1pc
b. silicone pressure roller:1pc e. Paper packing box :1pc
c. 1600W Heating elements :1pc
2. Optional accssories:
a. 20mm wide slot welding nozzle d. Speed triangle nozzle
b. Φ 8mm tubular nozzle e. Spot welding nozzle.
c. S peed round nozzle
|
Brand & Type |
JIT-310 Plastic hot air welding gun |
|
Voltage |
110V/220V |
|
Frequency |
50Hz/60Hz |
|
Power |
1600W |
|
Temperature |
20-700℃ Adjustable |
|
Air Volume |
Max 180L/min |
|
Air Pressure |
3000pa |
|
Temperature Regulate Way |
Knob Actuator |
|
Noise |
≤65db |
|
Net Weight |
1.5KG (including 3 meter electrical wire) |
|
Gross Weight |
2.5KG (carton box)/ 4KG (plastic box) |
|
Plug Standard |
Euro Plug/ U.S. Plug/UK Plug |
|
Outer Carton Package |
400mm*150mm*150mm |
|
Insulation Grade |
Class Ⅱ |
