ZN12-40.5 model indoor high voltage vacuum circuit breaker used in switchgear

ZN12-40.5 model indoor high voltage vacuum circuit breaker used in switchgear

FOB Reference Price: Get Latest Price

≥1 Pieces

US $300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: XIGAO

Model Number:: ZN12-40.5

Rated voltage:: 40.5KV 33kv

Rated current:: 630A/1250A/1600A/2000A/2500A/3150A

Rated frequency:: 50Hz/60Hz

Certificate:: ISO9001

Standard:: IEC62271

Mechanical Life:: 30000times

Rated short-circuit duration:: 4S

Rated Short-Circuit Breaking Current:: 25KA/31.5KA

Application:: Electric Power Transmission

Warranty:: 2 Years

Quick Details

Breaking Capacity:: 25kA

Rated Voltage:: 40.5KV

Rated Current:: 630A-3150A

Place of Origin:: Shaanxi, China

Brand Name:: XIGAO

Model Number:: ZN12-40.5

Rated voltage:: 40.5KV 33kv

Rated current:: 630A/1250A/1600A/2000A/2500A/3150A

Rated frequency:: 50Hz/60Hz

Certificate:: ISO9001

Standard:: IEC62271

Mechanical Life:: 30000times

Rated short-circuit duration:: 4S

Rated Short-Circuit Breaking Current:: 25KA/31.5KA

Application:: Electric Power Transmission

Warranty:: 2 Years

ZN12-40.5 model indoor high voltage vacuum circuit breaker used in switchgear

Product Description

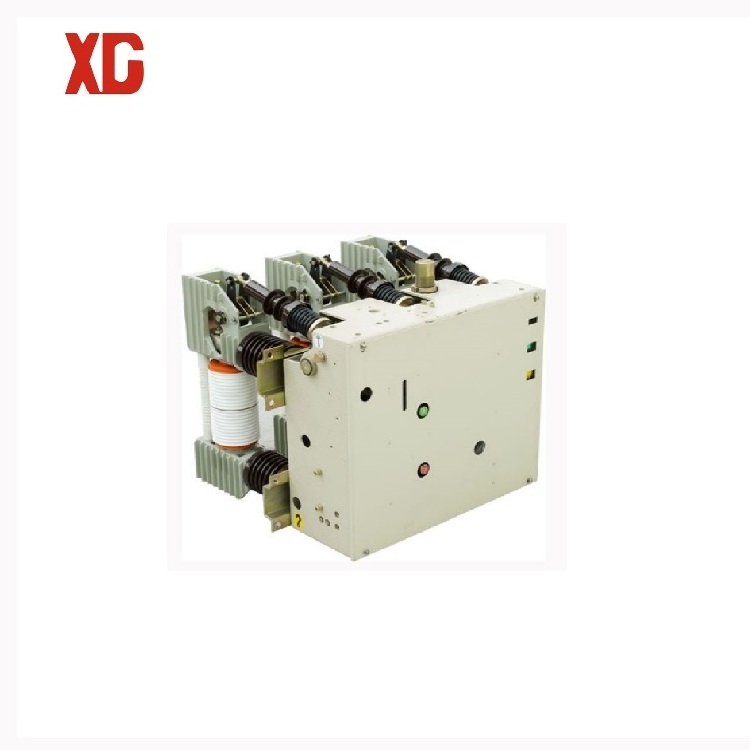

ZN12-40.5 model indoor high voltage vacuum circuit breaker used in switchgear

1. Introduction:

ZN12-40.5 type circuit breaker is an indoor device with three-phase AC 50Hzand a rated voltage of 40.5Kv.
The mechanism of this circuit breaker and the arcextinquishing chamber system are designed as an integraled Siemens

3AF type spring operating mechanism, which adopts dual-purpose motors for AC and DC energy storage operation or manual operation.
This product is designed with various distances such as 35mm, 400mm,460mm,etc.
It is more convenient to use with different types of switch cabinets. I can be used in fixed cabinel XN17-40.5or in JYN1-405KY10-40.5 cabinets.

2. Environmental Condition
The ambient temperature is not higher than+40 ℃and not lower than -10℃(storage and transportation at -30℃ are allowed)

The altitude is not more than 1000m
The daily average value of air relative humidity is not more than 95% and the monthly average value is not more than 90%

The daily average value of saturated vapor pressure is not more than 2.2x10MPa

the monthly average value is not more than1.8x10MPa

The earthquake intensity does not exceed 8 degrees
There is no fire, explosion, severe pollution, chemical corrosion and severe

Vibration.

3. Technical Data

No.	Item	Unit	Data
1	Rated voltage	KV	40.5
2	Rated current	A	1250,1600,2000,2500,3150
3	Rated frequency	HZ	50
4	Rated short time with stand current	KA	25,31.5
5	Rated short-circuit breaking current times		20
6	Mechanical life	times	30000
7	Rated lightning impulse with stand voltage	KV	185
8	Rated operating sequence		O-0.3S-CO-180S-CO
9	Raged voltage of closing and opening electromagnet	V	AC/DC220,110
10	Rated voltage of no-voltage release	V	AC/DC220,110
11	Rated short-duration power frequency withstand voltage (1min)	KV	95
12	Opening time	ms	30≤t≤75
13	Closing time	ms	30≤t≤65
14	Energy storage time	s	≤15
