Quick Details
-
Model Number:
-
C700-T
-
Type:
-
Electric Valve
-
Brand Name:
-
BEST
-
product name:
-

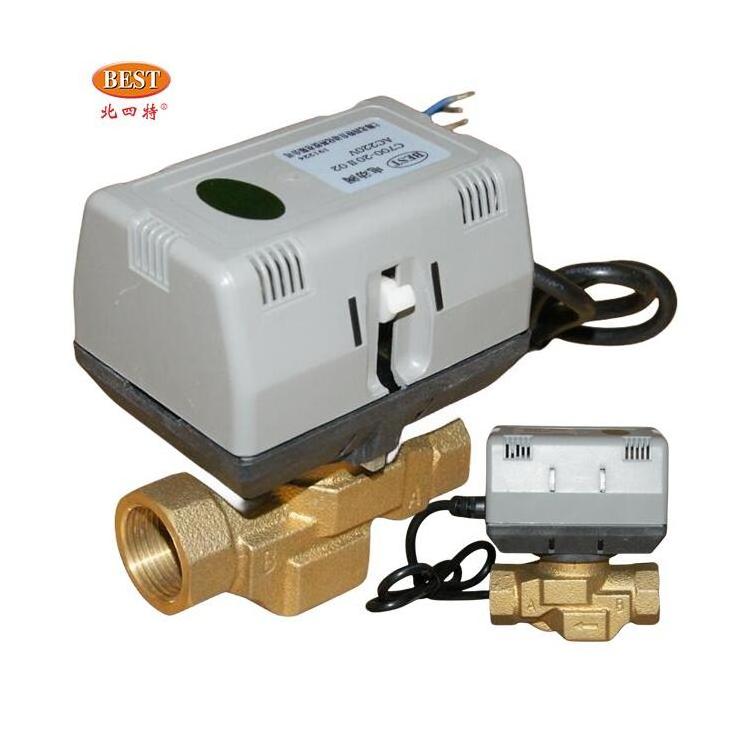

Motorized electric valve
-
voltage:
-
AC220V,AC110V,AC24V,AC12V
-
sealing material of valve seat:
-
POM plastic
-
working pressure:
-
0~16bar
-
size:
-
DN15~25
-
connection:
-
thread
-
function:
-
open closed type
-
body material:
-
cast brass
-
protection grade:
-
IP54
-
MOQ:
-
1
Quick Details
-
Port Size:
-
1/2"~1"
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
C700-T
-
Type:
-
Electric Valve
-
Brand Name:
-
BEST
-
product name:
-
Motorized electric valve
-
voltage:
-
AC220V,AC110V,AC24V,AC12V
-
sealing material of valve seat:
-
POM plastic
-
working pressure:
-
0~16bar
-
size:
-
DN15~25
-
connection:
-
thread
-
function:
-
open closed type
-
body material:
-
cast brass
-
protection grade:
-
IP54
-
MOQ:
-
1
Product Overview
Key Specifications/Special Features:
01.General purpose and be exclusively used for HVAC products
02.Valve body material : Cast Brass ( code: T)
03.Seal material of valve seat: normal--- POM(code: M), special requirement needs customization
04. Packing: normal---nitrile rubber (NBR, code: N)
Special---silicone rubber (code: G) or customer's specification.
05. Applicable ambient temp: -15～75℃
06.Single stroke time: 16s(normal), 8~30s (custom)
07.Zero leakage, with manual device, visual valve position indicator
08.Valve core is globe type, moves up & down to realize the function
09.Medium flow direction should be consistent with the arrow direction;Can be mounted at any angle
10.valve position limit switch, full open or fully closed, power off immediately, energy-saving, safe, long life span
11.Voltage normal: AC220/AC110/AC24/AC12V 50/60Hz, allowable fluctuation ±10%, customization accepted, currently no DC series
