Quick Details
-
Brand Name:
-
TEREK
-
Model Number:
-
LU-LKD-RC
-
Function:
-
Pressure adjustable
-
Theory:
-
Reciprocation pump
-
Equipment frame type:
-
Stainless steel frame
-
Pressure Source:
-
TEREK Air driven booster pump
-
Output pressure regulation:
-
Drive air regulator valve
Quick Details
-
Warranty:
-
24 months
-
Power:
-
Pneumatic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TEREK
-
Model Number:
-
LU-LKD-RC
-
Function:
-
Pressure adjustable
-
Theory:
-
Reciprocation pump
-
Equipment frame type:
-
Stainless steel frame
-
Pressure Source:
-
TEREK Air driven booster pump
-
Output pressure regulation:
-
Drive air regulator valve
Product Description
The structural design of the fluid pressurized control cabinet are compact. According to the special requirement of customers, the air driven fluid booster pumps, valves, control switches and other precision accessories are assembled in the frame or closed cabinet.
The test machine is equipped with one pressure recorder, which can record all the testing pressure data, which are quite helpful for customers to save the pressure testing data.
The pump will stop working automatically when the output pressure reaches the preset value. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.
Booster pump have a variety of pressure ratios. These series of pumps are ideal choice for various hydraulic power operations. The maximum operating pressure up to 640 Mpa.
This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.
TEREK pump adopt aluminum alloy and stainless steel materials. We offer the most complete range of models in the industry measured, such as: capability of ultimate pressure, flow or output pressure. Compatibility with a broad variety of liquids, such as oil, water, corrosive liquid and chemical liquid applications. High quality seals, long service life available.
Basically the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is reciprocating , The automatic reciprocating motion of the piston is controlled by a built-in four-way valve. TEREK pumps are air driven at a drive air pressure of 3 to 8 bar (29 to 116 psi) by the normal air compressor.
Refer to model technical parameters.
|
Product name |

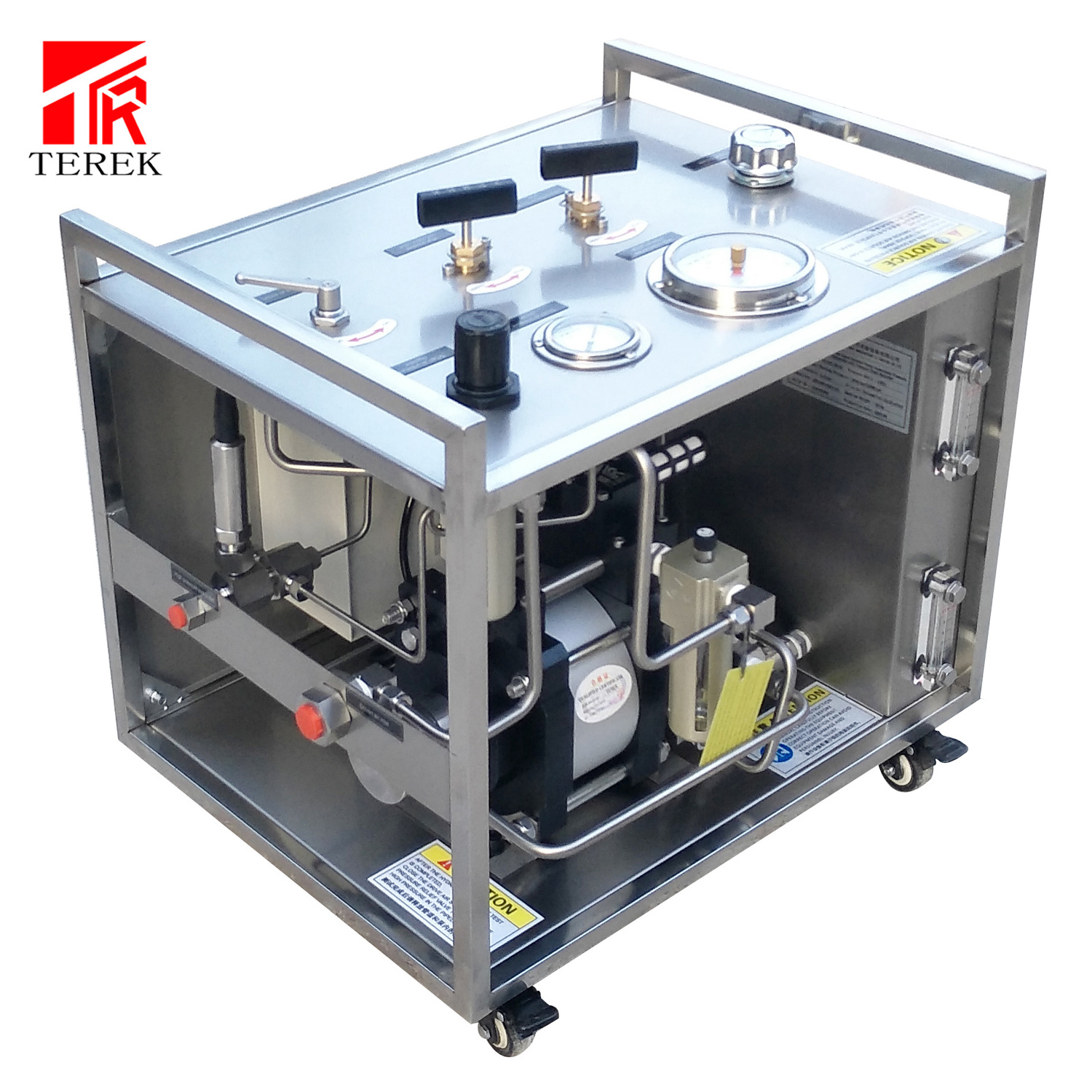

Pneumatic liquid booster pump hydrostatic test bench with chart recorder. |
|
Model |
LU-LKD-100-RC |
|
Pressure ratio |
100:1 |
|
Drive air source pressure |
3-8 bar. |
|
Medium |
Hydraulic oil or water |
|
Maximum outlet pressure |
800 bar |
|
When adjusting driven pressure is 5.0bar |
High pressure outlet pressure is 500bar./7250psi |
|
When adjusting driven pressure is 6.2bar |
High pressure outlet pressure is 620bar./8990psi |
|
Min gas inlet pressure |
15 bar |
|
Max gas inlet pressure |
320 bar |
|
Outlet pressure Control unit |
Drive air regulator valve |
|
Power source |
TEREK liquid booster pump |
|
Pressure control accuracy |
less than 1%F.S; |
|
Pressure measurement accuracy |
+ 0.4 % FS pressure gauge |
|
Valves and piping |
High pressure needle valve and stainless steel tube |
|
Equipment Weight |
52 KG |
|
Package Weight |
62 KG |
|
Equipment Dimension |
660*520*630 mm |
|
Packing size: |
720*590*650 mm |
|
Packing Specifications |
Standard export wooden case |
|
Connection size(inch) Gas inlet |
NPT1/4 |
|
Connection size(inch) Gas Outlet |
NPT1/4 |
|
Production time |
12-15 working days. |
Detailed Images
Product advantages :
1. Equipped with high quality pneumatic liquid booster pump, It can easily achieve any adjustable and controllable output pressure and flow.
2.The contact section is stainless steel, strong corrosion resistance, suitable for a variety of reagents;
3. It can be used at various levels of wellhead pressure, the pressure system has control function.
4.The output pressure can be adjusted through the pressure regulating valve, the system has to stop working under the set pressure;
5.Advanced technology, reasonable structure design. The features of small size, light weight, beautiful appearance;
6.By air/gas driven, no need to use electricity, there will be no spark generated, safe explosion-proof;
System configuration :
The liquid booster pump mainly consists of air drive chamber, pressurizing chamber, auto reversing valve, inlet check valve, outlet check valve, High quality sealing parts, air drive piston, pressurizing piston, silencer etc. TEREK hydraulic test bench system mainly includes an air driven liquid booster pump, Round chart recorder, water tank ,pressure gauges, liquid filter ,air filter, air regulating valve,control valves,pipelines, cabinet , pressure release valve etc.
1.Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessels, pressure switches, tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc.
2.Chemical liquid injection
3.Calibration of pressure gauges and transducers
4.Pressurization of pressure vessels for testing various components
5.Emergency shutdown systems for oil and gas wells
1. All pipes and fittings are made of stainless steel to ensure a long life
2. The pump will stop working automatically when the output pressure reaches the preset value,
3. Maintain long working hours with no energy expenditure
4. No dissipated heat during the pressure holding phase
5.No risk for explosion and spark in oil and gas field
6. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.
