Quick Details
-
Product name:
-
USED CRANE
-
Key words:
-
Construction Machinary Crawler Crane
-
Type:
-
Crawler Moving
-
Brand Name:
-
China Brand
Quick Details
-
Weight (KG):
-
10000 KG
-
Max. Lifting Load:
-
25 ton
-
Place of Origin:
-
Hainan, China
-
Product name:
-
USED CRANE
-
Key words:
-
Construction Machinary Crawler Crane
-
Type:
-
Crawler Moving
-
Brand Name:
-
China Brand
Product Overview

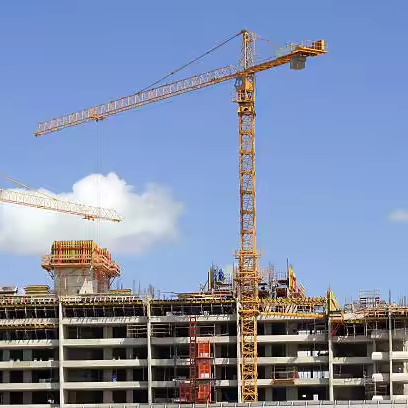

XGT7020-10S
The lifting arm is made of high-strength cold-formed steel with high strength, high safety and industry-leading lifting performance;
The maximum lifting capacity is 10t, the whole boom length is superior to the end of the boom, especially the short boom length lifting performance is more powerful;
Rich combination of boom length, the longest lifting arm 70m, 2.5m variable boom length, the shortest 30m, 17 kinds of boom length combination;
Independent height of 60m, tower body high stiffness design, the maximum attachment height industry-leading, lifting, slewing, luffing multi-agency synchronous operation, strong adaptability to working conditions;
Tower configuration 2.0m cross-section angle section L68B1, straight ladder / inclined ladder can be selected, the same series of tower, industry versatility, the other L68B1 rigidity and strength is better than the L68A1 standard section, the bearing capacity is stronger;
The three main mechanisms are fully frequency conversion, lifting, slewing and luffing run smoothly. Mechanisms and motors use industry-renowned first-line brands, high quality;
Fault self-diagnostic system, realizing a number of core fault diagnosis, real-time feedback information to the cell phone terminal, efficient identification of faults and rapid problem solving;
Driver's compartment overall electrophoretic spraying, ten years without rust and corrosion. Automotive-grade luxury design, with air cushion shock-absorbing automotive-grade seats, and another air conditioning external unit built-in, realizing the integration of driver's room and air conditioning transportation, and more convenient equipment management;
Intelligent dual-system control mode, realizing mechanical and electronic double protection of running limit and overload limit, higher safety and reliability;
Strong balance weight versatility, the same series or with similar models, balance weight specifications common, cost savings.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
XGT7020-10S1 Parameters
|
|
1
|
Product Model
|
XGT7020-10S1
|
|
2
|
Product Type
|
tower crane
|
|
3
|
Rated lifting moment
|
250t.m
|
|
4
|
Rated lifting moment t-m
|
250t.m
|
|
|
Maximum lifting capacity
|
10 t
|
|
|
Max. free-standing height
|
60m
|
|
8
|
Max. attachment height
|
300m
|
|
9
|
Lifting capacity rope
|
530m
|
|
15
|
core component
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear,
|
PRODUCT CONFIGURATION
Tower Crane Chip
Tower crane arm
Tower crane booms
