Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Stainless Steel Wire Mesh
-
Brand Name:
-
Hitex
-
Product name:
-
Stainless Steel Wire Mesh
-
Color:
-
Black
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Stainless Steel Wire Mesh
-
Brand Name:
-
Hitex
-
Product name:
-
Stainless Steel Wire Mesh
-
Color:
-
Black

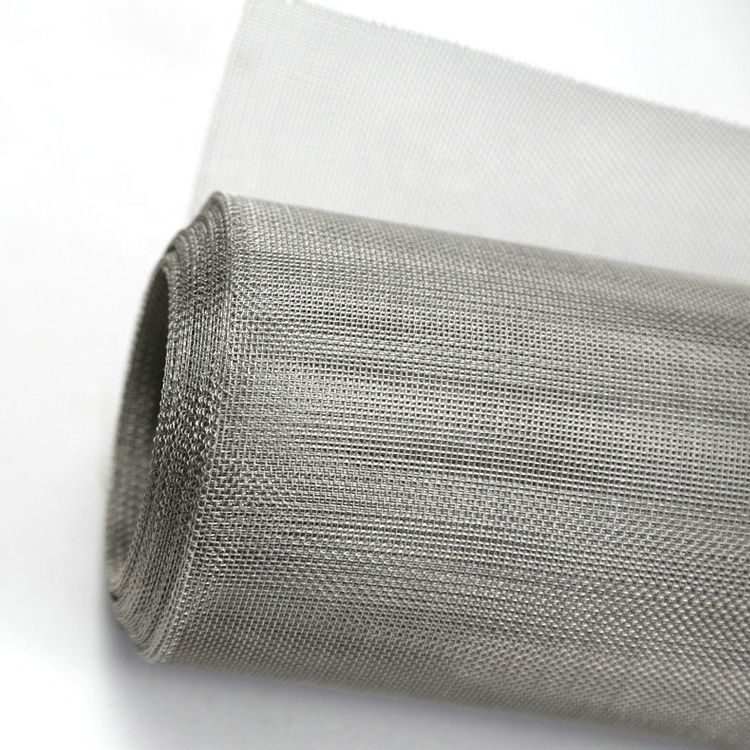

Stainless Steel Wire Mesh
Stainless Steel Wire Mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
Used for water, oil and other liquid precision pressure filter,fuel filter, vacuum filter and is suitable for the aerospace, petroleum, chemical, chemical fiber, rubber,tire manufacturing, metallurgy, medicine, food and other industries, pressure is not easy to deformation,high temperature resistant, do the necessary material sintering net.
|
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area |
Weight |
||
|
Mesh Acount |
Inch |
mm |
inch |
mm |
% |
LB/100SQfoot |
|
10X10 |
0.02 |
0.51 |
0.08 |
2.03 |
64 |
26.1 |
|
20X20 |
0.02 |
0.508 |
0.03 |
0.76 |
36 |
55.2 |
|
30X30 |
0.013 |
0.33 |
0.0203 |
0.52 |
37.1 |
34.8 |
|
50X50 |
0.009 |
0.229 |
0.011 |
0.28 |
30.3 |
28.4 |
|
60X60 |
0.0075 |
0.191 |
0.0092 |
0.23 |
30.5 |
23.7 |
|
70X70 |
0.0065 |
0.165 |
0.0078 |
0.2 |
29.8 |
20.8 |
|
80X80 |
0.0065 |
0.165 |
0.006 |
0.15 |
23 |
23.2 |
|
100X100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
|
200X200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
|
300X300 |
0.0051 |
0.0381 |
0.0018 |
0.0457 |
29.7 |
3.04 |
|
400X400 |
0.001 |
0.0254 |
0.0015 |
0.37 |
36 |
3.3 |
|
500X500 |
0.001 |
0.0254 |
0.001 |
0.0254 |
25 |
3.8 |
*Specific products could be made according to customers’requirements.
l Material for Stainless Steel Wire Mesh and Woven Wire Cloth : 304 304L 316 316L
l Weaving Types of Stainless Steel Wiremesh: Plain Weave, Twilled Weave, Dutch Plain Weave, Dutch Twilled Weave, Reverse Weave, Five Heddle Weave
Hitex established in 2002, is a leading manufacturer and supplier of fiberglass products for the applications of transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, etc. Hitex engages in the export of fiberglass yarn and roving, fiberglass chopped strand mats, fiberglass woven roving,fiberglass fabrics etc. We design, build, manufacture and quality control our own products allowing the strictest of specifications, which directly benefit from Hitex years of experience gained in the global Composite market. Hence, all of our production plants are certified with ISO9001/ISO14001.
If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side.
Q3.Mode of transportation?
By sea or by air.
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed.
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A.
