Quick Details
-
Brand Name:
-
STC
-
Model Number:
-
AU80
-
Material:
-
Alloy Steel
-
Product name:
-
Hand Taps
-
Application:
-
Thread Tapping
-
Standard:
-
ANSI
-
surface:
-
sand blasting
-
Size:
-
M2-M68
-
Flute:
-
Straight
-
payment:
-
T/T
-
shipment:
-
sea
Quick Details
-
Type:
-
TAP
-
Number of Pieces:
-
1
-
Place of Origin:
-
Jiangsu, China, Jiangsu, China (Mainland)
-
Brand Name:
-
STC
-
Model Number:
-
AU80
-
Material:
-
Alloy Steel
-
Product name:
-
Hand Taps
-
Application:
-
Thread Tapping
-
Standard:
-
ANSI
-
surface:
-
sand blasting
-
Size:
-
M2-M68
-
Flute:
-
Straight
-
payment:
-
T/T
-
shipment:
-
sea

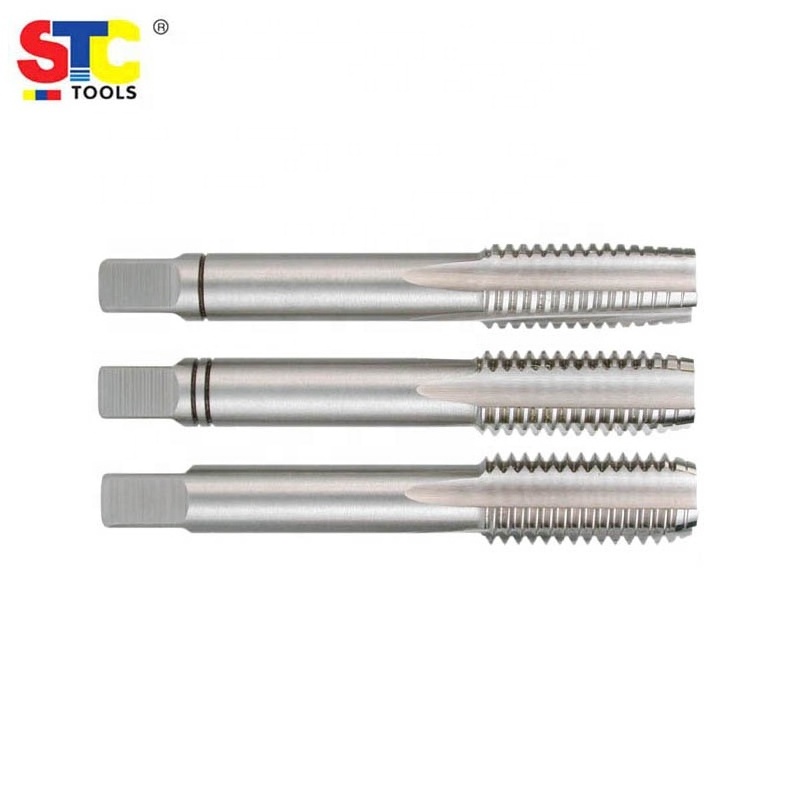

Hand taps with sand blasting ANSI standard
- HSS or alloy steel,ground thread or rolled thread.
- Type of Thread:Metric ISO thread.
- Tap Tolerance:Class 2 for 6H fit.
- Flute Type:Straight flutes.
- Surface Treatment:Bright.
- Application:For hand tapping of through or blind holes in ferrous and non-ferrous Alloys.
- Size: M3-M36.
|
Size |
Overall Length |
Thread Length |
|
M3x0.5 |
40 |
11 |
|
M3x0.6 |
40 |
11 |
|
M3.5x0.6 |
45 |
13 |
|
M4x0.7 |
45 |
13 |
|
M4x0.75 |
45 |
13 |
|
M4.5x0.75 |
50 |
16 |
|
M5x0.8 |
50 |
16 |
|
M5x0.9 |
50 |
16 |
|
M6x1 |
50 |
19 |
|
M7x1 |
50 |
19 |
|
M8x1.25 |
56 |
22 |
|
M9x1.25 |
63 |
22 |
|
M10x1.5 |
70 |
24 |
|
M11x1.5 |
70 |
24 |
|
M12x1.75 |
75 |
29 |
|
M14x2 |
80 |
30 |
|
M16x2 |
80 |
32 |
|
M18x2.5 |
95 |
40 |
|
M20x2.5 |
95 |
40 |
|
M22x2.5 |
100 |
40 |
|
M24x3 |
110 |
50 |
|
M27x3 |
110 |
50 |
|
M30x3.5 |
125 |
56 |
|
M30x3 |
125 |
56 |
|
M33x3.5 |
125 |
56 |
|
M36x4 |
150 |
63 |
