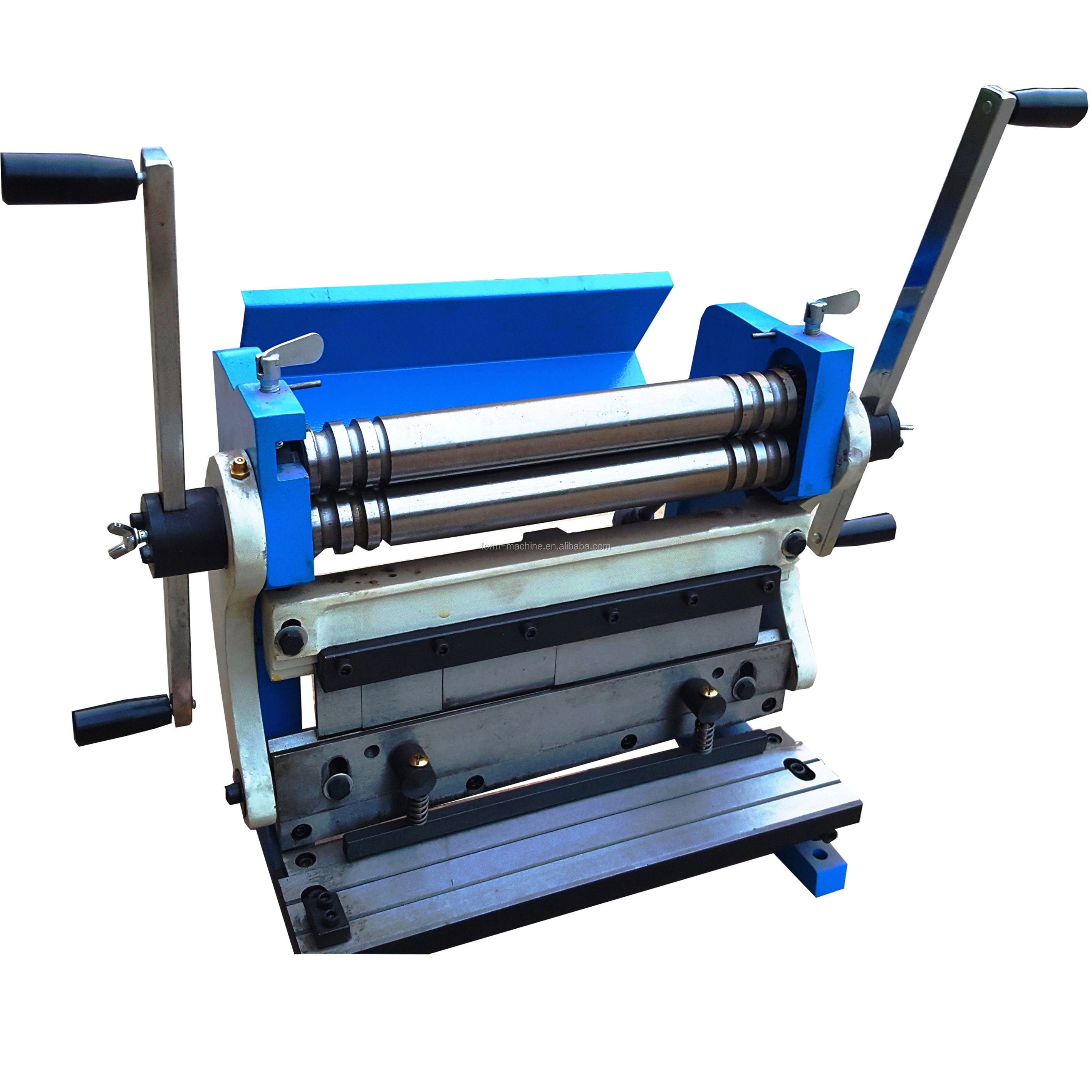

Combination Sheet Metal Manual Shearing machine for Hand roll bending machine price

Combination Sheet Metal Manual Shearing machine for Hand roll bending machine price

FOB Reference Price: Get Latest Price

≥1 Sets

US $1450

≥10 Sets

US $1100

≥20 Sets

US $450

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rated Power:: 0

Dimension(L*W*H):: 840x460x670mm

Weight (KG):: 347 KG

After-sales Service Provided:: Engineers available to service machinery overseas

brand name:: Metform

product name:: slip roll bending machine

type:: FM-2.5*1300

place of origin:: Shanghai,songjiang

payment terms:: L/C T/T

Main Motor:: 1.5kw

Weight:: 540 kg

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: Metform

Voltage:: 0

Rated Power:: 0

Dimension(L*W*H):: 840x460x670mm

Weight (KG):: 347 KG

After-sales Service Provided:: Engineers available to service machinery overseas

brand name:: Metform

product name:: slip roll bending machine

type:: FM-2.5*1300

place of origin:: Shanghai,songjiang

payment terms:: L/C T/T

Main Motor:: 1.5kw

Weight:: 540 kg

Products Description

3 IN-1 -1.5 /1320

l deal combination machine for shee t metal machining to a length of 1320mm and a thickness of 1.5mm cutting stop

Roll bending starting with diameter of 39mm

Folding with a max. angle of 90"

Adjustable rear stop

Removable male dies with female dies

Back gauge standard equipment

With two position handles
Shearing mild steel or equipment
Press brake- -bends box and pan works
Sectional fingers allow box and pan works

Slip roll provided with forming grooves

Heavy- -duty type
Back gauge standard equipment

With two position handles
Combination shear brake and roll in one

compact machine, capacity up to 1 . 5mm

Model	Max. rolling thickness (mm)	Max. shearing thickness (mm)	Dia. of roll(mm)	bed width(mm)	max.bending angle	N.W/G.W(kg)
3 IN 1/305	1	1	39	305	90°	43/45
3 IN 1/610	1	1	39	610			112/123
3 IN 1/760	1	1	39	760			136/153
3 IN 1/1016	1	1	40	1016			195/212
3 IN 1/1067	1	1	42	1067			276/297
3 IN 1.5/1067	1.5	1.5	50	1067			390/440
3 IN 1/1320	1	1	60	1320			349/377
3 IN 1.5/1320	1.5	1.5	60	1320			470/530
