Quick Details
-
Weight:
-
1200 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Depth:
-
70M
-
Mobility:
-
Move by crawler
-
Diesel engine:
-
25 single cylinder (optional)
-
Oil pump:
-
Single pump
-
Walking mode:
-
variable box walking
-
Walking speed:
-
7-15km/h
-
Travel of slide frame:
-
2.8 meters
-
Pressure system:
-
cylinder chain afterburner
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
BDM
-
Dimension(L*W*H):
-
2300mm*1100mm*2300mm
-
Weight:
-
1200 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Depth:
-
70M
-
Mobility:
-
Move by crawler
-
Diesel engine:
-
25 single cylinder (optional)
-
Oil pump:
-
Single pump
-
Walking mode:
-
variable box walking
-
Walking speed:
-
7-15km/h
-
Travel of slide frame:
-
2.8 meters
-
Pressure system:
-
cylinder chain afterburner

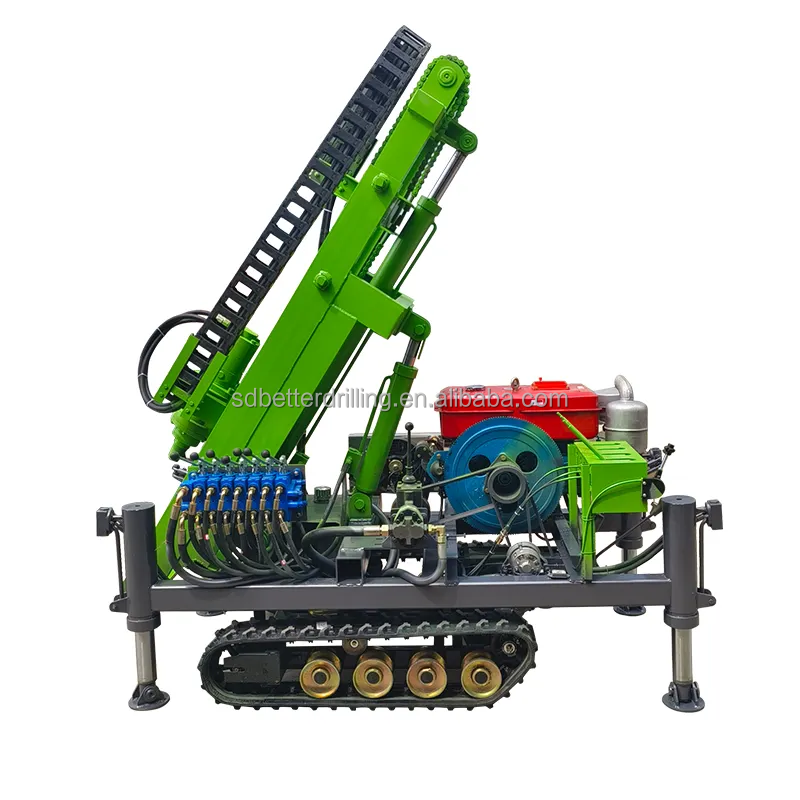

Small Crawler Drilling Rig Diesel Ground Screw Piling Rig Tunnel Pit Boring Rig
Crawler photovoltaic pile driver self-propelled auger drilling rig foundation pile driver small crawler hydraulic pile driver
telegraph pole digging machine drilling machine crawler small drilling machine
Photovoltaic screw piling machine Flexible steering, easy drilling, drilling blocks Suitable for road, railway, bridge, reservoir, municipal, garage, basement, solar photovoltaic system and other piling.
|
Diesel engine |
25 single cylinder (optional) |
|
Power head |
hydraulic pneumatic type |
|
Oil pump |
Single pump |
|
Walking mode |
variable box walking |
|
Drilling diameter |
50-300mm(custom) |
|
Depth |
1m to 7 0m(custom) |
|
Pressure system |
cylinder chain afterburner |
|
Walking speed |
7-15km/h |
|
Hydraulic working pressure |
20mpa |
|
Heat dissipation system |
hydraulic radiator |
|
Pile driving height |
1 to 3 meters |
|
Winch power |
hydraulic (optional) |
|
Travel of slide frame |
2.8 meters |
|
Legs |
two (optional) |
|
Length * width * height |
2300mm*1100mm*2300mm |
|
Weight |
1.2t |
