Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BRD
-
Model Number:
-
wall panel sandwich
-
Product name:
-
wall panel sandwich
-
Steel Thickness:
-
0.4-0.7mm
-
Core Thickness:
-
50/75/100mm
-
Material:
-
Galvanzied Steel
-
Core material:
-
EPS
-
Length:
-
11.8m
-
Density:
-
5-30kg/m3
-
Color:
-
Required
-
Advantage:
-
Easy Install/Waterproof/Fireproof
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BRD
-
Model Number:
-
wall panel sandwich
-
Product name:
-
wall panel sandwich
-
Steel Thickness:
-
0.4-0.7mm
-
Core Thickness:
-
50/75/100mm
-
Material:
-
Galvanzied Steel
-
Core material:
-
EPS
-
Length:
-
11.8m
-
Density:
-
5-30kg/m3
-
Color:
-
Required
-
Advantage:
-
Easy Install/Waterproof/Fireproof
Product Description
Wall Panels :
50 mm, 75 mm, 100 mm, 150 mm, 200 mm
Roof Panels:
50 mm, 75 mm, 100 mm, 150 mm, 200 mm
We are among the prominent
manufactors
of

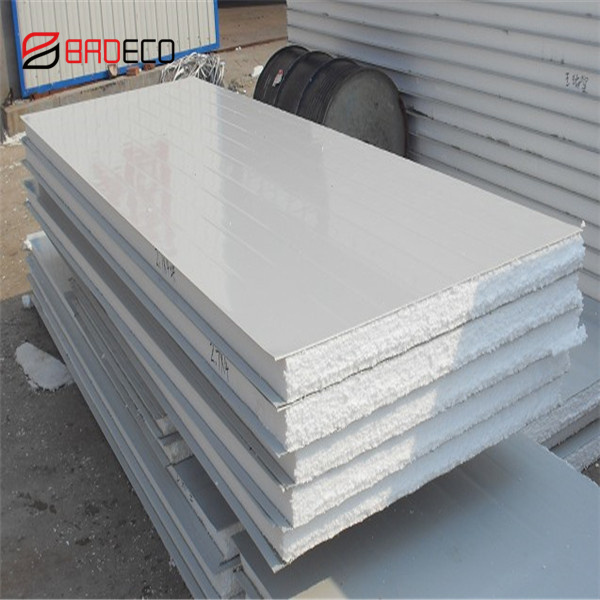

EPS Sandwich Panels
. Our range of panels is made available in zinc, profile, pre-painted, galvalume coated steel and stainless steel sheets. EPS sandwich panels withstand extreme temperatures, and have a high load bearing capacity. Our panels find their application in cold storage, workshops, shelters, roof top houses etc.We offer the range of thickness of as follows with various fascia options:
|
Length
|
Standard lengths are from 2 m to 10 m (max. 12 m)
|
|
|
||
|
Plate Materials
|
steel sheet coated with polyester paint,
stainless steel Aluminum steel sheet |
|
|
||
|
Thermal Conductivity
|
0,030 [W/mK] at 10 degree
|
|
|
||
|
U Value
|
0.20- 0.80 (W / m2 K)
|
|
|
||
|
R Value
|
8-30 (Btu/ hr/ ft2/ of)
|
|
|
||
|
EPS Density (Kg / m2)
|
5-30 Kg/ m3 (Standard)
|
|
|
||
|
Compressive strength
|
1.95 at 10% deformation (Kg/m2)
|
|
|
||
|
Adhesive Strength
|
2.4 (Kg/m2)- foam to steel
|
|
|
||
|
Fire Class
|
Self Extinguishing
|
|
|
||
Product details
Features:
1. Heat and sound insulation. Temperature suitable for eps sandwich panel ranges from -200 centigrade to 150 centigrade.
2. Waterproof, anti-corrosion, good chemical resistance, insect-free etc.
3.Advanced Tech: Automatic Italian rolling machines make the whole process of manufacture effective.
4.Energy conservation, environmental protection, economical, heat insulting, good structure, easy-doing construction.
5. Light weight enough to reduce building expense.
6.Time can be saved on a building project due to the simple installation.
Logistics Park
United Kingdom Logistics Park project, used 50 mm PU insulated wall panel.
Industrial cold storage
New Zealand industrial cold storage, used 150 mm PU sandwich panel.
Installation Process
1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.
2, Before the installation of eps sandwich wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.
3, Before installation eps sandwich wall panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.
4, Eps sandwich wall panel links with ground.
Lateral links: fixed eps sandwich panel with the ground at the other end of the round hole with steel frame fixed, connection between the two plate mouth involution, if occurrence crack of the connectors available heat preservation to fill.
Vertical links: the gap between plates, using the dedicated button concave groove in the fixed eps sandwich wall panel.
Company
Our Service
Pre-Sales Service
* Design, produc, and full technical support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Engineers available to guid construction on site.
* Long life time quality assurance.
* Extend the service life of panels.
Sales to 71 Oversea Country
Our company has got ISO9001 and TUV certification, and our products has got CE certification. The distributor covers more than 21 cities in the world. BRD Group export sales net has covered over 35 countries and places, such as America, United Kingdom, Canada, Russia, Peru, Vietnam, Trinidad and Tobago, Australia, Sweden, and some other countries in Europe, Southeast Asia ,South Africa and other places. We sincerely hope to cooperate with you to create a double win situation.
