- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhongke
-
Voltage:
-
380v 50hz 3p
-
Dimension(L*W*H):
-
7.4X1.5X1.4M
-
Weight:
-
6500 kg
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Provided
-
Roller material:
-
High Grade 45# Steel
-
Cutting blade material:
-
Cr 12Mov
-
Shaft material:
-
High Grade No.45 Forged
-
Control system:
-
PLC System
-
Raw material:
-
PPGI PPGL GI GL
-
Main frame:
-
350H Steel
-
Application:
-
Roof Sheet Production
-
Cutting type:
-
Hydraulic Cutting
-
Color:
-
Customised
Quick Details
-

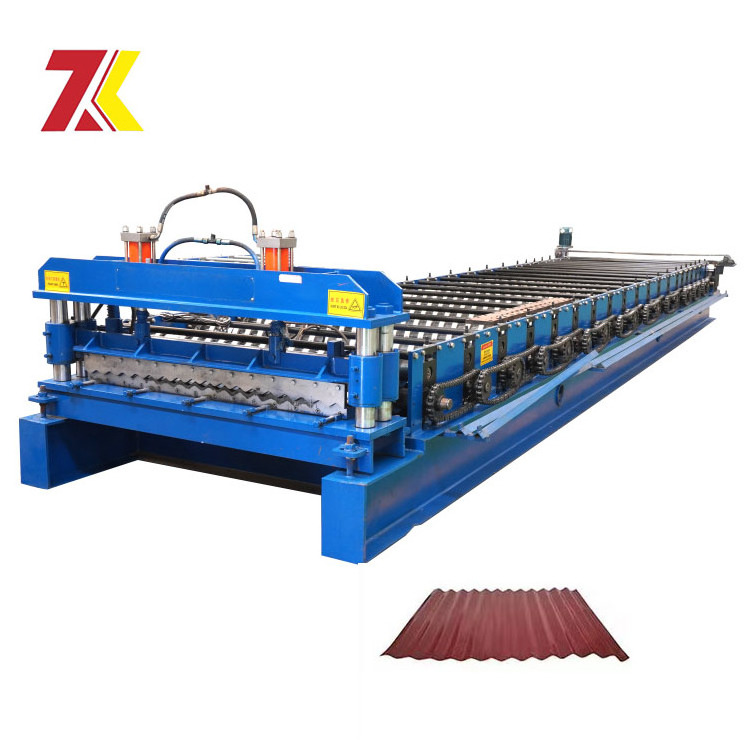

Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhongke
-
Voltage:
-
380v 50hz 3p
-
Dimension(L*W*H):
-
7.4X1.5X1.4M
-
Weight:
-
6500 kg
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Provided
-
Roller material:
-
High Grade 45# Steel
-
Cutting blade material:
-
Cr 12Mov
-
Shaft material:
-
High Grade No.45 Forged
-
Control system:
-
PLC System
-
Raw material:
-
PPGI PPGL GI GL
-
Main frame:
-
350H Steel
-
Application:
-
Roof Sheet Production
-
Cutting type:
-
Hydraulic Cutting
-
Color:
-
Customised
PRODUCT DESCRIPTION
|
Formed Material
|
PPGI,GI,AI
|
|
Thickness:0.3-0.8mm
|
|
||
|
Decoiler
|
Hydraulic decoiler
|
|
Manual decoiler(will give you as free)
|
|
||
|
Main body
|
Roller station
|
|
18 rows(As your requirement)
|
|
||
|
|
Diameter of shaft
|
|
80mm solid shaft
|
|
||
|
|
Material of rollers
|
|
45# steel, hard chrome plated on the surface
|
|
||
|
|
Machine body frame
|
|
350 H steel
|
|
||
|
|
Drive
|
|
Double Chain transmission
|
|
||
|
|
Dimension(L*W*H)
|
|
7.4X1.5X1.4M
|
|
||
|
|
Weight
|
|
About 6500KG
|
|
||
|
Cutter
|
Automatic
|
|
cr12mov material, no scratches, no deformation
|
|
||
|
Power
|
Main Power
|
|
3KW
|
|
||
|
Voltage
|
380V 50Hz 3Phase
|
|
As your requirement
|
|
||
|
Control system
|
Electric Box
|
|
Customized(famous brand)
|
|
||
|
|
Language
|
|
English(Support multiple languages)
|
|
||
|
|
PLC
|
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|
||
|
Forming Speed
|
0-15m/min
|
|
The speed depends on the shape of the tile and the thickness of the material.
|
|
||
COMPANY INTRODUCTION
PRODUCT LINE
OUR CUSTOMERS
PACKAGING & LOGISTICS
FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
