PP Plastic Biaxial Geogrid For Subgrade Stabilization

PP Plastic Biaxial Geogrid For Subgrade Stabilization

FOB Reference Price: Get Latest Price

≥1000 Square meters

US $0.4

≥5000 Square meters

US $0.35

≥10000 Square meters

US $0.3

≥20000 Square meters

US $0.25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: pavement reinforcement, road construction, pond,landfill,mining,dam,fish,pond,road,etc,

Design Style:: Modern

Place of Origin:: Shandong, China

Brand Name:: taiwei, Obor

Model Number:: geogrid

Package:: Plastic Woven Bags

Keywords:: Polyester,Geogrid

MOQ:: 1000 Square Meter

Color:: Black

Width:: 1-6m

Quick Details

Warranty:: More than 5 years

After-sale Service:: Online technical support, Free spare parts, Return and Replacement

Project Solution Capability:: total solution for projects

Application:: pavement reinforcement, road construction, pond,landfill,mining,dam,fish,pond,road,etc,

Design Style:: Modern

Place of Origin:: Shandong, China

Brand Name:: taiwei, Obor

Model Number:: geogrid

Package:: Plastic Woven Bags

Keywords:: Polyester,Geogrid

MOQ:: 1000 Square Meter

Color:: Black

Width:: 1-6m

Product Description

Geogrid

Product introduction :

T he grid products with uniform mesh and horizontal mesh sizeproduced by extrusion and traction process with polymer and nano-scale carbon black

Features:

1.Increase the bearing capacity of the road (ground) base and extend the service,used in coal mine underground false roof network. port the stability of the slope planting mats greening environment;2.Prevent the road (ground) surface from collapsing or cracking, 3.Strengthen the soil slope to prevent soil erosion;life of the road (ground) base; 4.can replace the metal mesh,and keep the ground beautiful and tidy;

Specification

Specification	TOSG15-15	TGSG20-20	TGSG30-30	IGSG40-40	TGSG45-45
Longitudinal tensile yield force per mere (KN/m)>	15	20	30	40	45
Transverse tensile yield force per metre (KN/m)>	15	20	30	40	45
Longitudinal yield elongation (%) ≤			13
Transverse yield elongation (%) ≤			16
Tensile force at longitudinal 2% elongation (KN/m) ≥	5	8	11	13	16
Tensile force at transverse 2% elongation K (KN/m) ≥	7	10	13	15	20
Tensile force at longitudinal 5% elongation (KN/m) ≥	8	10	15	16	25
Tensile force at transverse 5% elongation (KN/m) ≥	10	13	15	20	22
Width (m)	1·-6

Construction

Geotextile

Product Application:

Mainly used for reinforcement,filtration,isolation and drainage of water conservancy,environment
protection,roads,railways,dams,beach coatings,metallurgical mines,etc.
Product features:
High mechanical index,good creep performance;strong corrosion resistance,anging resistance,excellent heat resistance and
excellent hydraulic performance.

HDPE Geomembrane

Features:

HDPE geomembrane has excellent environmental stress crack resistance, large operating temperature (-60~- +60) and

ong service life (50 years). Application:

Environmental protection engineering, water conservancy geotechnical engineering, municipal engineering, land- caping, petrochemical. Mining, transportation facilities engineering, agriculture, aquaculture (fish ponds, linings of shrimp ponds, etc.).

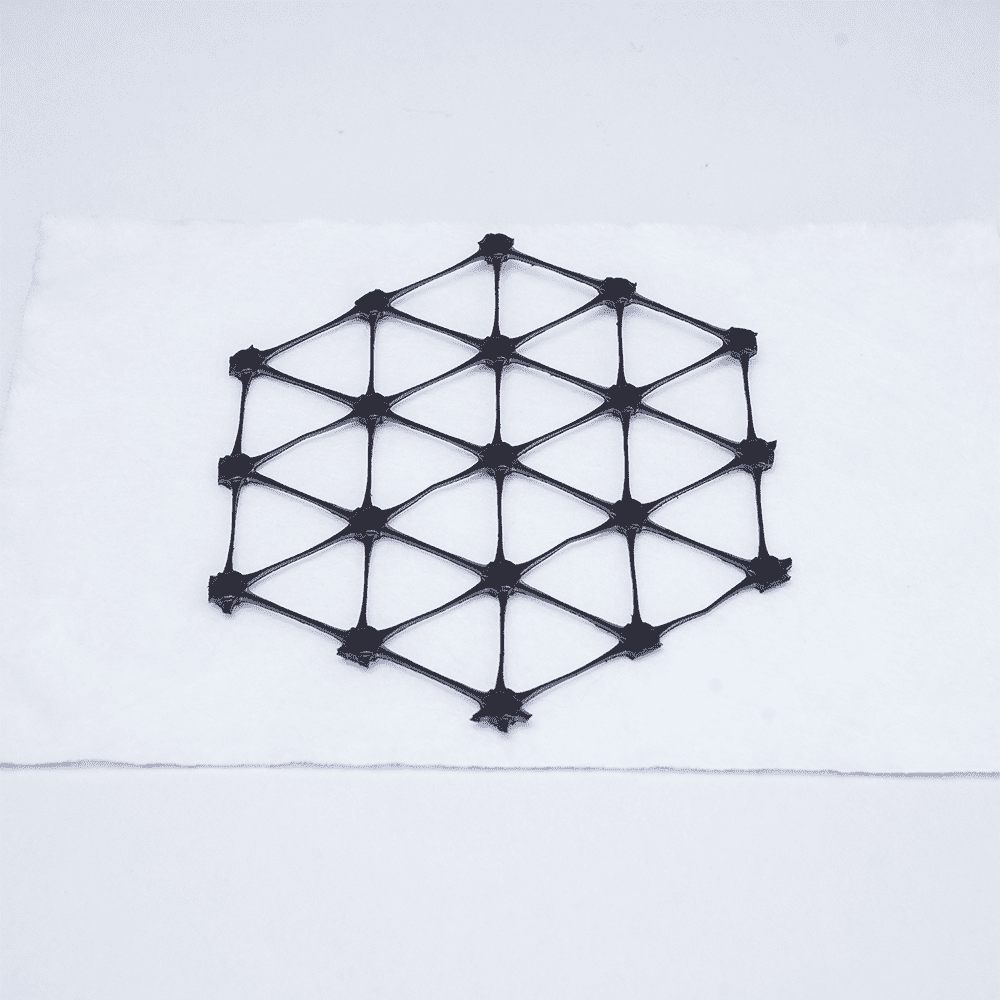

Biaxially streched plastic geogrid

Product introduction :

The grid products with uniform mesh and horizontal mesh sizeproduced by extrusion and traction process with polymer and nano-scale carbon black

Application:

It is suitable for foundation reinforcement of various dams and subgrade re-inforcement, slope protection, wall reinforcement, large airports, parking lots, dock yards, etc.
