Compact dimension
Good control function
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YIHAI
-
Model Number:
-
HFS-25
-
Operating Temperature:
-
0 ~120
-
Product name:
-
Water Flow Switch
-
Application:
-
Monitor Liquid Flow
-
Output:
-
SPDT 15A /220VAC
-
Type:
-
Paddle type
-
Material:
-
Brass
-
Voltage:
-
220Vac
-
Certification:
-
unavailable
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
10~100L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIHAI
-
Model Number:
-
HFS-25
-
Operating Temperature:
-
0 ~120
-
Product name:
-
Water Flow Switch
-
Application:
-
Monitor Liquid Flow
-
Output:
-
SPDT 15A /220VAC
-
Type:
-
Paddle type
-
Material:
-
Brass
-
Voltage:
-
220Vac
-
Certification:
-
unavailable
Product Overview

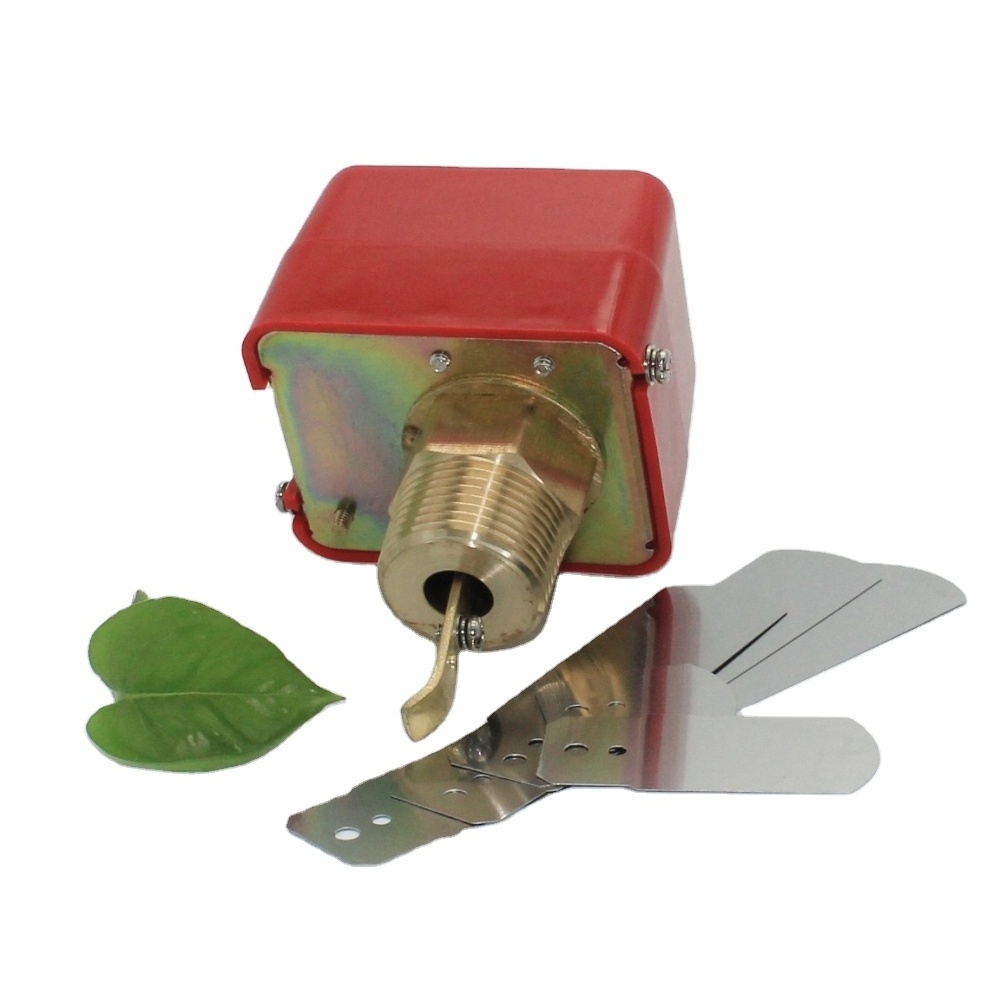

HFS Water Flow Switch
HFS Series water flow switch is used to detect the liquid flow in the pipe line, when the flow reaches the set point, it sending a
trip signal to another device in the system, such as a pump, to protect it from damage and for circuit protection.
trip signal to another device in the system, such as a pump, to protect it from damage and for circuit protection.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Voltage
|
AC125-250, 50/60Hz
|
|
Control Type
|
Paddle
|
|
Maximum Static Pressure
|
10kg/cm2, 20kg/cm2
|
|
Medium Temperature
|
0-100℃（32－212℉）
|
|
Ambient Temperature
|
0-60℃（32-140℉）
|
|
Connection
|
Screw Terminal
|
|
Case
|
Plastic cover
|
|
IP Class
|
IP53
|
|
Material of Paddle
|
SS
|
|
Material of Connection
|
Brass
|
|
Max. Working Pressure
|
1.0MPa
|
|
Flow Range
|
18-260L/Min
|
Dimenstions
Installations
1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The water flow switch should be installed somewhere easy to install and maintain.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The water flow switch should be installed somewhere easy to install and maintain.
