Quick Details
-
Face Plate:
-
260Lx30WX48H(mm)
-
Strike:
-
100Lx25Wx3H(mm)
-
Autolock Time Delay:
-
0,3,6,9sec
-
Signal Output:
-
NO/NC/COM
-
Weight:
-
1.436kg
-
Face place materia:
-
Stainless Steel
-
Start Current:
-
950mA
-
Standby Current:
-
150mA
-
Suitable For:
-
Wooden Door,Metal Door
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PROYU
-
Voltage:
-
12DV
-
Face Plate:
-
260Lx30WX48H(mm)
-
Strike:
-
100Lx25Wx3H(mm)
-
Autolock Time Delay:
-
0,3,6,9sec
-
Signal Output:
-
NO/NC/COM
-
Weight:
-
1.436kg
-
Face place materia:
-
Stainless Steel
-
Start Current:
-
950mA
-
Standby Current:
-
150mA
-
Suitable For:
-
Wooden Door,Metal Door

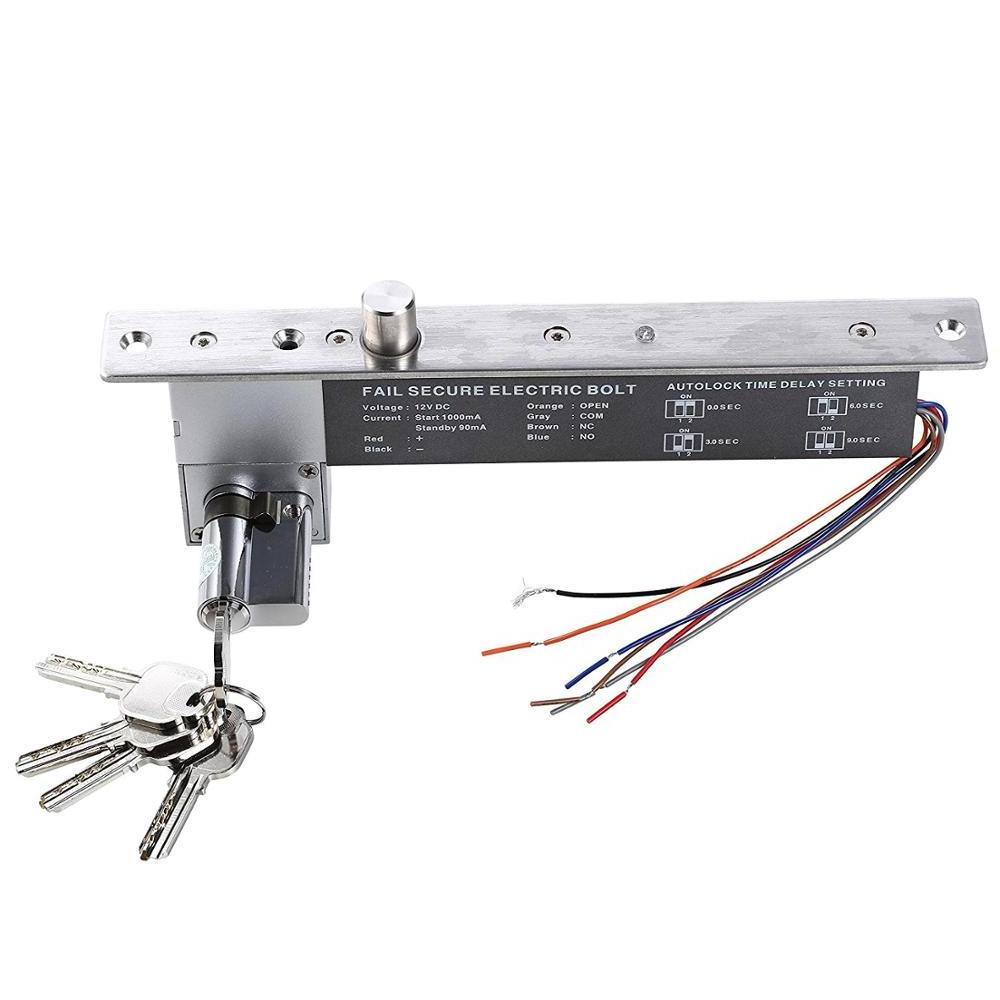

Hot selling Fail Secure Eletric Bolt With Mort Lock Cylinder PY-EL14
Fail Secure: Unlocked when energized
Face Plate: 260Lx30WX48H(mm)
Strike: 100Lx25Wx3H(mm)
Bolt: 16mmDIA,stainless steel 16mm throw
Voltage: DC12V
Start Current: 950mA
Standby Current: 150mA
Solid Bolt: polishing housing, 2000Kg Holding Force
Autolock
Time Delay: 0,3,6,9sec
.
Signal Output: Lock status
Output,NO/NC/COM
Surface Temp: Low Temperature
Induction Distance:8mm
Operating
temp: -10~+55°C(14-131F)
Operating
Humidity: 0~90%(
non-condensing)
Special Designed: Tested to 500000 operations
Face place material:Stainless Steel
Weight: 1.436kg
