Quick Details
-
Marketing Type:
-
New Product 2022
-
Voltage:
-
customized
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
1200
-
Usage:
-
manufacture all kinds of screws
-
Product name:
-
screw making machine
-
Advantage:
-
High speed, fully automatic
-
Quality:
-
Guaranteed
-
Package:
-
Wooden Case
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bysen
-
Machine Type:
-
forging machine
-
Marketing Type:
-
New Product 2022
-
Voltage:
-
customized
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
1200
-
Usage:
-
manufacture all kinds of screws
-
Product name:
-
screw making machine
-
Advantage:
-
High speed, fully automatic
-
Quality:
-
Guaranteed
-
Package:
-
Wooden Case
Product Description

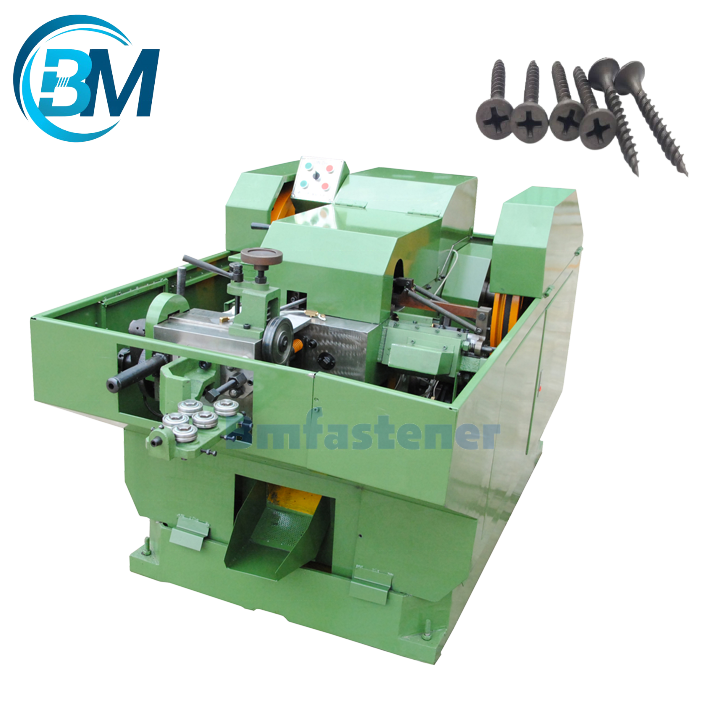

1-Die 2-Blow High Speed Automatic Cold Heading Machine is mainly used to form the head of the screw. Its working principle is that the first punch is forged and the second punched blank is withdrawn. Various metal materials can be upset: ordinary steel, carbon steel, stainless steel, copper, aluminum, alloy steel and other materials, used for various screws such as drywall screws, self-tapping screws, chipboard screws, electrical screws, micro screws, self-drilling screws, fiberboard screws, budle head screws, flat head screws, pan head screws, oval head screws, truss head screws, countersunk head screws and other screws.
Screws that made by screw making machine
Specification
|
MODEL
|
BHD3-20
|
BHD4-40
|
BHD5-60
|
|
Max.Blank Diameter/mm
|
φ1.6-3.0
|
φ2.0-4.0
|
φ3.0-5.0
|
|
Max.Blank Length/mm
|
20
|
40
|
60
|
|
Max.Cut-off length/mm
|
30
|
47
|
67
|
|
Stroke/mm
|
37
|
60
|
90
|
|
Capacity/ pcs/min
|
150-210
|
160-180
|
110-140
|
|
Main Die Diameter/mm
|
φ20x35
|
φ30x60
|
φ32x80
|
|
The first Punch Die Diameter/mm
|
φ18x50
|
φ25x65
|
φ30x75
|
|
The second Punch Die Diameter/mm
|
φ18x50
|
φ25x65
|
φ30x75
|
|
Cut-0ff Die Diameter/mm
|
φ13x25
|
φ15x30
|
φ20x35
|
|
Main Motor Power/kW
|
1.5HP/1.1kW
|
3.0HP/2.2kW
|
4.0HP/3.0kW
|
|
Volume (LxWxH) /m
|
1.40x0.75x0.9
|
1.80x0.85x1.15
|
2.30x1.08x1.25
|
|
Weight/kg
|
625
|
1275
|
2080
|
We can offer M1-M12 Two stroke cold heading machines. For other unshown models, please contact us directly to get more information.
