Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIUYI
-
Dimension(L*W*H):
-
standard
-
Weight:
-
2 KG
-
name:
-
P783648
-
size:
-
standard
-
weight:
-
5kg
-
After-sales service:
-
Support for online video
-
Application:
-
Dust filter
-
After Warranty Service:
-
Video technical support
Quick Details
-
Core Components:
-
Filter Cartridge
-
Efficiency:
-
99.99%
-
Porosity:
-
3-10μm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIUYI
-
Dimension(L*W*H):
-
standard
-
Weight:
-
2 KG
-
name:
-
P783648
-
size:
-
standard
-
weight:
-
5kg
-
After-sales service:
-
Support for online video
-
Application:
-
Dust filter
-
After Warranty Service:
-
Video technical support

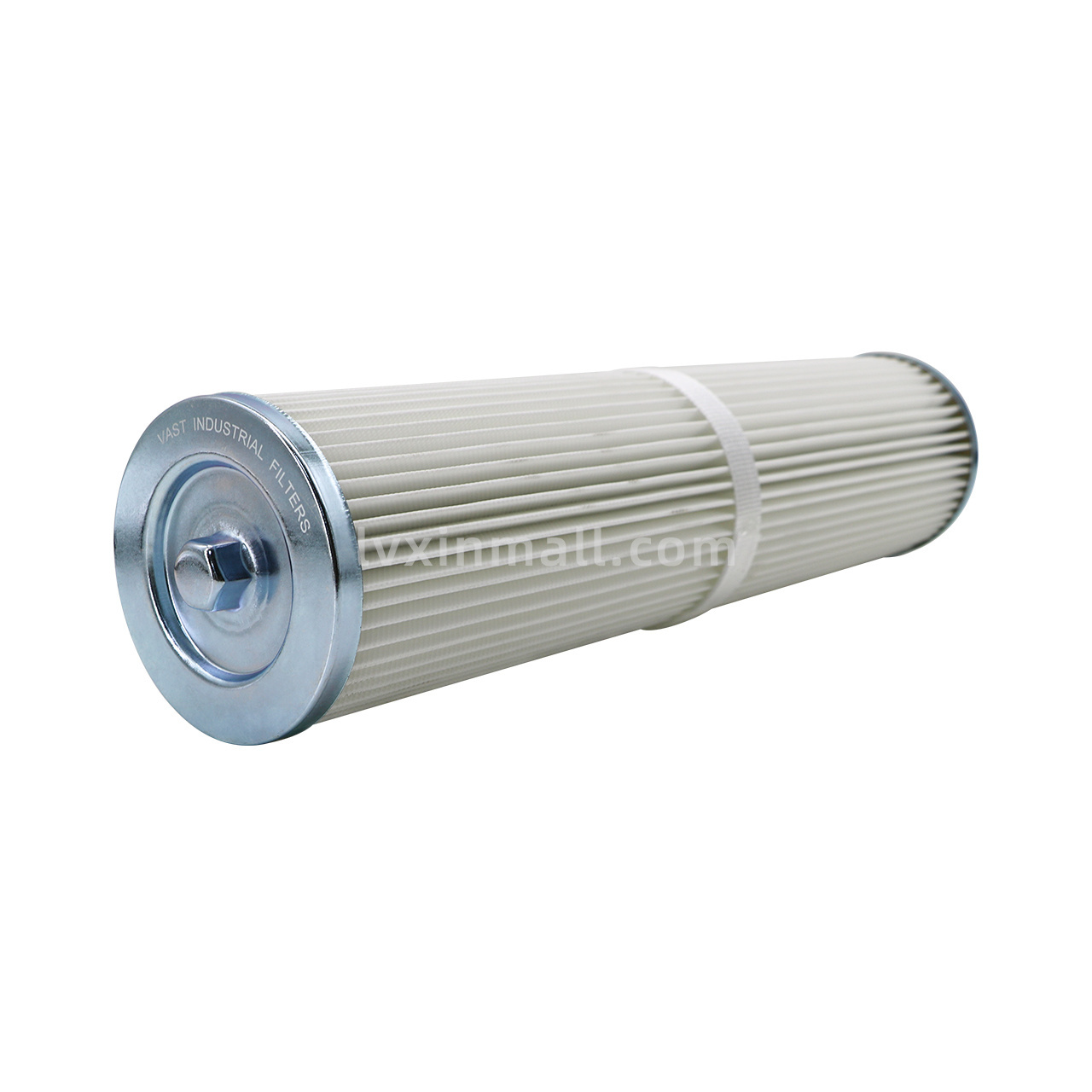

FET Polyester Round Dust Catcher Filter Cartridge :
Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
|
OD(mm)
|
ID(mm)
|
Length(mm)
|
Filtration surface(㎡)
|
Media type
|
|
325
|
215
|
660
|
21
|
polyester fiber
|
|
350
|
240
|
660
|
23
|
polyester fiber
|
|
325
|
215
|
750
|
26
|
polyester fiber
|
|
325
|
215
|
900
|
26
|
polyester fiber
|
|
325
|
215
|
1500
|
48
|
polyester fiber
|
Capacity
Efficiency: 99%
Filter rating:0.5-20um
Operating Condition: Temperature: ≦ 90℃
Main Features
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
2) Filed maintance and repair service .
3) Filed installation and commissioning service .
4) Video technical support
5) 24 hours online support
