Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUAFA
-
Weight:
-
500KG
-
Rated power/speed:
-
1500
-
Reated output:
-
75KW
-
Rated speed:
-
2000rpm
-
Bore*stroke:
-
105*125
-
Fuel consumption:
-
224g/kw.h
-
Application:
-
generator set
-
Certificate:
-
CE/ISO
-
Type:
-
4 cylinder diesel engine
Quick Details
-
Displacement:
-
50CC
-
Emission Standard:
-
Euro 1
-
Power:
-
45HP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUAFA
-
Weight:
-
500KG
-
Rated power/speed:
-
1500
-
Reated output:
-
75KW
-
Rated speed:
-
2000rpm
-
Bore*stroke:
-
105*125
-
Fuel consumption:
-
224g/kw.h
-
Application:
-
generator set
-
Certificate:
-
CE/ISO
-
Type:
-
4 cylinder diesel engine
4 CYLINDER

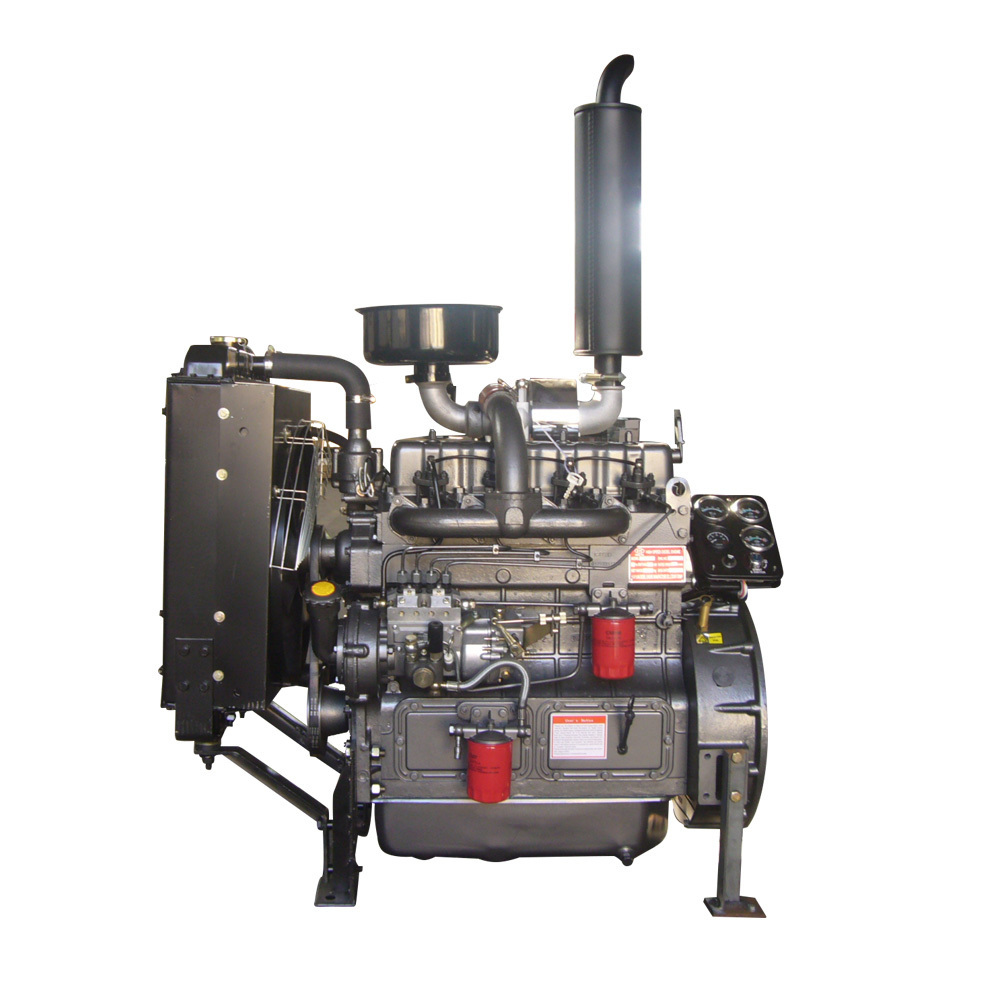

DIESEL ENGINE SPECIFICATION
Weifang Huayuan diesel engine can be widely used as the main power for generator set, fixed power, engineering machinery, agricultural machines and water pump set. All series engines are developed on the basis of original model by optimizing its fuel system, air intake and exhaust system, cooling system and transmitting system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability.
The main technical parameters of HFR4105ZG diesel engine with clutch:
|
Engine Model |
HF4105ZG |
|
Manufacturer |
Weifang Huayuan Diesel Engine Manufacture Co., Ltd |
|
Brand |
HUAFA |
|
Type |
Four stroke, in line, water cooled |
|
Rating power(kw) |
75 |
|
Engine Speed(rpm) |
2000 |
|
Bore*stroke(mm) |
105*125 |
|
Number of cylinders |
4 |
|
Air input mode |
Turbocharged & inter-cooled |
|
Compression ratio |
16:1 |
|
Fuel consumption |
≤224g/kw.h |
|
Oil consumption |
≤1.63g/kw.h |
|
Speed regulator |
Mechanical |
|
Starting method |
Electric starting, 24V |
|
Cooling method |
Forced water cooled |
|
Lubrication method |
Pressure & splash lubricating |
|
Exhaust gas temperature |
≤600°C |
|
Net weight |
530kgs |
