Quick Details
-
Warranty:
-
3months-1year
-
Brand Name:
-
Maxsolar
-
Model Number:
-
MAX-AM2.5
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
352x125x13mm
-
Product name:
-

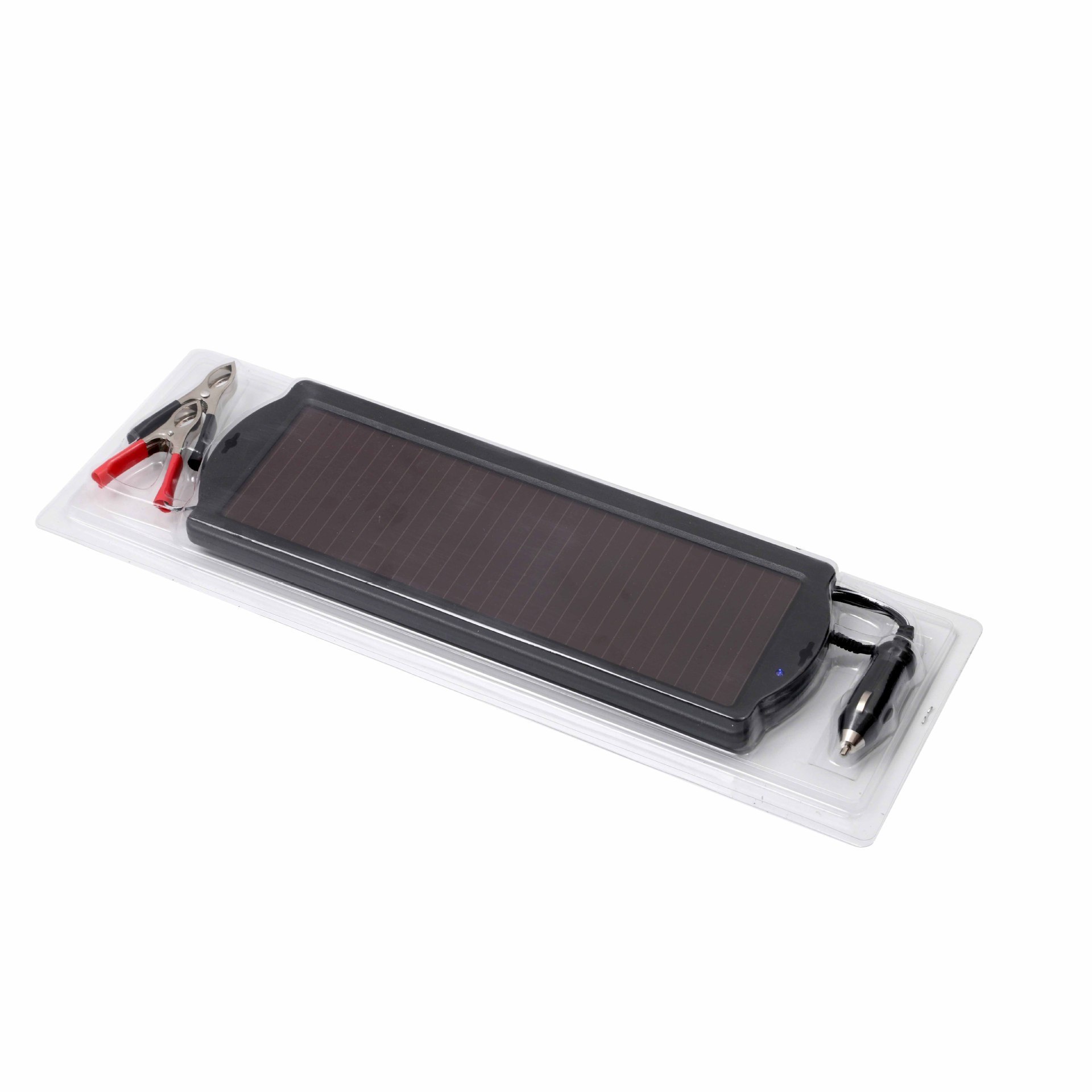

Amorphous solar panel 2.5 W
-
Color:
-
Black
-
Application:
-
Battery charging
-
Certificate:
-
CE, CE
-
Solar cell:
-
A-grade
-
Efficiency:
-
8%
-
Solar panel:
-
Amorphous solar panel
-
Frame:
-
Plastic
-
Voltage:
-
18V
Quick Details
-
Cell size:
-
305*100*3.2mm
-
Type:
-
Thin film cell
-
Panel Efficiency:
-
8%
-
Warranty:
-
3months-1year
-
Brand Name:
-
Maxsolar
-
Model Number:
-
MAX-AM2.5
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
352x125x13mm
-
Product name:
-
Amorphous solar panel 2.5 W
-
Color:
-
Black
-
Application:
-
Battery charging
-
Certificate:
-
CE, CE
-
Solar cell:
-
A-grade
-
Efficiency:
-
8%
-
Solar panel:
-
Amorphous solar panel
-
Frame:
-
Plastic
-
Voltage:
-
18V
Product Description
Product Form
| Physical Parameter |
| Model: | MAX-AP2.5W |
| Dimension: | 352*100*13mm |
| Weight: | 0.49kg |
| Number of cells: | 0 |
| Type of cells: | A-Si |
| The surface of glass: | Tempered glass |
| Frame: | Plastic |
| Connector type: | SAE |
| The connection method: | Series connection |
| Electrical Performance Parameter |
| Peak Power:2.5W | Working Voltage:18V |
| Working Current(IMP):0.14A | Open-circuit Voltage:21.45V |
| Short-circuit current(ISC):0.57A | Thermal Endurance:-40℃ to +80℃ |
| Number of diodes: | 1 |
| Tset Standard(environment): | Irradiance 1000 W/SQ.M,environment temperature 25℃ AM=1.5 |
