Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Heavy Duty 04 Series-Black Elastic Rubber double bearing
-
Function:
-
Fix/Swivel/Dual Brake
-
Size:
-
4 inch/5 inch/6 inch/8 inch
-
Wheel width:
-
50 mm
-
Wheel Material:
-
Black Elastic Rubber tread+Gray PP core
-
Rack material:
-
Pressed steel (Galvanized/Black Lacquer)
-
Installation Height:
-
135 mm/159 mm/189 mm/238 mm
-
Load Capacity:
-
200 kg/250 kg/300 kg/350 kg
-
Size of Plate:
-
114*102 mm
-
Hole center distance:
-
85*72 mm
Quick Details
-
Material:
-
Polypropylene, Steel, Elastic Rubber
-
Type:
-
Plate Casters, Fix Casters
-
Model Number:
-
HD04-BER-DB
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Heavy Duty 04 Series-Black Elastic Rubber double bearing
-
Function:
-
Fix/Swivel/Dual Brake
-
Size:
-
4 inch/5 inch/6 inch/8 inch
-
Wheel width:
-
50 mm
-
Wheel Material:
-
Black Elastic Rubber tread+Gray PP core
-
Rack material:
-
Pressed steel (Galvanized/Black Lacquer)
-
Installation Height:
-
135 mm/159 mm/189 mm/238 mm
-
Load Capacity:
-
200 kg/250 kg/300 kg/350 kg
-
Size of Plate:
-
114*102 mm
-
Hole center distance:
-
85*72 mm
Products Description

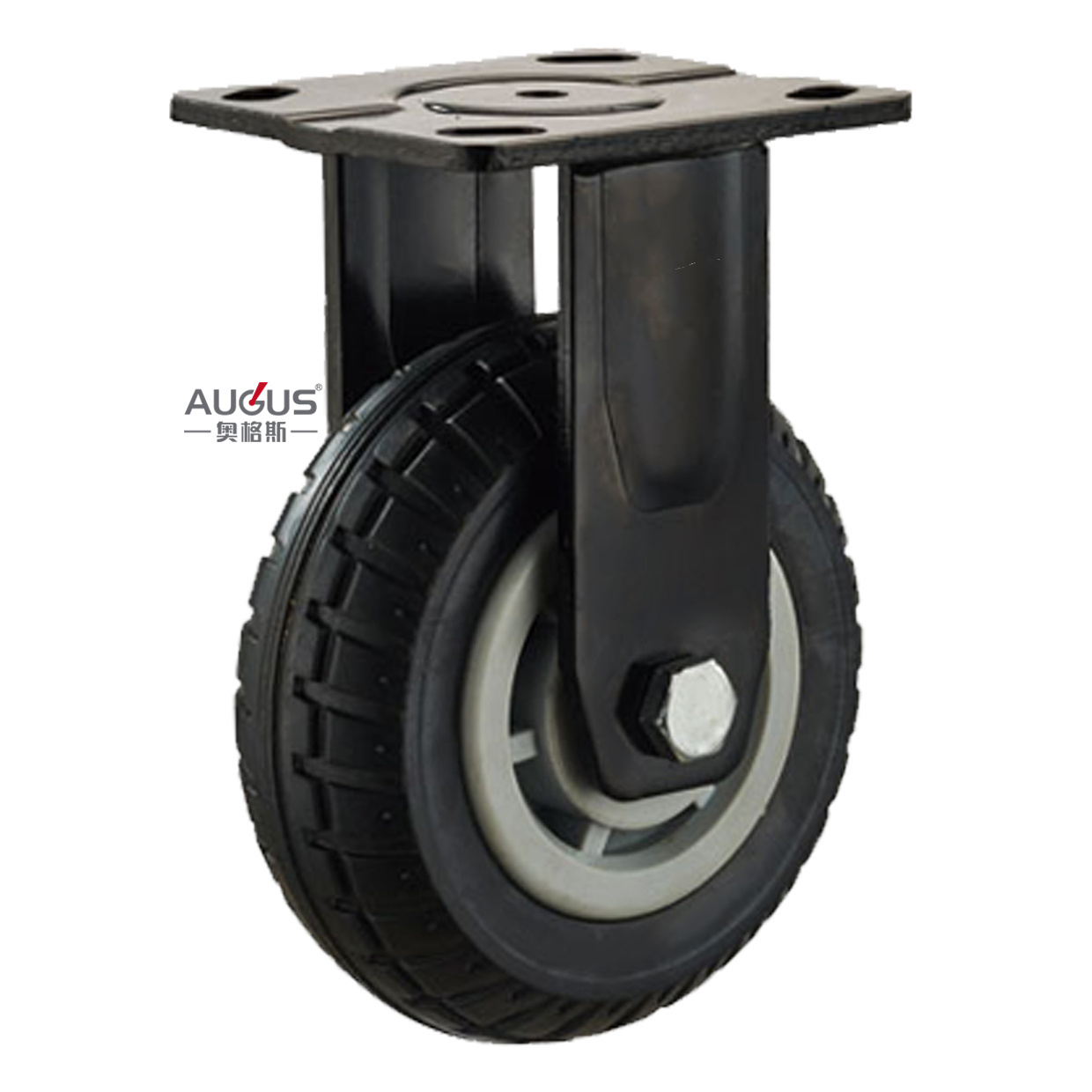

Heavy Duty 04 Series-Black Elastic Rubber with Double Bearing
Description: Fix, Swivel
Brake mode: Total brake
Bracket mode: The bracket is made of Pressed Steel, blue zinc plated, black lacquer
Install with nut, axle and bush. The tread is made of Elastic Rubber, the center is made of PP, double bearing
Details Images
Product Paramenters
|
Details
|
4 Inch
|
5 Inch
|
6 Inch
|
8 Inch
|
|
Wheel Diameter (mm)
|
100
|
125
|
150
|
200
|
|
Tread Width (mm)
|
50
|
50
|
50
|
50
|
|
Overall Height (mm)
|
135
|
159
|
189
|
238
|
|
Offset (mm)
|
20
|
30
|
36
|
39
|
|
Load Capacity (kgs)
|
200
|
250
|
300
|
350
|
|
Size of Plate (mm)
|
114x102
|
114x102
|
114x102
|
114x102
|
|
Hole Centre Distance (mm)
|
85x72
|
85x72
|
85x72
|
85x72
|
