Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Exiom
-
Model Number:
-
EX530-550M(B)-144(HC)(182)
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2279*1134*30mm
-
Number of Cells:
-
144 Cells
-
Junction Box:
-
IP68
-
Connector:
-
MC4
-
Frame:
-
White Anodized Aluminium Alloy
-
Weight:
-
27.4 kg
-
Packaging:
-
36 Pcs/Pallet
-
Application:
-
Commercial
-
Port:
-
SHANGHAI/QINGDAO/NINGBO
-
OEM/ODM:
-
Highly Welcomed
-
Product Name:
-

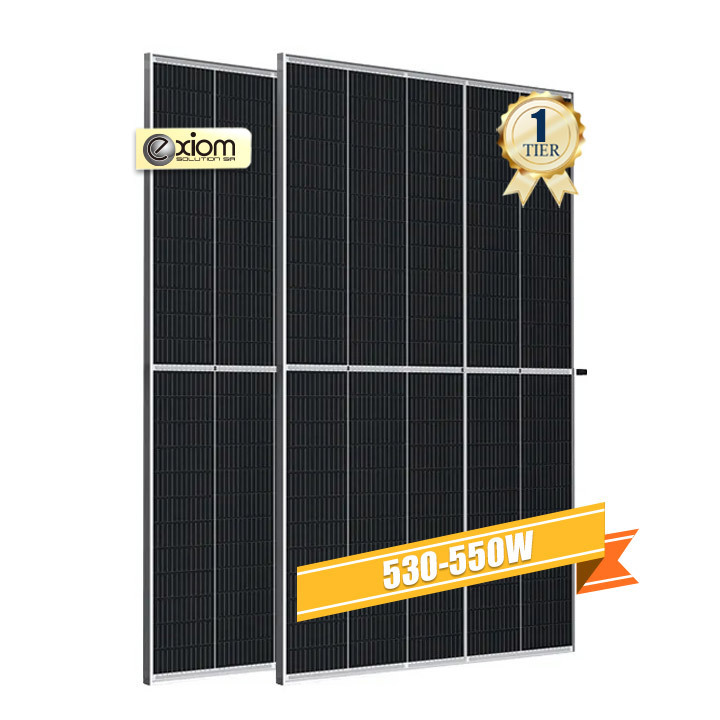

Mono Solar Panel
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
22%
-
Warranty:
-
25 years
-
Brand Name:
-
Exiom
-
Model Number:
-
EX530-550M(B)-144(HC)(182)
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2279*1134*30mm
-
Number of Cells:
-
144 Cells
-
Junction Box:
-
IP68
-
Connector:
-
MC4
-
Frame:
-
White Anodized Aluminium Alloy
-
Weight:
-
27.4 kg
-
Packaging:
-
36 Pcs/Pallet
-
Application:
-
Commercial
-
Port:
-
SHANGHAI/QINGDAO/NINGBO
-
OEM/ODM:
-
Highly Welcomed
-
Product Name:
-
Mono Solar Panel
Product Features
Technical Specifications
|
Electrical Characteristics
|
|
|
|
|
|
|||||
|
Module Type
|
EX530M(B)
|
EX535M(B)
|
EX540M(B)
|
EX545M(B)
|
EX550M(B)
|
|||||
|
Maximum Power- Pmax(W)
|
530
|
535
|
540
|
545
|
550
|
|||||
|
Open Circuit Voltage - Voc(V)
|
48.83
|
49.12
|
49.43
|
49.70
|
49.97
|
|||||
|
Short- Circuit Current - Isc(A)
|
13.74
|
13.79
|
13.83
|
13.88
|
13.93
|
|||||
|
Voltage at Pmax -Vmp(V)
|
41.03
|
41.28
|
41.54
|
41.76
|
41.95
|
|||||
|
Current at Pmax - Imp(A)
|
12.92
|
12.97
|
13.00
|
13.06
|
13.12
|
|||||
|
Module Efficiency -ηm(%)
|
20.5
|
20.7
|
20.9
|
21.1
|
21.3
|
|||||
|
Power Tolerance(W)
|
（0，+5W）
|
|
|
|
|
|||||
|
Maximum System Voltage(V)
|
1000/1500Vdc (IEC / UL)
|
|
|
|
|
|||||
|
Maximum Series Fuse Rating (A)
|
25A
|
|
|
|
|
|||||
|
Packing Configuration
|
|
|
|
External Dimensions
|
2279x1134*30mm
|
|
|
Container
|
40’HQ
|
|
|
Pieces per Pallet
|
36
|
|
|
Pallets per Container
|
20
|
|
|
Pieces per Container
|
720
|
|
About The Factory
Our strengths:
1. “Tier 1”brand that stands for guarantee, quality, and trust
2. 15+ year experience in the solar energy industry
3. Strategic cooperation with IBERDROLA and ADIWATT
4. 500MW+ solar panels MADE IN SPAIN
5. 24h response European local pre and after sales service
6. 48h delivery from European warehouse
Please feel free to contact us for more details.
