Quick Details
-
Model Number:
-
KCD2-201N-2
-
Max. Current:
-
20A/10A/35A
-
Mechanical Life:
-
10000 Cycles
-
Item:
-
Rocker Switch T85 1e4
-
Function:
-
ON-OFF
-
Acutuator color:
-
Red
-
Certificate:
-
CQC CE
-
Material:
-
PA66/PC
-
Product type:
-
Rocker Switch T85
-
Rating:
-
20A 250VAC/10A 125VAC/35A 12VDC
-
CONTACT RESISTANCE:
-
35m Max
-
INSULATION RESISTANCE:
-
500VDC 100m Min
-
Application:
-
Electric Appliances
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC/125VAC/12VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight Rocker Switch
-
Model Number:
-
KCD2-201N-2
-
Max. Current:
-
20A/10A/35A
-
Mechanical Life:
-
10000 Cycles
-
Item:
-
Rocker Switch T85 1e4
-
Function:
-
ON-OFF
-
Acutuator color:
-
Red
-
Certificate:
-
CQC CE
-
Material:
-
PA66/PC
-
Product type:
-
Rocker Switch T85
-
Rating:
-
20A 250VAC/10A 125VAC/35A 12VDC
-
CONTACT RESISTANCE:
-
35m Max
-
INSULATION RESISTANCE:
-
500VDC 100m Min
-
Application:
-
Electric Appliances
-
Certification:
-
CE

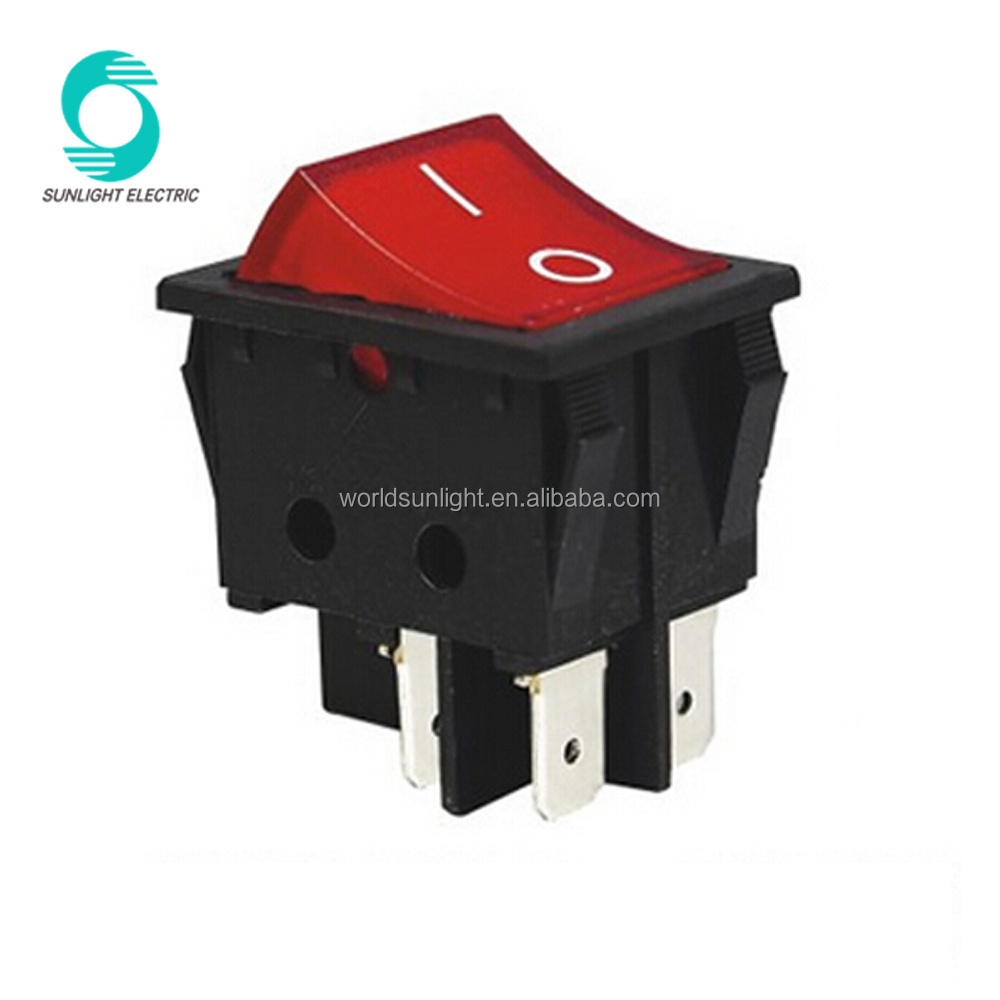

KCD2-201N-2 kcd2 ON-OFF 4 PIN illuminated universal electric rocker switch
|
Specificaton:
1.CE CQC approved.;
2.
20A 250VAC;10A 125VAC;35A 12VDC;
3.function: on-off,on-on, On-off-on or on/off with light
4.Material:Base plastic---Nylon 66;Button plastic---PC or Nylon 66;
Copper parts such as terminal----Copper H62;
Terminal surface treatment----- tin plating;
Contact----silver on copper ;
Spring----Tungsten steel;
Waterproof cap----PVC (It has waterproof cap if required. )
5. Material:Silver Contact,PC,PA66;
6. The appliance switches are widely used in household electrical equipments and office facility , the multimedia products and the electromotional instruments field etc.
KCD2-201N-2 kcd2 ON-OFF 4 PIN illuminated universal electric rocker switch
Model Introduction:
|
KCD2-201N-2 kcd2 ON-OFF 4 PIN illuminated universal electric rocker switch
Technical Parameter:
|
RATING: |
20A 250VAC/10A 125VAC/35A 12VDC
|
|
MECHANICAL LIFE: |
>50000 CYCLES |
|
ELECTRICAL LIFE |
>10000 CYCLES |
|
CONTACT RESISTANCE |
< 35MΩ |
|
INSULATION RESISTANCE |
>
500VDC 100
MΩ
|
|
WITHSTAND VOLTAGE |
>1500V/MINUTE |
|
AMBIENT TEMPERATURE |
-10°C~+85°C |
|
STORAGE TEMPERATURE |
-25°C~+85°C |
KCD2-201N-2 kcd2 ON-OFF 4 PIN illuminated universal electric rocker switch
Demension:
|
KCD2-201N-2 kcd2 ON-OFF 4 PIN illuminated universal electric rocker switch
You can clip the following pictures for much more rocker switches.
Or you can send me the inquiry directly.
We can supply High quality/best price rocker switches!
|
KCD2-201N-2 kcd2 ON-OFF 4 PIN illuminated universal electric rocker switch
We will pack as
standard exporting cartons or can be customized.
KCD2-201N-2 kcd2 ON-OFF 4 PIN illuminated universal electric rocker switch
Payment:
1.Payment:
Paypal, Western Union, T/T
2.Port of loading:
Ningbo,Wenzhou or Shanghai Port
3.Discounts:
offered based on order quantities
4.Delivery time:
3-15 days according to order quantities.
