Quick Details
-
Brand Name:
-
Scodeno
-
Model Number:
-
26GP-S2-AC
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
-
PoE standard:
-
802.3AF,802.3AT
-
PoE ports:
-
1-24
-
PoE Watchdog:
-
Auto reboot the unresponsive PoE devices for recovery
-
250M transmission:
-
1-24 ports support 250m power and data transmission
-
Port Isolation:
-
All LAN ports are isolated from each other to avoid interference
-
Network storm control:
-
Able to limited the network storm within 3%
-
Total Power consumption:
-
300W or 400W optional
-
input voltage:
-
AC 100-240V 50/60Hz
-
Switching capacity:
-
20G
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
52G
-
Brand Name:
-
Scodeno
-
Model Number:
-
26GP-S2-AC
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
-
PoE standard:
-
802.3AF,802.3AT
-
PoE ports:
-
1-24
-
PoE Watchdog:
-
Auto reboot the unresponsive PoE devices for recovery
-
250M transmission:
-
1-24 ports support 250m power and data transmission
-
Port Isolation:
-
All LAN ports are isolated from each other to avoid interference
-
Network storm control:
-
Able to limited the network storm within 3%
-
Total Power consumption:
-
300W or 400W optional
-
input voltage:
-
AC 100-240V 50/60Hz
-
Switching capacity:
-
20G

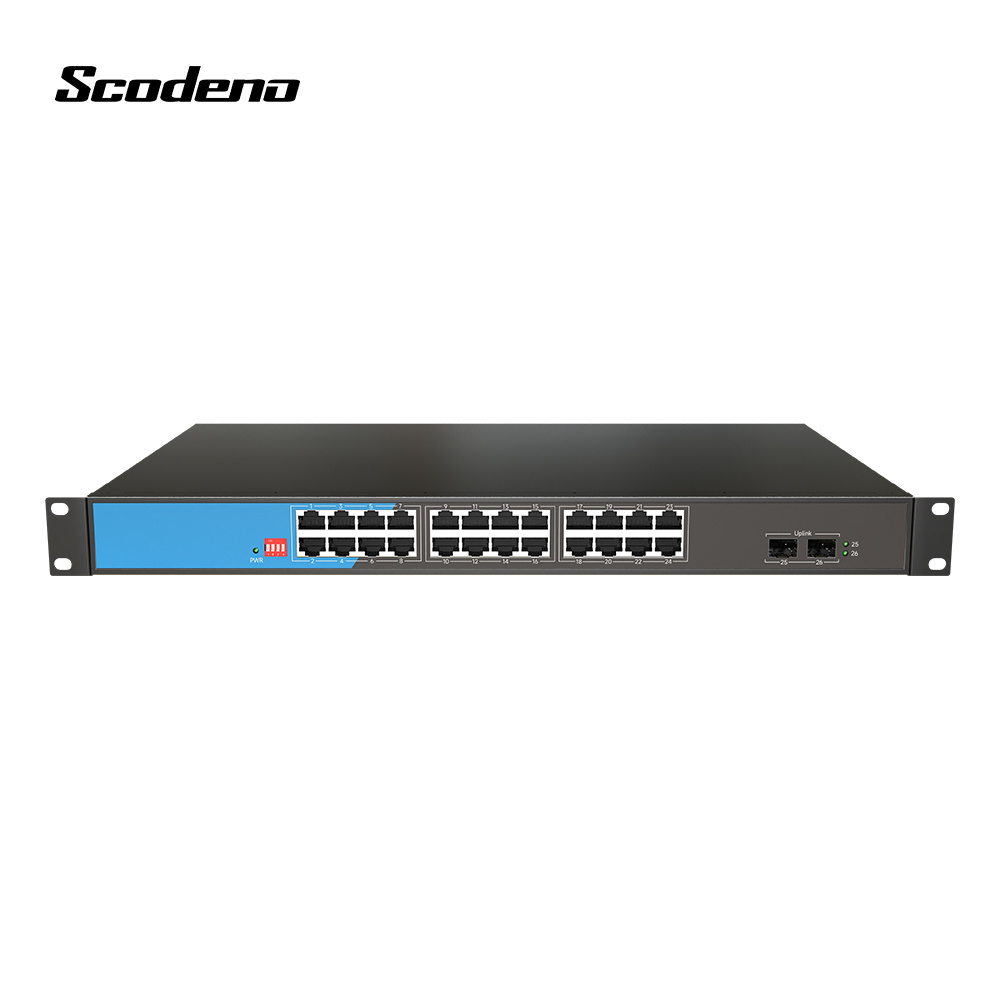

Factory OEM PoE Switch 4 8 16 24 port 10/100/1000M gigabit 48V network Ethernet fiber 2 SFP POE switch
Product Description
|
Model Number
|
S200-26G-S2-ACR
|
|
Manage
|
None Managed
|
|
PoE
|
Support PoE
|
|
Housing
|
Metal
|
|
Ports
|
24X10/100/1000Mbps RJ45
|
|
2X10/100/1000Mbps SFP
|
|
|
PoE Standard
|
IEEE802.3af/at
|
|
PoE Pin
|
1,2 + / 3,4-
|
|
Single Port Max Power
|
30W
|
|
AI DIP Switch
|
PoE Watchdog: Auto reboot the unresponsive PoE devices for recovery
|
|
250M: 1-8 ports support 250m power and data transmission
|
|
|
Port Isolation: All LAN ports are isolated from each other to avoid interference
|
|
|
Network storm control: Able to
limited
the network storm within 3%
|
|
|
Total PoE Power
|
300W or 400W optional
|
|
Switch Capacity
|
52G
|
|
Forwarding Rate
|
38.6Mpps
|
|
Mac Table
|
8K
|
|
Buffer
|
4.1M
|
|
Forwarding Delay
|
<8us
|
|
MDX/MIDX
|
Support
|
|
Working Temperature
|
(-10℃~+50℃)
|
|
Storage temperature
|
(-40℃~+70℃)
|
|
Relative humidity
|
5%~95% non-condensing
|
|
MTBF
|
100000 Hours
|
|
ESD
|
8
K~ 15K
|
|
Surge
Proof
|
General 6000V , Difference: 2000V
|
|
Free Fall
|
0.5m
|
|
Product Size
|
440*285*44mmLxWxH
|
|
Weight
|
3.5Kgs
|
|
Power In
|
AC 100-240V 50/60Hz
|
Contact us for more product information
