Quick Details
-
Model Number:
-
JGS-1B water well logging equipment
-
Product name:
-
water well logging equipment
-
Key Word:
-
well logging
-
Function:
-
water well logging equipment
-
Power Consumption:
-
<200W
-
Working Temperature Range:
-
-10℃~ +50℃ well logging tool
-
Working Power Supply:
-
AC220V±10% 50Hz ±5%
-
use:
-
logging equipment water well
-
application:
-
water well logging
-
Certification:
-
water well logging equipment
Quick Details
-
Customized support:
-
water well logging equipment
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD well logging tool
-
Model Number:
-
JGS-1B water well logging equipment
-
Product name:
-
water well logging equipment
-
Key Word:
-
well logging
-
Function:
-
water well logging equipment
-
Power Consumption:
-
<200W
-
Working Temperature Range:
-
-10℃~ +50℃ well logging tool
-
Working Power Supply:
-
AC220V±10% 50Hz ±5%
-
use:
-
logging equipment water well
-
application:
-
water well logging
-
Certification:
-
water well logging equipment
Geophysical water well borehole logging equipment JGS-1B Well Logging Tool
GDQ-2D water well logging equipment is a digital well logging equipment specially designed for the convenience of field work.
This well logging equipment can connect with various kinds of pipe and log.
This water well logging equipment uses a series of advanced technology, it improves the use of one ground-based instrument controlling one heavy logging probe into one ground-based instrument controlling various kinds of logging probe.
This geophysical logging equipment also includes the deep measurement, the power supply and so on.
The borehole logging equipment has a light weight and simple operation and maintenance, which can be connected to the tube type, which can be aseismatic, temperature-resistant, moistureproof and high reliability.

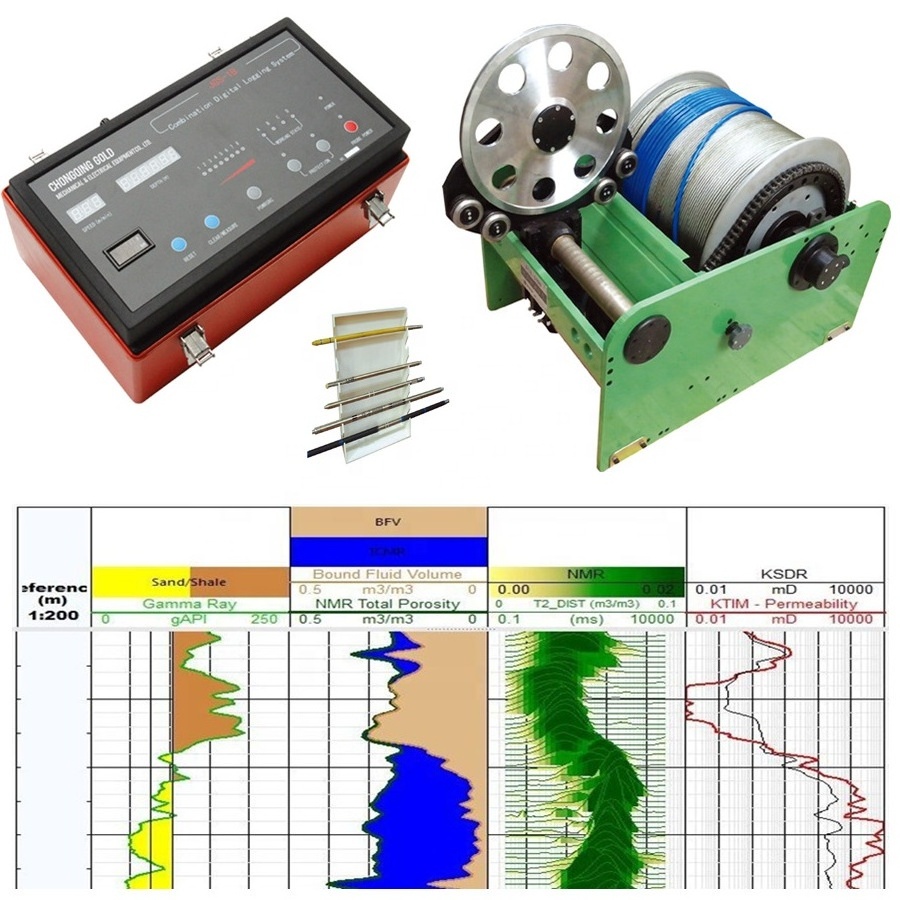

1. Equipment Show:
2. Technical Specification:
Geophysical water well borehole logging equipment JGS-1B Well Logging Tool
|
12bit A/D Conversion, Program-Controlled Magnification |
K=0.5~128 |
|
Counting Channel |
f≤500KHz |
|
Digital Signal Transmission Frequency |
9600bit/s |
|
Power Supply Cycle |
400ms |
|
Current |
2mA~500 mA Optional |
|
Signal Input Range |
≤±10V |
|
Continuous Working Time |
≤24 hr |
|
Power Consumption |
< 200W |
|
Volume |
420×260×210mm |
|
Weight |
< 7Kg |
|
Working Temperature Range |
-10℃~ +50℃ |
|
Working Power Supply |
AC220V±10% 50Hz ±5% |
|
Logging Speed |
0~30 m/min Adjustable (as per sampling interval) |
3. Application and Feature:
Geophysical water well borehole logging equipment JGS-1B Well Logging Tool
• Coal Field Digital Integrated Logging
• Hydrological Engineering Digital Integrated Logging
• Solid Metal Ore Digital Integrated Logging
• Other Minerals Digital Integrated Logging
• External Laptop (Desktop PC)
• For upward logging, also for downward logging
• Receive digital signal, analog signal
• 8 taps of power supply current, Optional
• Automatic sampling as per depth interval, sampling interval arbitrarily
• Indoor simulation logging, repeatability observation of instruments and probes
• Membrane panel, attractive and durable
