Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
QS Motor
-
Model Number:
-
QSm
-
Voltage(V):
-
48v-144v
-
Output Power:
-
6000w
-
Torque:
-
190N.m
Quick Details
-
Speed(RPM):
-
500-1300rpm
-
Continuous Current(A):
-
90A
-
Efficiency:
-
88-92%
-
Place of Origin:
-
China
-
Brand Name:
-
QS Motor
-
Model Number:
-
QSm
-
Voltage(V):
-
48v-144v
-
Output Power:
-
6000w
-
Torque:
-
190N.m

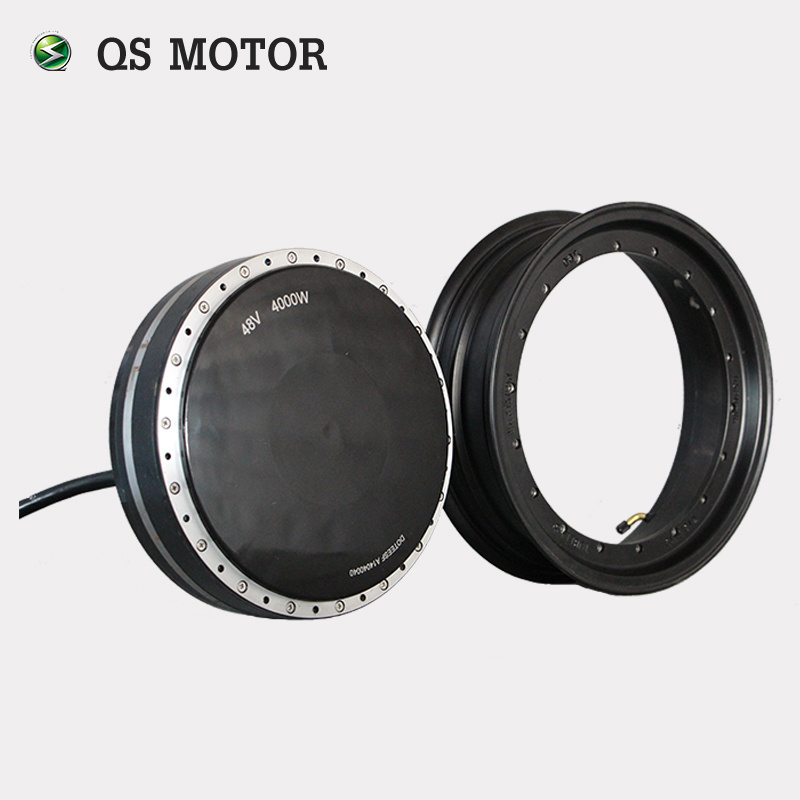

QS Motor Electric Tricycle Motor kit 6000W Powerful Hub Motor Kit
It's QS electric In-Wheel Tricycle Hub Motor for Conversion Kits, which power range from 1500w to 8000w rated, with disc brake.
Especially suit for electric scooter/pizza scooter/tricycle, max. speed for 60km/h to 100km/h .
If you only want to buy QS 13inch single shaft separated wheel hub motor, pls. refer to this link: http://qsmotor.en.alibaba.com/productgrouplist-801847844/13inch_273_Separated_Wheel_1500W_6000W.html?spm=a2700.8304367.0.0.A1tnwm
Key Features
1. QS Motor with high quality and service.
2. Sine Wave controller, Bluetooth wireless connection are optional, Highest Reliability!
3. Parameter Programmable
4. Higher Torque & Higher Efficiency
5. No noisy
6. Temperature sensor inside and Lower overheating
7. Regenerative braking
Other Motor Kits
http://qsmotor.en.alibaba.com/productgrouplist-803469857/E_Tricycle_Kit.html?spm=a2700.8304367.0.0.jxTO1T
QS Motor Notice Before Order (Producing time/Warranty/Package/Certidication etc.)
Pls. click below hyperlink of picture.
1. Conversion Including Below Items
2. Products Description (Click the hyerlink for more info.)
- Motor Type: BLDC Hub Motor with Permanent Magnets
- Motor design: Single axle out with 13inch Aluminium rim
- Rim size:3.5x13
- Matching Tire: 130/60-13
- Magnet Height: 45MM
- No. of Pole Pairs: 16 pairs
- Rated Power: 6000W
- Max Power: 12000W
- Rated Voltage: 72V( 72-144V Can be optional)
- Speed: 100km/h (60-100km/h can be customized)
- Max No-load RPM:1218RPM
- Max Torque: 190N.M
- Max Efficiency: 88%~92%
- Continious current:91A
- Max current:119A ,Peak 180A
- Brake type: Disc brake
- Winding Core material: Aluminium
- Cross Section of Phase wire: 16 mm2
- Hall sensor phasing angle: 120 degree
- Temperature Sensor: Optional
- Max. Working Temperature: 70 degree, Peak 120 degree
- Waterproof Grade: IP54
- N.W./ G..W. : 23.5kgs / 25kgs
- Package Size: 43*43*41CM
3). QSKLS7250H Sine wave controller with Bluetooth Adapter
- 160A continuous current, 400A phase current.
- The size is 194mm*126mm*86.8mm
- Net weight: 4.54kg
- with bluetooth adapter USD8.0/piece
- Package: Carton
4). Twist throttle with 2/3 speed switch & voltage showing
You can choose 2 speed or 3 speed gear switch for using.
3. How to Find a Suitable Motor and Kits
4. Application
No QS Motor, No Super EVs!
