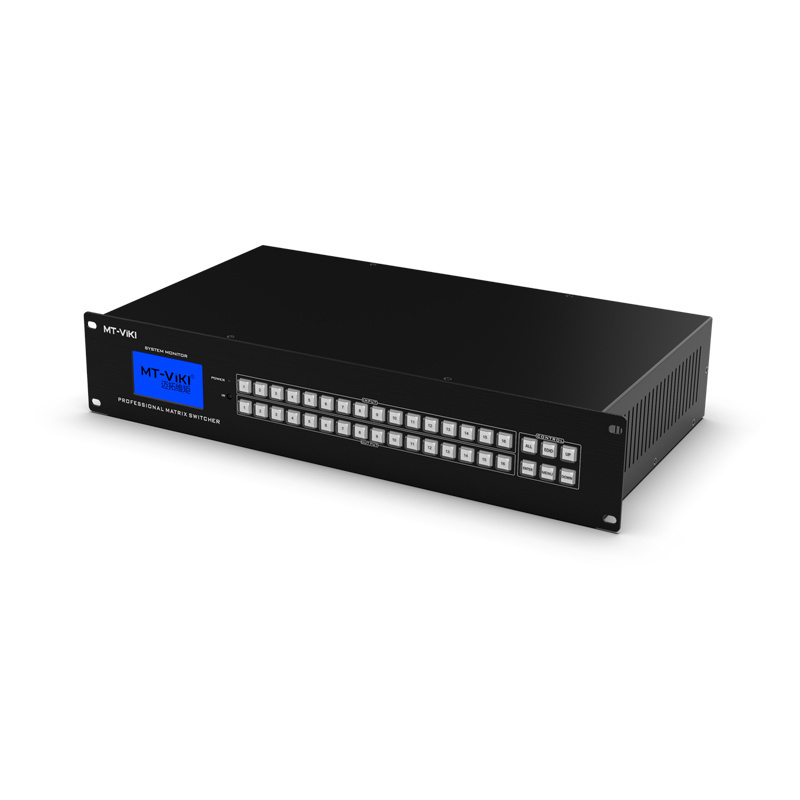

MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72
MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72
MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72
MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72
MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72
MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72
MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72
MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72

MT-VIKI ADI 4K 30Hz HDMI Matrix Switch 16x16 with Web GUI, Available for 4x4 8x8 8x16 32x32 36x36 72x72

FOB Reference Price: Get Latest Price
≥1 Pieces
US $512
≥7 Pieces
US $490
≥100 Pieces
US $437
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
HDMI Matrix 16X16
Interface Type:
HDMI
Computer connection:
16 ports
Resolution:
4K*2K@30Hz / 1080P 3D@60Hz
Control:
Button, infrared remote, RS232 serial port, optional WEB
WEB Control:
Support
Certifications:
CE FCC ROHS
Warranty:
1 Year
Material:
Metal Shell
Service:
OEM/ODM

Quick Details

Model Number:
MT-HD1616-W
Brand Name:
MT-VIKI
Place of Origin:
Guangdong, China
Product name:
HDMI Matrix 16X16
Interface Type:
HDMI
Computer connection:
16 ports
Resolution:
4K*2K@30Hz / 1080P 3D@60Hz
Control:
Button, infrared remote, RS232 serial port, optional WEB
WEB Control:
Support
Certifications:
CE FCC ROHS
Warranty:
1 Year
Material:
Metal Shell
Service:
OEM/ODM
Series Available
HDMI matrix 4X4
HDMI matrix 8X8
HDMI matrix 16X16
Hybrid matrix switcher
Available for--
4 in 4 out VGA & HDMI & DVI
8 in 8out VGA & HDMI & DVI
16 in 16 out VGA & HDMI & DVI
32 in 32 out VGA & HDMI & DVI
Special Note: MT-VIKI authorize clients to sell our branded product, but you may also customize brand (MOQ required)
Product Features--



MT-HD1616-W
--Each channel supports HDCP decryption, Blu-ray, 3D;--Support HDMI protocol version support: 4Kx2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz;
--Support button, infrared remote control, RS232 serial port control, optional WEB control;
--Support EDID rewritable and EDID adaptive function, better adapt to the variety of display devices on site, improve compatibility;
--Long-line drive capability: The input has automatic equalization, which effectively reduces the deterministic jitter caused by line transmission.
Product Specifics
Product name
4K HD 16x16 16 input 16 output HDMI matrix switcher
Model
MT-HD1616-W
Input port
16×HDMI
Ourput port
16×HDMI
Device height
2U
Support resolution
480i, 576i, 480p, 576p, 720p ,1080i, 1080p@24/30/50/60/120Hz, 1080P3D@60Hz, 4K*2K@30Hz
Control port
1 route RS-232 IN,1 route RS-232 OUT,1 route RJ-45
Protocol standard
Support HDMI,support EDID management and erasable,support HDCP parsing
Color space
Support RGB444,YUV444,YUV422 color space,Support X.V.Color extended gamut standard
Electrostatic protection
Human discharge mode: + / - 8kV (air gap discharge) + / - 4kV (contact discharge)
Control mode
Standard panel button,RS232,Remote switch; Select and configure WEB or APP control
Power supply
AC:110V-240V 50/60Hz DC:12V/3A
Input voltage
100VAC ~ 260VAC, 50/60 Hz
Consumption
23W(Max)
Dimmension(mm)
480×252×100(mm)
Weight
7Kg
Operation temperature
0 ºC~40 ºC/32 ºF~104 ºF
Storage temperature
−20 ºC~60 ºC/−4 ºF~140 ºF
About MT-VIKI
MT-VIKI, specialized in research & development of audio & video transmission
Founded in 2003, is manufacturer of AV switchers, splitters, KVM switches, HDMI matrix, video wall controller and HDMI extender series, and is well-known for KVM switches in the past decades. As one of the HDMI adopters, MT-VIKI has been devoting to reaching or exceeding clients' expectation by the leading technology, and successfully launched 5 series products worldwide.
