Quick Details
-
Hose Inner Diameter:
-
64 mm
-
Air Consumption:
-
19m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Voltage:
-
air motor driven
-
Power:
-
8kw
-
Dimension(L*W*H):
-
1940*1375*856mm
-
Weight:
-
1040 kg
-
type:
-
dry and wet shotcrete machine
-
output:
-
10m3/h
-
driven type:
-
air motor driven
-
Process:
-
Thin-stream
-
Rotor size:
-
14.5L
-
Air motor speed:
-
650rpm
-
Rotor speed:
-
12.3rpm
-
Max. aggregate size:
-
20mm
-
Max.conveying distance of dry spraying:
-
300/100m
-
Max.conveying distance of wet spraying:
-
40/15m
Quick Details
-
Marketing Type:
-
New Product 2023
-
Max. Conveying Distance:
-
300m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
64 mm
-
Air Consumption:
-
19m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Voltage:
-
air motor driven
-
Power:
-
8kw
-
Dimension(L*W*H):
-
1940*1375*856mm
-
Weight:
-
1040 kg
-
type:
-
dry and wet shotcrete machine
-
output:
-
10m3/h
-
driven type:
-
air motor driven
-
Process:
-
Thin-stream
-
Rotor size:
-
14.5L
-
Air motor speed:
-
650rpm
-
Rotor speed:
-
12.3rpm
-
Max. aggregate size:
-
20mm
-
Max.conveying distance of dry spraying:
-
300/100m
-
Max.conveying distance of wet spraying:
-
40/15m
Product Description

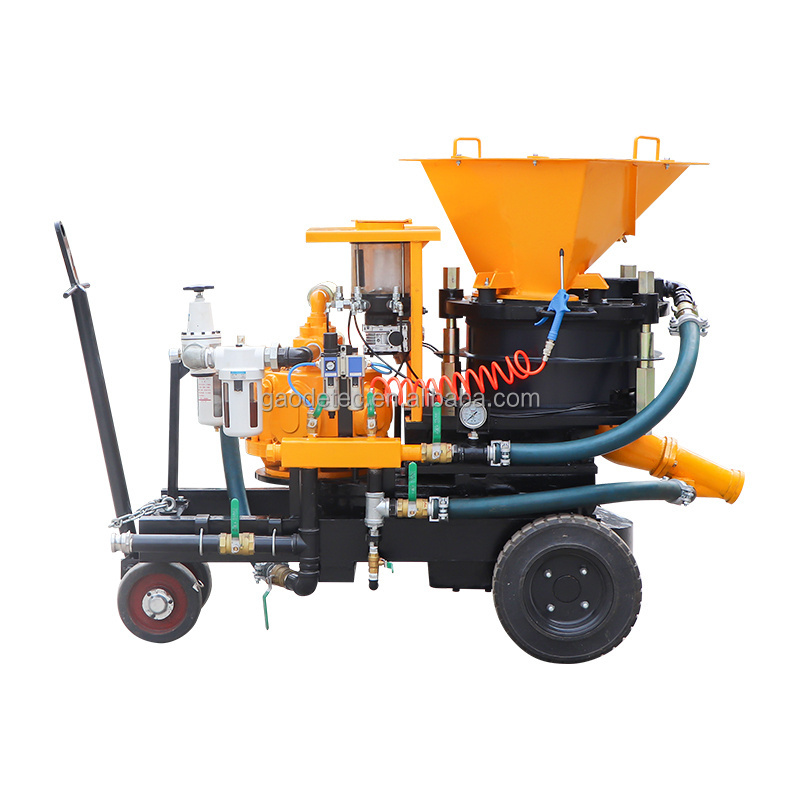

GSZ-10S Dry and Wet Shotcrete Machine
GSZ-10S Shotcrete machine is
an
air motor driven
multifunctional rotor type machine for wet and dry spraying and conveying. Theoretical output is
10m3/h
,
Max. aggregate size is
20mm
.
1. The materials which can be sprayed and conveyed are
concrete, mortar, refractory, sand, pea gravel and crushed stone
.
2. Compared with traditional shotcrete machines, GSZ-10S has the advantage of being lighter and more compact.
2. Compared with traditional shotcrete machines, GSZ-10S has the advantage of being lighter and more compact.
3. It is equipped with a
rubber sealing plate lubrication system
, which can effectively reduce the wear of rubber plates, longer service life, and better sealing effect.
Technical Parameter
|
Name
|
Data
|
|
||
|
Machine type
|
Rotary machine GSZ-10S
|
|
||
|
Process
|
Thin-stream
|
|
||
|
Air motor type
|
TMH8A
|
|
||
|
Air motor power
|
8 kw
|
|
||
|
Air consumption
|
Machine
|
10 m3/min
|
||
|
|
Air motor
|
9 m3/min
|
||
|
Air pressure
|
Machine
|
0.2Mpa
|
||
|
|
Air Motor
|
0.63Mpa
|
||
|
Air motor speed
|
650rpm
|
|
||
|
Rotor speed
|
12.3rpm
|
|
||
|
Rotor size
|
14.5L
|
|
||
|
Theoretical output ①
|
10m3/h
|
|
||
|
Recommended hose sizes
|
D64mm
|
|
||
|
Max. aggregate size
|
20mm
|
|
||
|
Max. horizontal conveying distance
|
Dry
|
300m
|
||
|
|
Wet
|
40m
|
||
|
Max. vertical conveying distance
|
Dry
|
100m
|
||
|
|
Wet
|
15m
|
||
|
Dimensions
|
Length
|
1940mm
|
||
|
|
Height
|
1375mm
|
||
|
|
Width
|
856mm
|
||
|
Weight
|
1040 Kg
|
|
||
|
① Based on a theoretical filling level of 100%. Prior to use or processing, always consult the current product data sheet of the products used.
|
|
|
||
Image Display
Advantages and Benefits
1. Theoretical output
can be adjusted.
.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Reduced rebound.
5. For concrete repair, slope stabilization, excavation support or mining.
6. Light and compact machine design.
