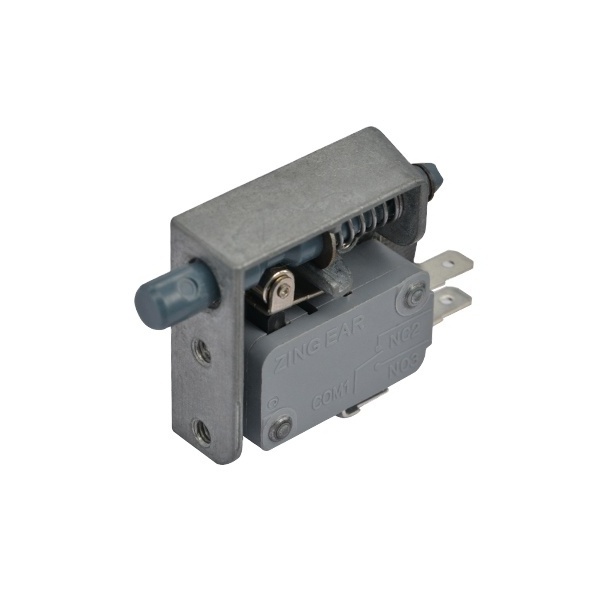

Quick Details
-
Model Number:
-
G5D
-
Protection Level:
-
IP00
-
Operating Temperature:
-
-25 ℃~+150 ℃
-
Max. Current:
-
16(4)A 1/2 HP
-
Mounting Holes:
-
Alloy base with inner mounting hole
-
Electrical Life:
-
≥ 50,000 cycles
-
Mechanical Life:
-
≥ 10,000,000 cycles or 1,000,000 cycles or 50,000 cycles
-
Terminal Type:
-
Quick Connect Terminals
-
Operating Force:
-
1800gf max with lever
-
Lever Position:
-
Push Rod
-
Lever Type:
-
Roller Lever
-
Circuit Code:
-
SPDT
-
Application:
-
Home Appliance, Automatic Equipments, Power Tools, etc.
Quick Details
-
Max. Voltage:
-
125/250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G5D
-
Protection Level:
-
IP00
-
Operating Temperature:
-
-25 ℃~+150 ℃
-
Max. Current:
-
16(4)A 1/2 HP
-
Mounting Holes:
-
Alloy base with inner mounting hole
-
Electrical Life:
-
≥ 50,000 cycles
-
Mechanical Life:
-
≥ 10,000,000 cycles or 1,000,000 cycles or 50,000 cycles
-
Terminal Type:
-
Quick Connect Terminals
-
Operating Force:
-
1800gf max with lever
-
Lever Position:
-
Push Rod
-
Lever Type:
-
Roller Lever
-
Circuit Code:
-
SPDT
-
Application:
-
Home Appliance, Automatic Equipments, Power Tools, etc.
Products Description
|
Operating speed
|
|
0.1mm-1m/s(Related with actuator forms)
|
|
|
Operating frequency
|
|
Mechanical 60 cycles/min;Electrical 15 cycles/min
|
|
|
Insulation resistance
|
|
≥100M Ω (500VDC)
|
|
|
Contact resistence
|
|
≥100M Ω (Initial value)
|
|
|
Test Voltage
|
|
AC1000V,50/60HZ, 1min
|
|
|
|
|
AC1500V,50/60HZ,1min
|
|
|
Vibration resistance
|
|
10-55HZ,1.5MM Double amplitude
|
|
|
Shock resistence
|
|
Destruction:OF>1.0N:1000M/s2(approx.100G)max.
OF≤1.0N:400M/s2(approx.40G)max. Destruction:OF>1.0N:200M/s2(approx.20G)max. OF≤1.0N:100M/s2(approx.10G)max. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Life expectancy
|
|
Mechanical≥10,000,000 cycles or 1,000,000 cycles
Electrical≥50,000 cycles or 100,000 cycles |
|
|
|
|
|
|
|
Weight
|
|
Approx. 6.2g(No lever)
|
|
