Quick Details
-
Conductor Material:
-
Solid Bare Copper
-
Conductor Dimension:
-
24AWG
-
Number of twisted pairs:
-
1/8/12/15/40/50/100/200
-
Shield:
-
Optional
-
Jelly Filled:
-
Optional
-
Jacket Material:
-
PVC / LSZH / PE
-
Jacket Color:
-
Gray / Blue / Black or as required
-
Fire Rates Available:
-
CMX / CM
-
Certification:
-
ETL/CE/RoHS/ISO9001
Quick Details
-
Brand Name:
-
CHANGBAO / OEM
-
Model Number:
-
CAT3-XP
-
Place of Origin:
-
Guangdong, China
-
Conductor Material:
-
Solid Bare Copper
-
Conductor Dimension:
-
24AWG
-
Number of twisted pairs:
-
1/8/12/15/40/50/100/200
-
Shield:
-
Optional
-
Jelly Filled:
-
Optional
-
Jacket Material:
-
PVC / LSZH / PE
-
Jacket Color:
-
Gray / Blue / Black or as required
-
Fire Rates Available:
-
CMX / CM
-
Certification:
-
ETL/CE/RoHS/ISO9001

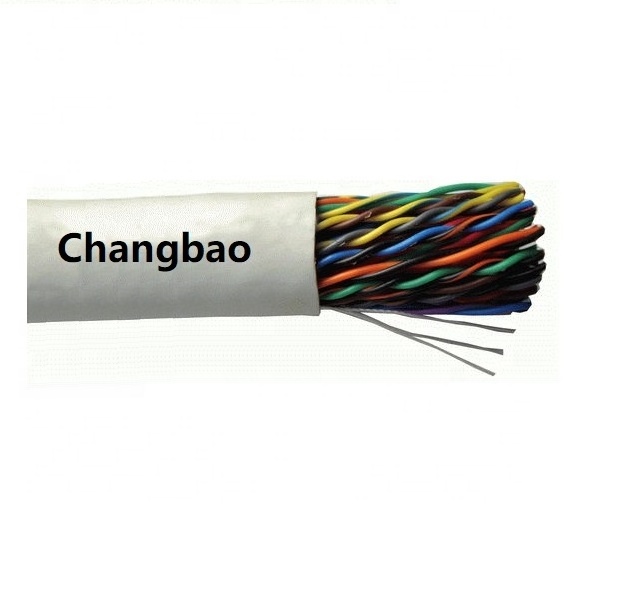

Changbao 1 pair 8 pair 12 pair 15 pair 40 pairs 50 pair 100 pair 200 pair multi pair copper telephone cable
-
Cat3 UTP/FTP Multi Pairs Communication Telephone Cable
- Supports Lan & Telephone applications utilizing bandwidths up to 16MHz .
- Can be also jelly filled as waterproof type used for outdoor underground.
- Available in 1 pair to 200 pairs .
Cat3 UTP 200 Pairs 24AWG Solid Bare Copper Telephone Cable : Cross Section
Construction Characteristics:
|
Conductor |
Material |
Solid Bare Copper |
|
Size |
24AWG X 200P |
|
|
Construction |
0.50mm |
|
|
Insulation |
Material |
HDPE |
|
Min. Thickness |
0.18mm |
|
|
AVG. Thickness |
0.20mm |
|
|
Diameter |
0.9mm±0.01mm |
|
|
Colors |
1. Blue-White |
|
|
2. Orange-White |
||
|
3. Green-White |
||
|
4. Brown-White |
||
|
5. Gray-White |
||
|
6. Blue-Red |
||
|
7. Orange- Red |
||
|
8. Green- Red |
|
Insulation |
Colors |
9. Brown- Red |
|
10. Gray- Red |
||
|
11. Blue-Black |
||
|
12. Orange- Black |
||
|
13. Green- Black |
||
|
14. Brown- Black |
||
|
15. Gray- Black |
||
|
16. Blue-Yellow |
||
|
17. Orange- Yellow |
||
|
18. Green- Yellow |
||
|
19. Brown- Yellow |
||
|
20. Gray- Yellow |
||
|
21. Blue-Violet |
||
|
22. Orange- Violet |
||
|
23. Green- Violet |
||
|
24. Brown- Violet |
||
|
25. Gray- Violet |
||
|
Binder |
Core wrap |
PE Tape |
|
Jacket |
Material |
PVC / LSOH / PE |
|
AVG. Thickness |
1.50mm |
|
|
Min. Thickness |
1.35mm |
|
|
Diameter |
32.20mm ±0.20mm |
|
|
Rip Cord |
Nylon |
|
|
Color |
Per request |
Electrical & Physical Characteristics:
|
Rating |
75 ℃ ; 30V |
||
|
Conductor Resistance |
Max 105ohm/km at 20℃ |
||
|
Insulation Resistance |
Min 50Mohm · km at 20℃ |
||
|
Dielectric Strength |
Min AC1.5KV |
||
|
AC Leakage Current Through overall Jacket |
AC 1500V <= 10mA |
||
|
Insulation |
Unaged |
Tensile Strength |
13.8 Mpa |
|
Elongation |
150% |
||
|
Aged |
Tensile Strength |
11.7 Mpa(100 ℃ 168h) |
|
|
Elongation |
80%(100℃ 168h) |
||
|
Jacket |
Unaged |
Tensile Strength |
13.8 Mpa |
|
Elongation |
150% |
||
|
Aged |
Tensile Strength |
11.7 Mpa(100℃ 168h) |
|
|
Elongation |
80%(100℃ 168h) |
||
|
Cold Bend Test |
-20 ℃ 4hours No Cracking |
||
Cat3 UTP 100Pairs 24AWG Solid Bare Copper
