Quick Details
-
Brand Name:
-
dadi
-
Weight:
-
3150 KG
-
Dimension(L*W*H):
-
580x540x150
-
Core Components:
-
Frame
-
Color:
-
Red,Yellow,Green
-
Certification:
-
BV, ISO9001
Quick Details
-
Warranty:
-
1 year
-
Use:
-
cultivate
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
dadi
-
Weight:
-
3150 KG
-
Dimension(L*W*H):
-
580x540x150
-
Core Components:
-
Frame
-
Color:
-
Red,Yellow,Green
-
Certification:
-
BV, ISO9001

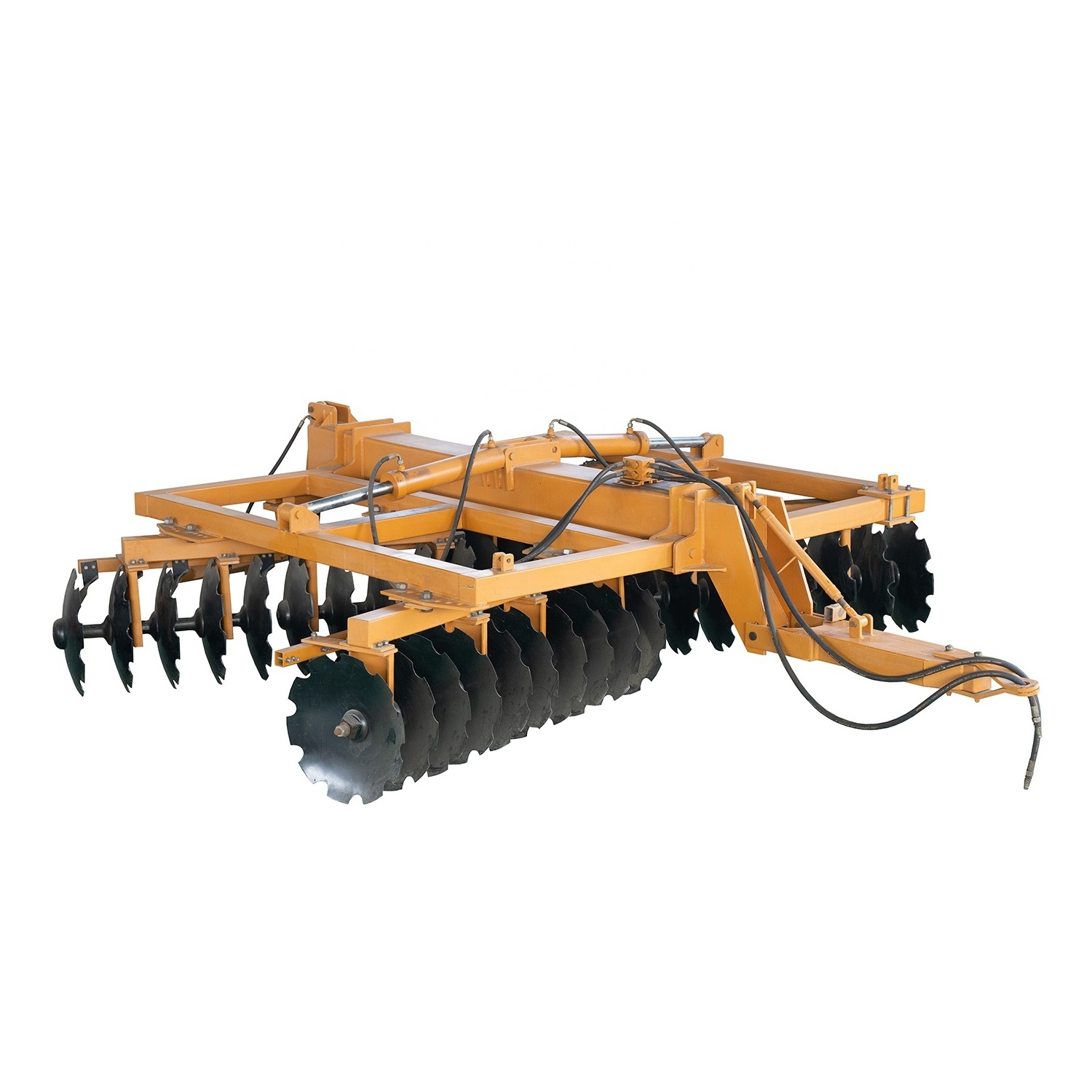

Agricultural Machinery Heavy-duty Disc Harrow
1BZ series heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage,or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields.The series products are all fitted with hydraulic rubber wheel for transportation,It is easy to be transported and chang directiong on the edge of fields.
Main
Specifications:
| Model | Unit | 1BZDZ-4.4 | 1BZDZ-4.8 | 1BZDZ-5.3 |
| Overall dimension | cm | 580x450x150 | 580x495x150 | 580x540x150 |
| Weight | kg | 2800-2850 | 2950-3000 | 3100-3150 |
| Working width | m | 4.4 | 4.8 | 5.3 |
| Working depth | cm | 20 | ||
| Blade spacing | mm | 230 | ||
| No of disc | pc | 40 | 44 | 48 |
| Dia.of disc | mm | 660 | ||
| Transport clearance | mm | >260 | ||
| productivity | ha/h | 4.4 | 4.8 | 5.3 |
| Matched power | kw | 105-110 | 115-120 | 125-130 |
| Linkage | Trailed | |||
