Quick Details
-
Application:
-
Construction
-
Rated Lifting Moment:
-
4704kN.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight (KG):
-
55000 kg
-
Max. travel speed:
-
90km/h
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
ISO9001/CE
Quick Details
-
Rated Loading Capacity:
-
100 ton
-
Max. Lifting Height:
-
64m
-
Engine Brand:
-
Famous Brand
-
Application:
-
Construction
-
Rated Lifting Moment:
-
4704kN.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight (KG):
-
55000 kg
-
Max. travel speed:
-
90km/h
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
ISO9001/CE
Product Description

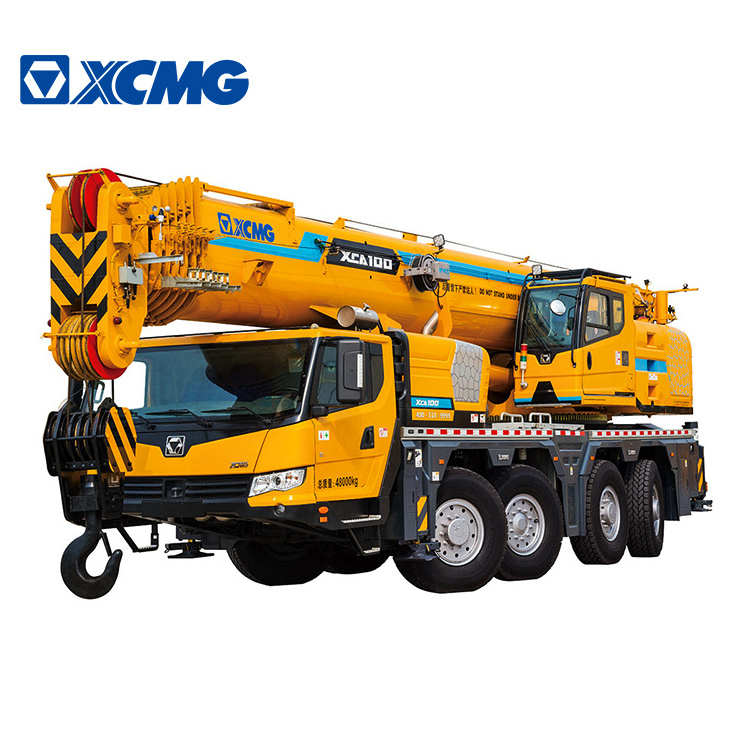

XCMG Official Manufacturer XCT100 rc telescopic hydraulic new mobile cranes 100 ton.
1.High performance:
XCT100 can meet the need under various road conditions.Driving mode can bechosen automatically according to road conditions. Axles 2, 3, 4 are used fordriving on the normal road to save fuel. Axles 1, 2, 3, 4 are used for drivingon the rough road to realize a more flexible chassis with higher pass-ability.
The boom with six sections can be extended up to 64m, 1mhigher than the longest boom in the class in the industry, with performanceimproved by 15~20%.
Inserted sliders may efficiently increase the overlapping lengthof adjacent boom sections and eliminate point contact or line contact betweenslider and boom, thus local buckling phenomenon is effectively avoided.
2.Energy-saving:
Equipped with high-precision sensors and large power radiator, newenergy-saving hydraulic system adopts large displacement electric proportionalvariable pump with intelligent engine control technology to achiece higherenergy utilization, lower heat production, improved system reliability and 15%fuel conservation.
3.Intelligent:
At the same time of improving manipulation smoothness, Oriemac valve control technology advantage is also made full use of to realize higheroperation stability, finer control, faster speed and perfect manipulationfeeling.
Road traveling and tight turning radius modes are available throughrear-axle hydraulic control servo steering technology to ensure stablehigh-speed driving and flexible low-speed driving.
4.Appearance and ergonomics:
The crane has newly designed Oriemac G generation appearance of truck crane,which looks more sturdy and elegant. The entire crane has been ergonomicallyimproved. The air suspensions equipped for the low-noise driver's cab improvedriver comfort. New designed aluminium deck presents aesthetic.
Specification
|
Description
|
Unit
|
Parameter value
|
|
|
||
|
Overall length
|
mm
|
15600
|
|
|
||
|
Overall width
|
mm
|
3000
|
|
|
||
|
Overall Height
|
mm
|
3870
|
|
|
||
|
Wheel Base
|
mm
|
1920+3500+1420+1505
|
|
|
||
|
Track(front/rear)
|
mm
|
2449/2315
|
|
|
||
|
Front/Rear overhang
|
mm
|
2650/2765
|
|
|
||
|
Front/Rear extension
|
mm
|
1840/0
|
|
|
||
|
Total vehicle mass in travel configuration
|
kg
|
55000
|
|
|
||
|
Engine Model
|
|
WP6G240E330
|
M906LA.E3A/2
|
WP12.430N
|
||
|
Engine rated power
|
kw/(r/min)
|
176/2300
|
190/2200
|
316/1900
|
||
|
Engine rated torque
|
N.m/(r/min)
|
860/1200-1700
|
1000/1200-1600
|
2060/1000-1400
|
||
|
Max. travel speed
|
km/h
|
90
|
|
|
||
|
Min. turning diameter
|
m
|
23
|
|
|
||
|
Min. ground clearance
|
mm
|
326
|
|
|
||
|
Max. grade ability
|
%
|
45
|
|
|
||
|
Approach angle
|
°
|
18
|
|
|
||
|
Departure angle
|
°
|
13
|
|
|
||
|
Braking distance (at 30 km/h, full load )
|
m
|
≤10
|
|
|
||
|
Oil consumption per 100km
|
L
|
70
|
|
|
||
|
Noise level at seated position
|
dB(A)
|
≤90
|
|
|
||
|
Exterior noise level
|
dB(A)
|
≤88
|
|
|
||
