Quick Details
-
Product name:
-

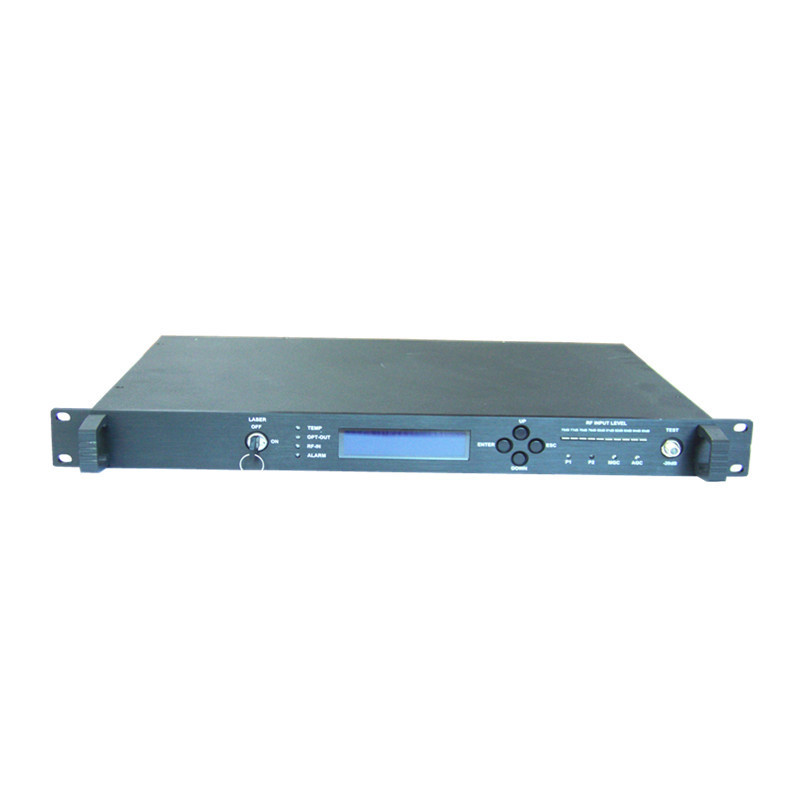

Internal Modulator 1550 Fiber Optical Transmitter for CATV / IPTV FTTH
-
Wave length:
-
1310nm and 1550nm
-
Laser:
-
DFB butterfly laser combo
-
Optical output power:
-
16/18/20/24/25/31mw
-
CNR:
-
>51dB
-
CTB:
-
>65B
-
CSO:
-
>60dB
-
RF Frequency Range:
-
45~862MHz
-
AGC Accuracy:
-
±5/±0.3
-
Level adjustable range:
-
80±5dB
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
GGE-OT-DE
-
Product name:
-
Internal Modulator 1550 Fiber Optical Transmitter for CATV / IPTV FTTH
-
Wave length:
-
1310nm and 1550nm
-
Laser:
-
DFB butterfly laser combo
-
Optical output power:
-
16/18/20/24/25/31mw
-
CNR:
-
>51dB
-
CTB:
-
>65B
-
CSO:
-
>60dB
-
RF Frequency Range:
-
45~862MHz
-
AGC Accuracy:
-
±5/±0.3
-
Level adjustable range:
-
80±5dB
FEATURES:
l Imported Brand-ORTEL, AOI, XESTON DFB butterfly laser, up to 31mW plus 31mW, Dual output
l RF OUT available with power no more than 20mW plus 20mW
l AGC Fiber In circuit design, Fiber / RF IN, Fiber Out.
l CM or NXP, NEC branded hybrid modules-2pcs improve performance with high RF Input
l Front panel led light display Optical Input range: -7dB~ +2dB.
l Special designed front panel led display for Opt. In/AGC/MGC/RF IN .
l Microprocessor automatically controls output power (APC), cooling/heating (ATC), modulation ratio(AMC).
l Dual High efficiency and well-designed anti-thundering switching power supply, hot backup.
l 1U 19' standard casing with dual cooling fan, excellent heat-dissipation.
|
Number Item Unit |
Description |
Remark |
|
|
Optical Parameters |
|||
|
Wavelength |
nm |
1310±20 |
1550±15 |
|
Optical output power 1 |
mW |
16/18/20/24/25/31 |
10 |
|
Optical Output Ports |
1 |
||
|
Optical Input Ports |
1 |
||
|
CNR |
> 51 |
||
|
CTB |
> 65 |
||
|
CSO |
> 60 |
||
|
RF Parameters |
|||
|
Frequency Range |
MHz |
45~862 |
|
|
Input Impedance |
|
75 |
|
|
AGC Accuracy |
±5/±0.3 |
||
|
Input Return Loss |
> 16 |
||
|
Level adjustable range |
dB |
80±5 |
|
|
In-Band Flatness |
dB |
±0.50 |
|
|
Level test point |
dbuV |
-20 |
|
|
General Parameter |
|||
|
Power Input Voltage |
V |
AC110~264 |
|
|
V |
AC35~95 |
||
|
Power Consumption |
A |
0.25 |
|
|
Dimensions |
mm |
483(L)*380(W)*46(H) |
|
|
Package |
1piece/Box. 5pcs/Ctn |
||
|
G.W |
kg/Ctn |
26.00 |
|
| Item | Description | Unit | |
| 1 | Dimmensions | MM | 483*380*45 |
| 2 | Gross weight/PC | KG | 26 |
| 3 | Carton packing | PCS/MM | 5 / 520*400*320 |
