Quick Details
-
Brand Name:
-
BBIER
-
Model Number:
-
BB-HJD-80W-P
-
CRI (Ra>):
-
85
-
Lamp Luminous Efficiency(lm/w):
-
130, 130
-
Lamp Luminous Flux(lm):
-
10400lm
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 45
-
Wattage:
-
100W
-
Power Efficiency:
-
>0.95
-
Base:
-
E39 E40 EX39
-
Beam angle:
-
360 degree
-
Driver:
-
Internal power supply
-
LED Light Source:
-
SMD LED
-
Product Name:
-

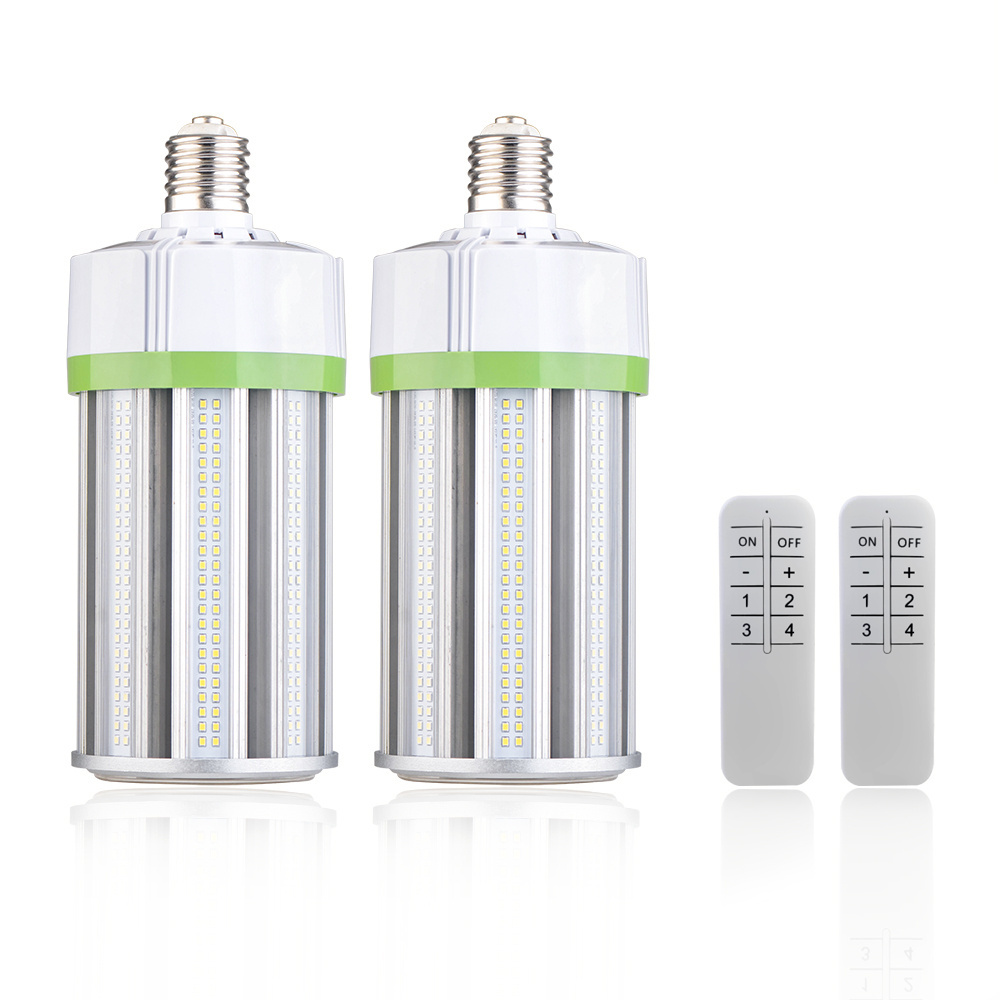

COB 100W 120W IP65 Waterproof corn light bulb
Quick Details
-
Color Temperature(CCT):
-
4100K (Neutral White)
-
Input Voltage(V):
-
AC100-277V /AC200-480V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BBIER
-
Model Number:
-
BB-HJD-80W-P
-
CRI (Ra>):
-
85
-
Lamp Luminous Efficiency(lm/w):
-
130, 130
-
Lamp Luminous Flux(lm):
-
10400lm
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 45
-
Wattage:
-
100W
-
Power Efficiency:
-
>0.95
-
Base:
-
E39 E40 EX39
-
Beam angle:
-
360 degree
-
Driver:
-
Internal power supply
-
LED Light Source:
-
SMD LED
-
Product Name:
-
COB 100W 120W IP65 Waterproof corn light bulb
Product Description
Benefits
1.MH/HPS/HID/MHL/CFL lamp retrofit.
2.Screw Base Direct Install by bypass ballast .
3.100% Die Casting Heat Sink .
4.Universal Base E39/E40/EX39 5.ETL CETL CE ROHS listed.
2.Screw Base Direct Install by bypass ballast .
3.100% Die Casting Heat Sink .
4.Universal Base E39/E40/EX39 5.ETL CETL CE ROHS listed.
Features
1.Beam angle : 360 degrees.
2.Aluminum heat sinks and active air exchanging cooling system in order to speed up heat dissipation.
3.It's major to replace the ECL,MH,HID,HPS.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.
2.Aluminum heat sinks and active air exchanging cooling system in order to speed up heat dissipation.
3.It's major to replace the ECL,MH,HID,HPS.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.
Application
1.Sports light,post top light.
2.Flood light,pole light.
3.High /low bay light.
4.Roadway light,street light,billiard light.
5.Other application adaway.
2.Flood light,pole light.
3.High /low bay light.
4.Roadway light,street light,billiard light.
5.Other application adaway.
Power
|
80W
|
100W
|
120W
|
150W
|
|||
Model
|
BB-HJD-80W-P
|
BB-HJD-100W-P
|
BB-HJD-120W-P
|
BB-HJD-150W-P
|
|||
Replacement
|
HPS 250W
|
HPS 300W
|
HPS 350W
|
HPS 400W
|
|||
Luminous Flux
|
10400lm
|
13000lm
|
15600lm
|
19500lm
|
|||
Light Source
|
SMD LED
|
|
|
|
|||
Luminous Efficacy
|
>130lm/w
|
|
|
|
|||
Voltage
|
100-277VAC/50-60HZ 200-480VAC/50-60HZ available
|
|
|
|
|||
CRI
|
80+
|
|
|
|
|||
Operation Temp.
|
-40 to +45℃
|
|
|
|
|||
CCT
|
2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW
|
|
|
|
|||
Life Span
|
50,000 hours at 25℃
|
|
|
|
|||
Dimming
|
Standard: Not dimmable; Dimmable optional.
|
|
|
|
|||
Sensor
|
Standard: No sensor; Microwave sensor optional.
|
|
|
|
|||
Remote Control
|
Standard: No remote; Remote control optional.
|
|
|
|
|||
Driver
|
Internal power supply
|
|
|
|
|||
Beam Angle
|
360°
|
|
|
|
|||
PF
|
>0.95
|
|
|
|
|||
Warranty
|
5 Years
|
|
|
|
Dimensional Drawing
Luminous Intensity Distribution
Projects
By using our 80w LED corn bulb to replace 250w metal halide bulb for garden hall path lighting fixtures,the customer is now able to save a lot per month from his electric bill.
Note
1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.
3.Must remove the ballast ,capacitor ,ignitor before installing our led light.
MICROWAVE MOTION SENSOR
The microwave motion sensor is not provided by default,If you need, please contact sales.
1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.
3.Must remove the ballast ,capacitor ,ignitor before installing our led light.
MICROWAVE MOTION SENSOR
The microwave motion sensor is not provided by default,If you need, please contact sales.
Adopted dual PD technology, the sensor is able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level.
Preconditions to use the Lux-off function: 1. Standby period is +∞; 2. Standby dimming level is on 10%, 20% or 30%; 3. Daylight threshold is on 30Lux, 50Lux, 80Lux or 120Lux.
Preconditions to use the Lux-off function: 1. Standby period is +∞; 2. Standby dimming level is on 10%, 20% or 30%; 3. Daylight threshold is on 30Lux, 50Lux, 80Lux or 120Lux.
Remote Control
Function
* Wireless remote control, you can remotely control the light switch.
* Can control the lights of 4 groups of channels, each group is independent.
Multiple lights can be set for each group.
* The remote control distance is 10-20m.
* Dimming function,you can increase and decrease the brightness of the lamp.
* Must be used with dimming driver.
Stand-by period Stand-by dimming level Press the button “stand-by period” to set stand-by periodas 0s / 10s / 30s / 1min / 5min/
10min / 30min / +∞. Note: “0s” means on/off control; “+∞” means bi-level dimming control. Press the button“stand-by dimming level”
to set the stand-by dimming level as 10% / 20% / 30%/ 50%. Note:
* The corn light without sensor and the corn light with sensor can be equipped with RC02
remote control.
* Only corn light with sensor can be equipped with RC01 remote control.
* Can control the lights of 4 groups of channels, each group is independent.
Multiple lights can be set for each group.
* The remote control distance is 10-20m.
* Dimming function,you can increase and decrease the brightness of the lamp.
* Must be used with dimming driver.
Stand-by period Stand-by dimming level Press the button “stand-by period” to set stand-by periodas 0s / 10s / 30s / 1min / 5min/
10min / 30min / +∞. Note: “0s” means on/off control; “+∞” means bi-level dimming control. Press the button“stand-by dimming level”
to set the stand-by dimming level as 10% / 20% / 30%/ 50%. Note:
* The corn light without sensor and the corn light with sensor can be equipped with RC02
remote control.
* Only corn light with sensor can be equipped with RC01 remote control.
INSTALLATION
PACKING INFO
