Quick Details
-
Brand Name:
-
bosean
-
Model Number:
-
BH60
-
Product name:
-
fixed industrial nh3 ammonia gas detector
-
Certificate:
-
CE, FCC, ROHS, ISO9001, SIL
-
Sensor:
-
High Precision Laser Sensor
-
Color:
-
Blue/yellow
-
Weight:
-
1500g
-
Usage:
-
Industrial Production
-
Application:
-
Power Industry
-
Gas:
-
nh3
-
Battery:
-
3.6v Rechargeable Li-ion Battery
Quick Details
-
Type:
-
fixed industrial nh3 ammonia gas detector
-
Warranty:
-
12 months, 2 Years Under Normal
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
bosean
-
Model Number:
-
BH60
-
Product name:
-
fixed industrial nh3 ammonia gas detector
-
Certificate:
-
CE, FCC, ROHS, ISO9001, SIL
-
Sensor:
-
High Precision Laser Sensor
-
Color:
-
Blue/yellow
-
Weight:
-
1500g
-
Usage:
-
Industrial Production
-
Application:
-
Power Industry
-
Gas:
-
nh3
-
Battery:
-
3.6v Rechargeable Li-ion Battery
Product Description
K-G60 Remote Control Fixed Gas Detector is a new type of gas detector developed in combination with the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.
Main Features:
The product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc.
It adopts industrial grade sensor, the instrument casing adopts explosion-proof explosion-proof structure design, 4-20mA standard signal or directly enters DOS system, which can be widely used. In the metallurgical, petroleum, chemical, municipal and other industries, it is at the leading level of similar products in China.
It adopts industrial grade sensor, the instrument casing adopts explosion-proof explosion-proof structure design, 4-20mA standard signal or directly enters DOS system, which can be widely used. In the metallurgical, petroleum, chemical, municipal and other industries, it is at the leading level of similar products in China.
Detailed Images
|
Product Name
|

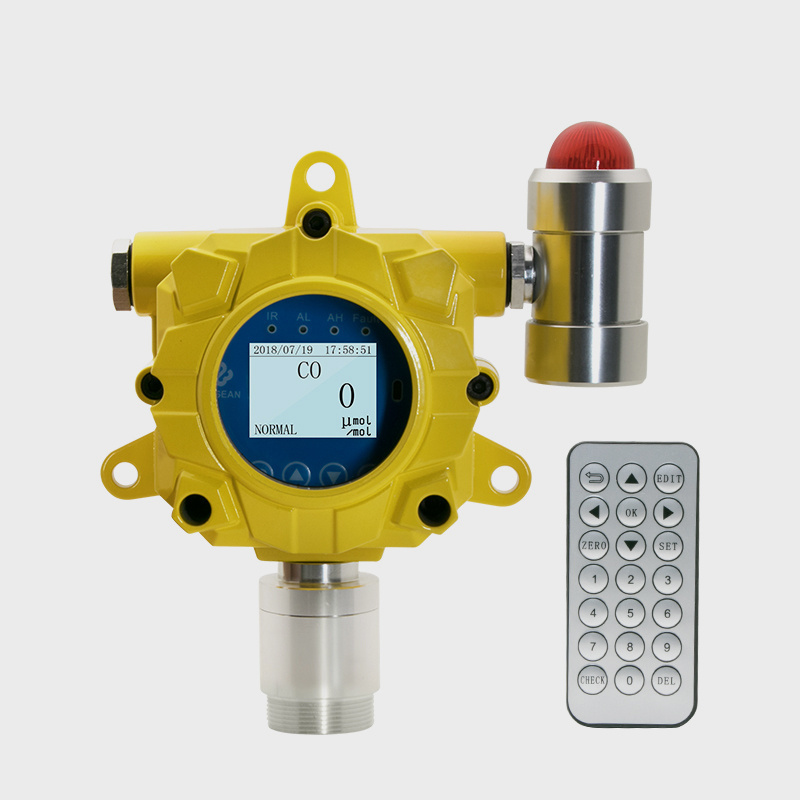

K-G60 Remote Control Fixed Gas Detector
|
|
Explosion proof grade
|
Exd ⅡC T6 Gb
|
|
Response time
|
<30S
|
|
Power supply
|
DC24V±15%
|
|
Working temperature
|
-20℃~50℃
|
|
Output current
|
4-20mA
|
|
Working humidity
|
0-95%RH (no dew)
|
|
Contact output
|
Free contact output, max power 1kW
|
|
Single input
|
4~20mA and RS485
|
|
Installation method
|
Wall-mounted
|
|
Shell material
|
Aluminum
|
|
Dimensions
|
190*150*95mm(L*W*H)
|
click to see more
Application Area
Fixed gas detector is widely applied to industrial use, such as Shipping, Mining, Oil & Gas, Metallurgy, Chemical plants, Underground pipeline, gas station, wastewater plants, Landfill ,etc.
Detecting Gas
|
No
|
Detecting Gas
|
Gas
|
Measure Range
|
Resolution
|
Alarm Point
(High / Low)
|
|
1
|
Combustible Gas
|
EX
|
0-100%LEL /0-100%VOL
|
1%LEL/1%VOL
|
20 / 50% LEL
|
|
2
|
Oxygen
|
O2
|
0-25% /30%VOL
|
0.1%VOL
|
19.5% / 23.5%VOL
|
|
3
|
Hydrogen Sulfide
|
H2S
|
0-50/100/200/1000 ppm
|
0.1 ppm
|
10 / 20 ppm
|
|
4
|
Carbon Monoxide
|
CO
|
0-500/1000/2000/5000 ppm
|
1 ppm
|
50 / 150 ppm
|
|
5
|
Nitrogen Dioxide
|
NO2
|
0-20/50/1000 ppm
|
0.1 ppm
|
5 / 10 ppm
|
|
6
|
Nitric Oxide
|
NO
|
0-250/500/1000 ppm
|
1 ppm
|
50 / 150 ppm
|
|
7
|
Carbon Dioxide
|
CO2
|
0-5000 ppm /0-1%/5%/10%VOL
|
1 ppm/0.1%VOL
|
1000 /2000 ppm
|
|
8
|
Sulfur Dioxide
|
SO2
|
0-20/50/100/200/1000 ppm
|
0.1 /1 ppm
|
5 / 10 ppm
|
|
9
|
Chlorine
|
CL2
|
0-20/100/1000 ppm
|
0.1 ppm
|
5 / 10 ppm
|
|
10
|
Ammonia
|
NH3
|
0-50/100/500/1000 ppm
|
0.1 ppm
|
20 / 50 ppm
|
|
11
|
Hydrogen
|
H2
|
0-1000/5000 ppm
|
1 ppm
|
50 /150 ppm
|
|
12
|
Phosphine
|
PH3
|
0-5/20/50/100/500/1000 ppm
|
0.1 ppm
|
5 / 10 ppm
|
|
13
|
Hydrogen Chloride
|
HCL
|
0-20/500/1000 ppm
|
0.01/0.1 ppm
|
5 / 10 ppm
|
|
14
|
Chlorine Dioxide
|
CLO2
|
0-10/50/100 ppm
|
0.1 ppm
|
5 / 10 ppm
|
|
15
|
Hydrogen Cyanide
|
HCN
|
0-50/100 ppm
|
0.01/0.1 ppm
|
10 / 20 ppm
|
|
16
|
Ethylene Oxide
|
C2H4O
|
0-10/20/50/100/200/500 ppm
|
0.1 /1 ppm
|
20 / 50 ppm
|
|
17
|
Ozone
|
O3
|
0-10/20/100 ppm
|
0.1 ppm
|
2 / 5 ppm
|
|
18
|
Formaldehyde
|
CH2O
|
0-20/50/100 ppm
|
0.1 /1 ppm
|
5 / 10 ppm
|
|
19
|
Hydrogen Fluoride
|
HF
|
0-1/10/50/100 ppm
|
0.01 /0.1 ppm
|
2 / 5 ppm
|
|
20
|
Methylbenzene
|
|
0-1/10/20/50/100 ppm
|
0.01 /0.1 ppm
|
5 / 10 ppm
|
About Bosean
Our Business
Bosean was founded in 2013, specialize in the development and production of gas detectors, gas analyzers and laser rangefinder. At present, our research and development instruments have been spread all over the world.
R&D and Production
We has an independent manufacture base more than 10000 square meter , always strictly implemented the ISO9001 quality management system.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
Warehousing Logistics
We has an independent warehousing base. It integrates instrument research and development, manufacturing, warehousing and delivery. It supports small batch spot delivery and mass customization.
Support OEM and ODM
patent certificate and customers
Why Choose us ?
-
We are China Leading cl2 gas detector Manufacturer.
- Alibaba Assessed Gold Supplier.
- Inspected by the Inspection Institution of Bureau Veritas Certification.
- 100% QC inspection Before Shipping.
- Cases in many countries.
